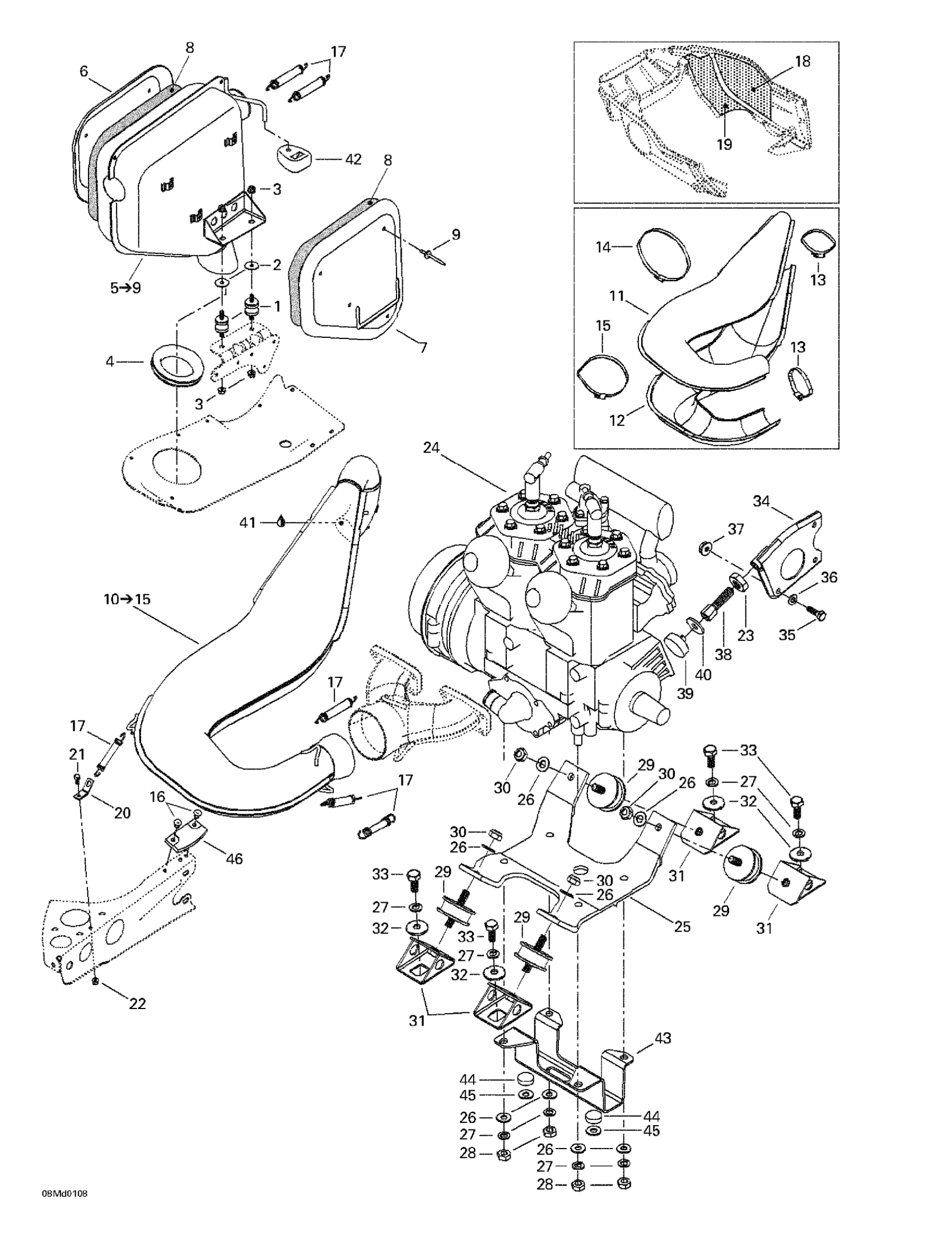

Ski-Doo MX Z X 440 LC, 2001 01- Engine Support And Muffler Diagram

#

Description
Price

1

Rubber Mount

514052994

Unavailable

2

Insulated Washer

514052891

Unavailable

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

5

Muffler Ass'y | Includes 5 - 9.

514053226

Unavailable

6

RH Heat Shield

514051700

Unavailable

7

LH Heat Shield

514052960

Unavailable

8

Insulating Wool R.H

514051900

Unavailable

Insulating Wool L.H

514052961

Unavailable

9

Pop Rivet 3/16”

390910000

$0.57

10

Tuned Pipe Ass'y | Includes 10 - 15.

514052847

Unavailable

11

Upper Envelope

514052938

Unavailable

12

Lower Enveloppe

514052985

Unavailable

13

Norma Clamp

514052860

Unavailable

14

Gear Clamp (Norma)

514052861

$8.29

15

Norma Gear Clamp

514052983

$15.89

16

Pop Rivet 3/16"

390406500

$0.88

17

Spring

415107100

$6.35

18

Reflective Sheet

514052718

Unavailable

19

Reflective Sheet

514052719

Unavailable

20

Spring Bracket

514053026

Unavailable

21

Hex. Screw M5 X 12

207151244

$0.90

22

Hex. Flange Elastic Nut M5

233251414

$1.04

23

Nut Hexagonal RH.

232026414

$1.48

24

<<453>> Engine

400409421

Unavailable

25

Engine Support

512059064

Unavailable

26

Flat Washer 10 mm

234001410

$1.26

27

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

28

Hex. Nut M10 X 1.5

232006414

$1.37

29

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

30

Elastic Locking Nut M10 X 1.5

233601416

$1.69

31

Engine Support

512050900

Unavailable

32

Lock Washer

512056700

$3.17

33

Hex. Screw M10 X 25

207102544

$1.37

34

Support Plate

512058500

Unavailable

35

Hex. Screw M8 X 20

207182044

$0.74

36

Flat Washer 8 mm

234081410

$0.83

37

Hex. Elastic Stop Nut M8

232581414

$0.56

38

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

39

Stopper

512059056

Unavailable

40

WASHER - Call your local BRP dealership

512059057

Unavailable

41

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

42

RUBBER BUMPER - Call your local BRP dealership

514052704

Unavailable

43

Engine Support Extension

512059242

Unavailable

44

STOPPER - Call your local BRP dealership

512059055

Unavailable

45

Washer

512059058

Unavailable

46

Rubber Pad

570044100

Unavailable
