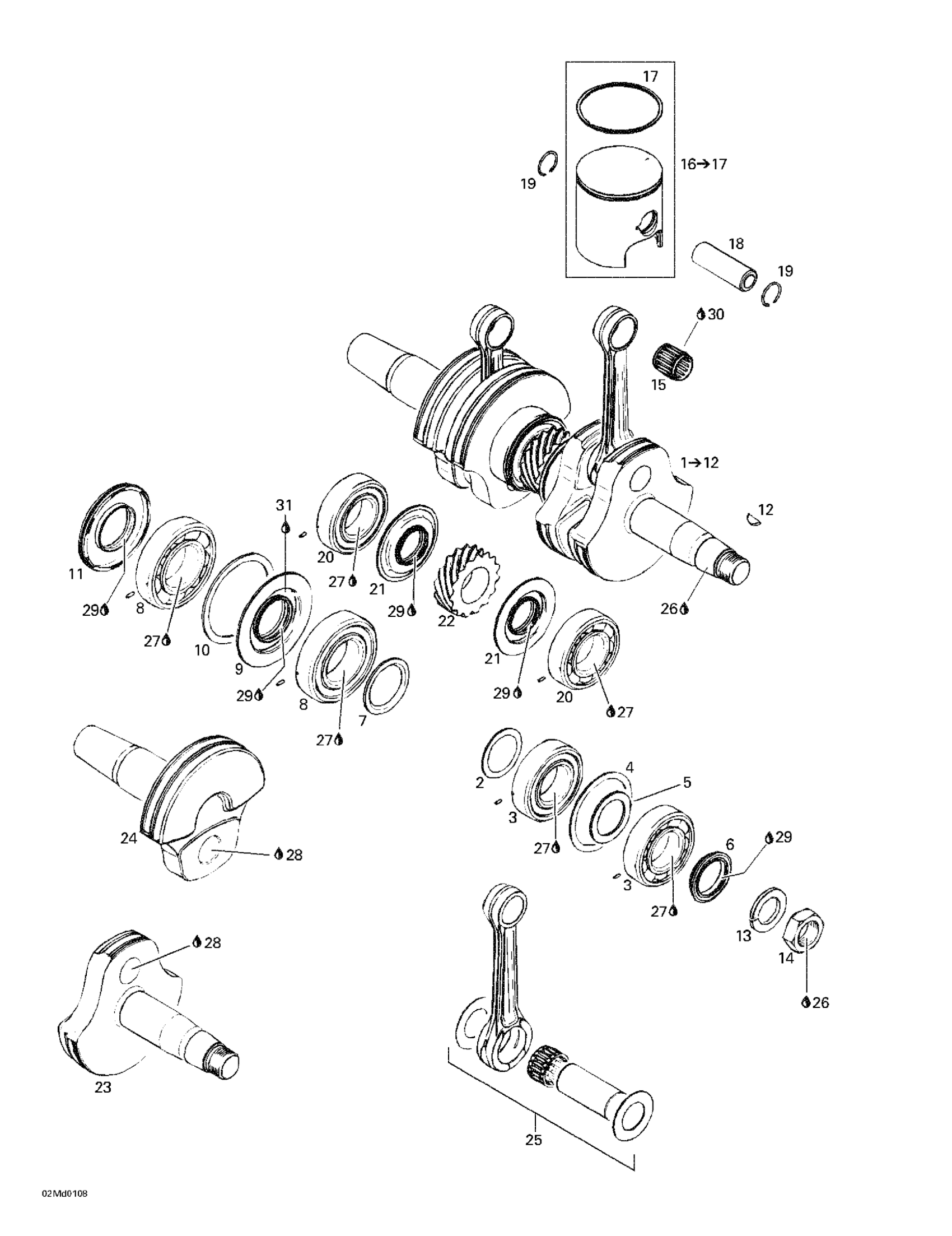

Ski-Doo MX Z X 440 LC, 2001 01- Crankshaft And Pistons Diagram

#

Description
Price

1

CRANKSHAFT - Call your local BRP dealership | Includes 1 to 12

420888257

Unavailable

2

DISTANCE RING - Call your local BRP dealership

420827445

Unavailable

3

Ball Bearing 6206

420832590

$48.49

4

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

5

ADJUSTMENT WASHER - Call your local BRP dealership

420427684

Unavailable

6

Oil Seal

420931795

$17.63

7

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

8

Ball Bearing 6207 | With drive pin

420832575

$52.99

9

Oil Seal

420931455

$35.99

10

Retaining Disk

420927710

$7.41

11

Oil Seal This part replaces 290831952.

420831952

$18.01

12

Woodruff Key

420246015

$3.17

13

Lock Washer, 22 mm

420945759

$1.90

14

Hex. Nut, M22 X 1.5

420842239

$17.53

15

Needle Bearing

420832439

Unavailable

16

Piston Ass'y (1 Ring 64,88 mm) | Includes 16 - 17.

420888331

Unavailable

17

SEMI-TRAPEZ RING - Call your local BRP dealership

420815145

Unavailable

18

PISTON PIN - Call your local BRP dealership

420916136

Unavailable

19

Piston Circlip

420945735

$4.46

20

Ball Bearing 6206

420832590

$48.49

21

Oil Seal | Included in gasket kit

420931940

$30.49

22

Central Gear, 15 Teeth

420834350

$104.99

23

CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.

420818665

Unavailable

24

CRANKSHAFT, MAG - Call your local BRP dealership

420818694

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

26

Loctite 243, 10 ml

293800060

$21.49

27

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

28

Sealant Loctite 648

219703000

$45.99

29

Petamo Grease, GHY133N, 400 g

420899271

$67.99

30

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

31

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
