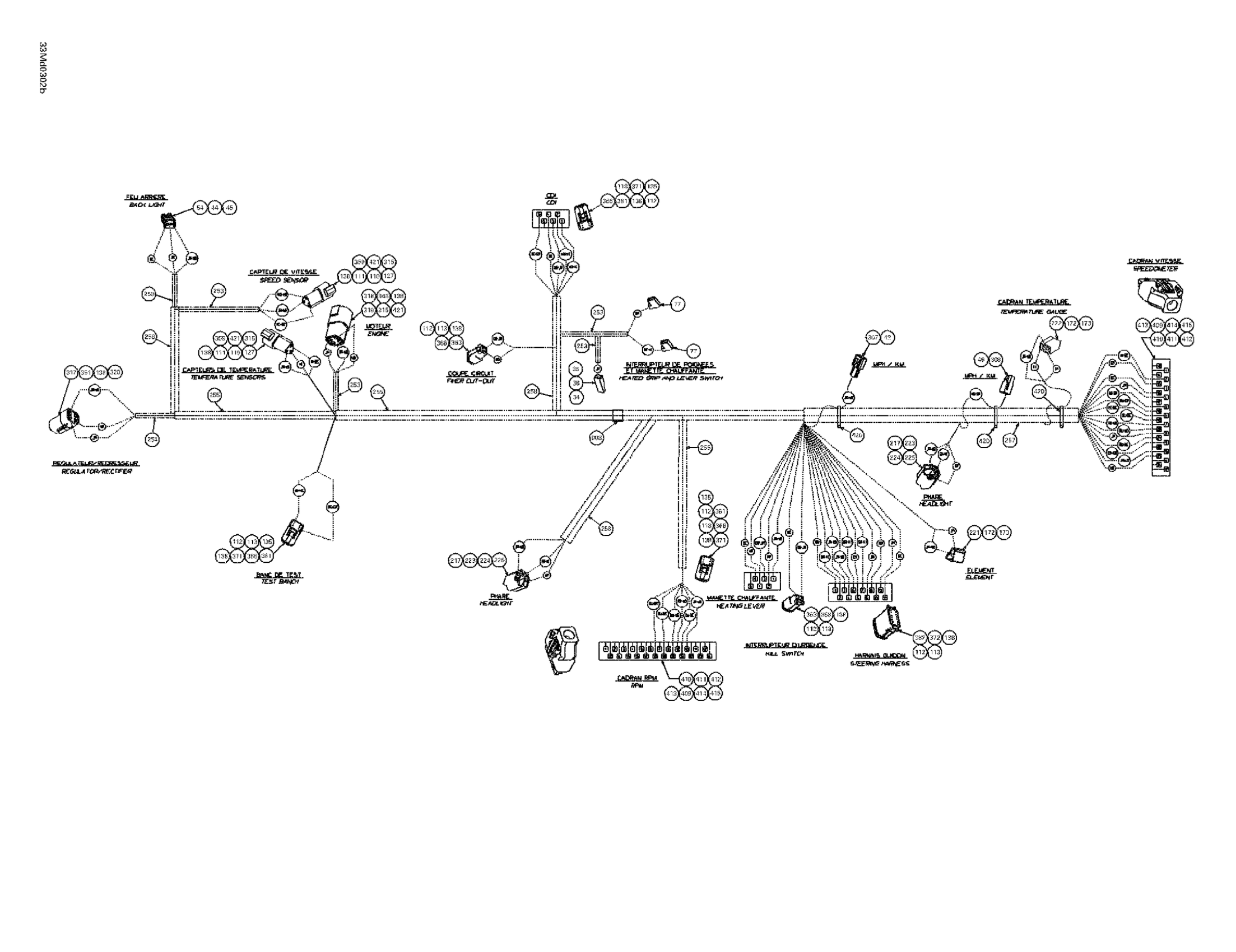

Ski-Doo MX Z X 440, 2003 Frame Harness Diagram

#

Description
Price

1

Frame harness | Includes 1 - 421.

515175894

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

34

Female Terminal

409010100

$5.61

35

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

36

Female Terminal Housing, 1 Circuit

409010400

$7.62

42

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

44

Female Terminal

515175231

$4.39

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Female Terminal

515175282

$7.86

54

Female Housing, 3 Circuits

515175495

$16.18

77

Female Terminal

409010300

$4.39

110

Male Terminal

278000631

$4.39

111

Male Terminal

515175823

$4.55

112

Female Terminal

278000632

$2.09

113

Speed Sensor | Includes 17

278000276

Unavailable

127

Male Lock, 3 Circuits

409207600

$3.19

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

138

Sealing Cap

293000052

$3.19

172

Female Terminal

561503100

$2.41

173

Female Terminal

561503100

$2.41

217

FEMALE TERMINAL - Call your local BRP dealership

409011500

Unavailable

221

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

222

Female Housing

409204300

Unavailable

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

224

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

258

Tubing 10 MM 1000MM Long

219704407

$2.79

307

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

308

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

315

Clip

270000141

$11.49

317

Female Terminal Housing, 4 Circuits

278001473

$26.99

318

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

319

Male Terminal

515175568

$9.12

320

Female Terminal

515175567

$7.69

346

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

351

Female Lock, 4 Circuits

278001474

$3.49

359

Male Housing

515175666

$15.49

363

Female Terminal Housing, 2 Circuits

515175670

$8.39

366

Male Housing, 6 Circuits

515175673

$15.49

368

Female Lock, 2 Circuits

515175675

$4.55

371

Male Wedge, 6 Circuits

515175678

$5.39

372

Not Available As Spare Part - Friction Washer

Unavailable

381

Femele Lock

515175705

Unavailable

382

FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership

515175704

Unavailable

409

Plug

515175812

$2.19

410

Female Housing, 24 Circuits

515175801

$9.59

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$2.99

413

BLOCK - Call your local BRP dealership

515175804

Unavailable

414

LOCK - Call your local BRP dealership

515175805

Unavailable

415

Female Terminal

515175806

$0.99

420

Tie-Rap 180 mm

414115200

$0.11

421

Clip

515175821

$10.99
