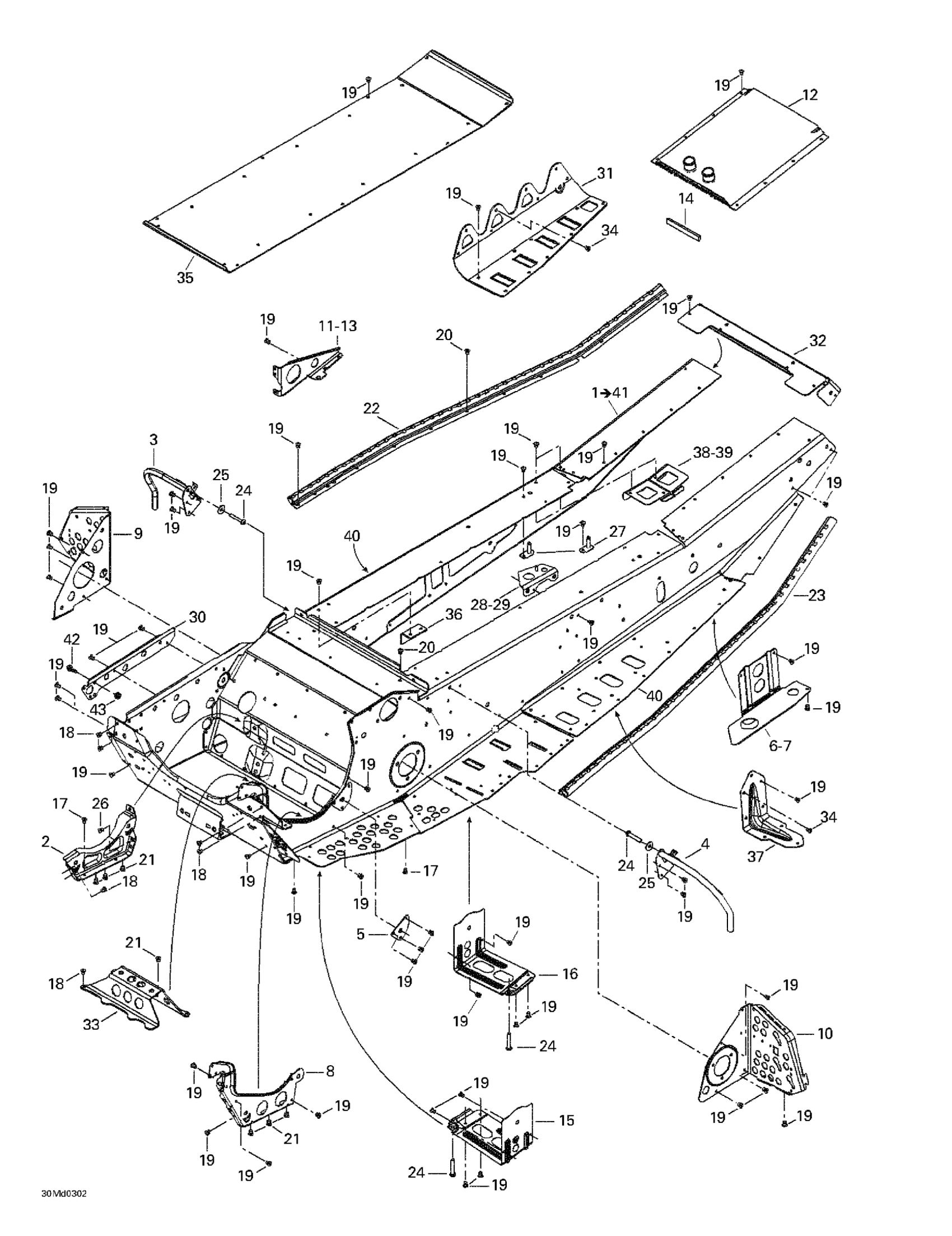

Ski-Doo MX Z X 440, 2003 09- Frame Diagram
#
Description
Price
1
Frame ass'y | Includes 1 - 41.
415128559
Unavailable
2
ENGINE SUPPORT, BLACK - Call your local BRP dealership
518323346
Unavailable
3
RH Toe Hold Support
518322180
Unavailable
4
LH Toe Hold Support
518322181
Unavailable
5
OUTER REINFORCEMENT - Call your local BRP dealership
518323507
Unavailable
6
RH Suspension Bracket, Black
518322666
Unavailable
7
LH Suspension Bracket, Black
518322667
Unavailable
8
INNER REINFORCEMENT, BLACK - Call your local BRP dealership
518323241
Unavailable
9
RH Footrest Reinforcement
518323244
Unavailable
10
LH Footrest Reinforcement
518323245
Unavailable
11
RH BRACKET - Call your local BRP dealership
518323187
Unavailable
12
Rear radiator
518323329
Unavailable
13
LH BRACKET - Call your local BRP dealership
518323188
Unavailable
15
RH footrest reinforcement
518323369
Unavailable
16
LH footrest reinforcement
518323370
Unavailable
21
HENROB RIVET - Call your local BRP dealership
390910300
Unavailable
22
RH Roller
518323310
Unavailable
23
LH Roller
518323311
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
27
Tank Bracket
518322791
Unavailable
28
RH Frame Reinforcement, Black
518323336
Unavailable
29
LH Frame Reinforcement, Black
518323337
Unavailable
30
Stiffener
518323566
Unavailable
31
RH Tunnel Liner
518323334
Unavailable
LH Tunnel Liner
518323335
Unavailable
32
Rear cap
518322938
Unavailable
33
Cross-Link
518322939
Unavailable
35
Center Plate
518323323
Unavailable
36
Tunnel Reinforcement
518323185
Unavailable
37
CENTER REINFORCEMENT - Call your local BRP dealership
518323578
Unavailable
38
RH frame reinforcement
518322959
Unavailable
39
LH frame reinforcement
518322960
Unavailable
40
RH Footrest
518323332
Unavailable
41
LH Footrest
518323333
Unavailable
