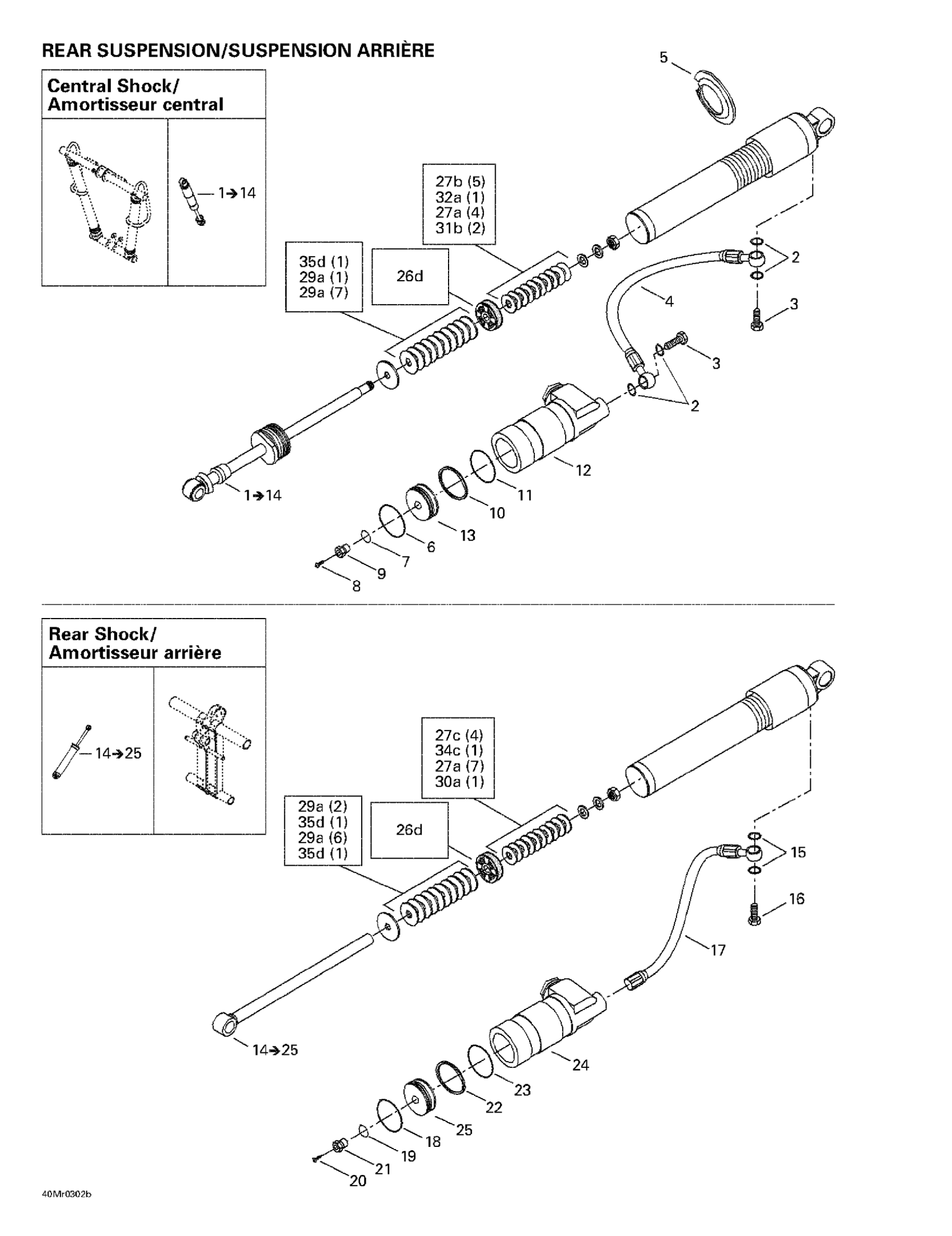

Ski-Doo MX Z X 440, 2003 Rear Take Apart Shocks Diagram
#
1
Center Shock
503189972
Unavailable
4
HOSE ASS'Y - Call your local BRP dealership
415128595
Unavailable
5
SPRING COLLAR - Call your local BRP dealership
415128598
Unavailable
12
RESERVOIR - Call your local BRP dealership
415128596
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Rear Shock
503189974
Unavailable
17
HOSE ASS'Y - Call your local BRP dealership
415128593
Unavailable
24
RESERVOIR - Call your local BRP dealership
415128594
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
26A
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
26B
Piston (2 X 0.3-4) (C36)
414888306
Unavailable
26C
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
26D
Not Available As Spare Part - Friction Washer
Unavailable
26E
Piston (C36)
414888304
Unavailable
27A
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
27B
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
27C
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
28A
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
28B
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
29A
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
29B
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
29C
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
30A
Not Available As Spare Part - Friction Washer
Unavailable
31A
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
31B
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
32A
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
33A
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
33B
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
33C
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
34A
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
34B
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
34C
Not Available As Spare Part - Friction Washer
Unavailable
35A
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
35B
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
35C
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
35D
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
36A
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
36B
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
36C
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
36D
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
37A
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
37B
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
37C
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
37D
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
