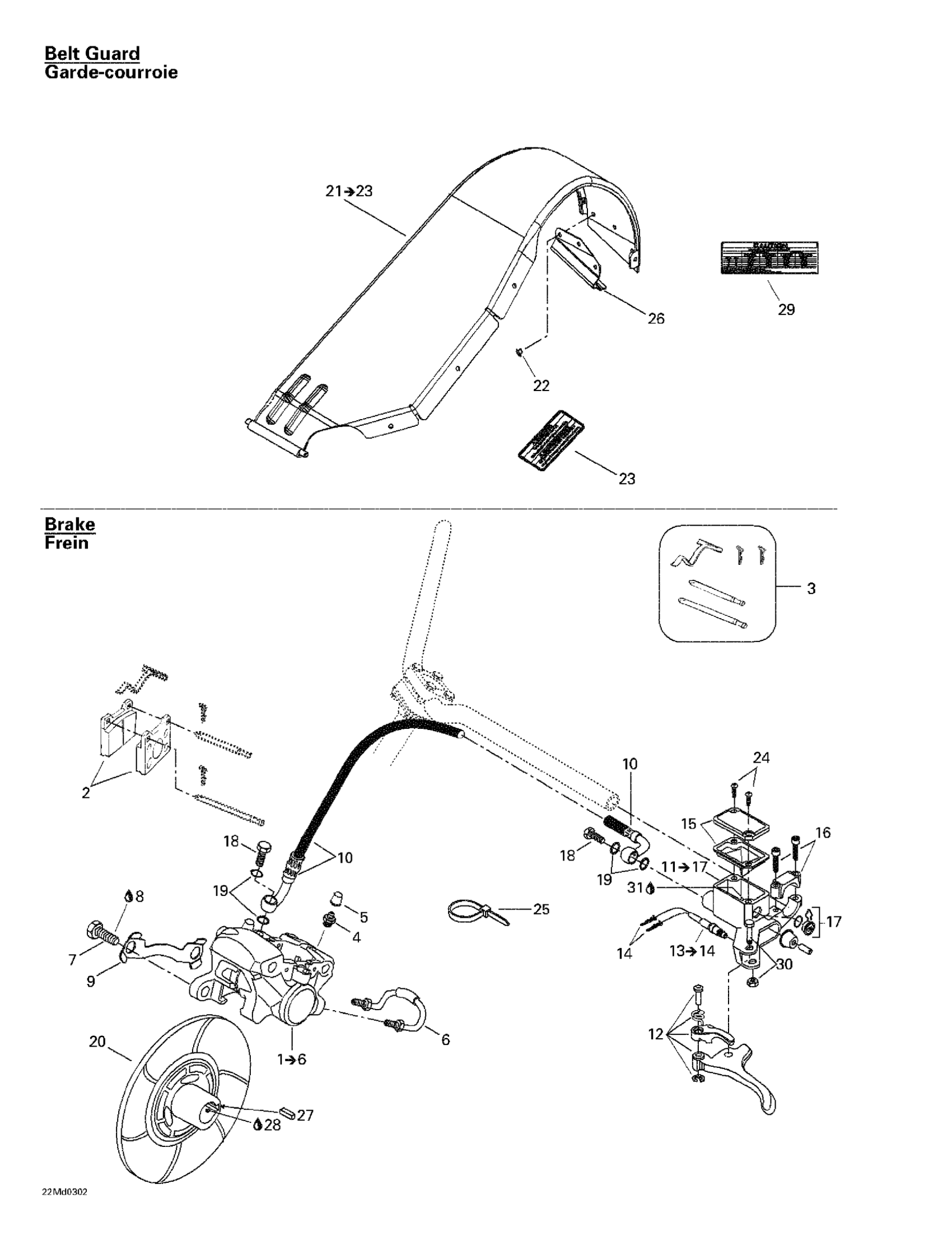

Ski-Doo MX Z X 440, 2003 Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Caliper | Includes 1 to 6

507032353

Unavailable

2

Brake Pad Kit

415084600

$79.49

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Hex. Screw M10 X 35

207103544

$1.58

8

Loctite 243, 10 ml

293800060

$21.49

9

LOCKING TAB - Call your local BRP dealership

507032316

Unavailable

10

HOSE - Call your local BRP dealership

507032291

Unavailable

11

Master Cylinder | Includes 10 to 16

507032362

Unavailable

12

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

Unavailable

13

Microswitch

507032366

$98.99

14

Male Terminal

515175232

$1.58

15

Cap

415029900

$41.49

16

Clamp And Screw Kit

507032477

$23.99

17

WINDOW - Call your local BRP dealership

414990600

Unavailable

18

Banjo Bolt

414920500

$8.68

19

Washer

414920600

$1.90

20

Brake Disk Ass'y

507032363

Unavailable

21

BELT GUARD - Call your local BRP dealership

417300213

Unavailable

22

Pop Rivet 3/16"

390402200

$0.35

23

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

24

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

25

Tie Wrap 142 mm

293750002

$1.25

26

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

27

KEY - Call your local BRP dealership

507021300

Unavailable

28

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

29

Warning Decal

516001740

Unavailable

30

Pin Ass'y

415030000

$19.99

31

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99
