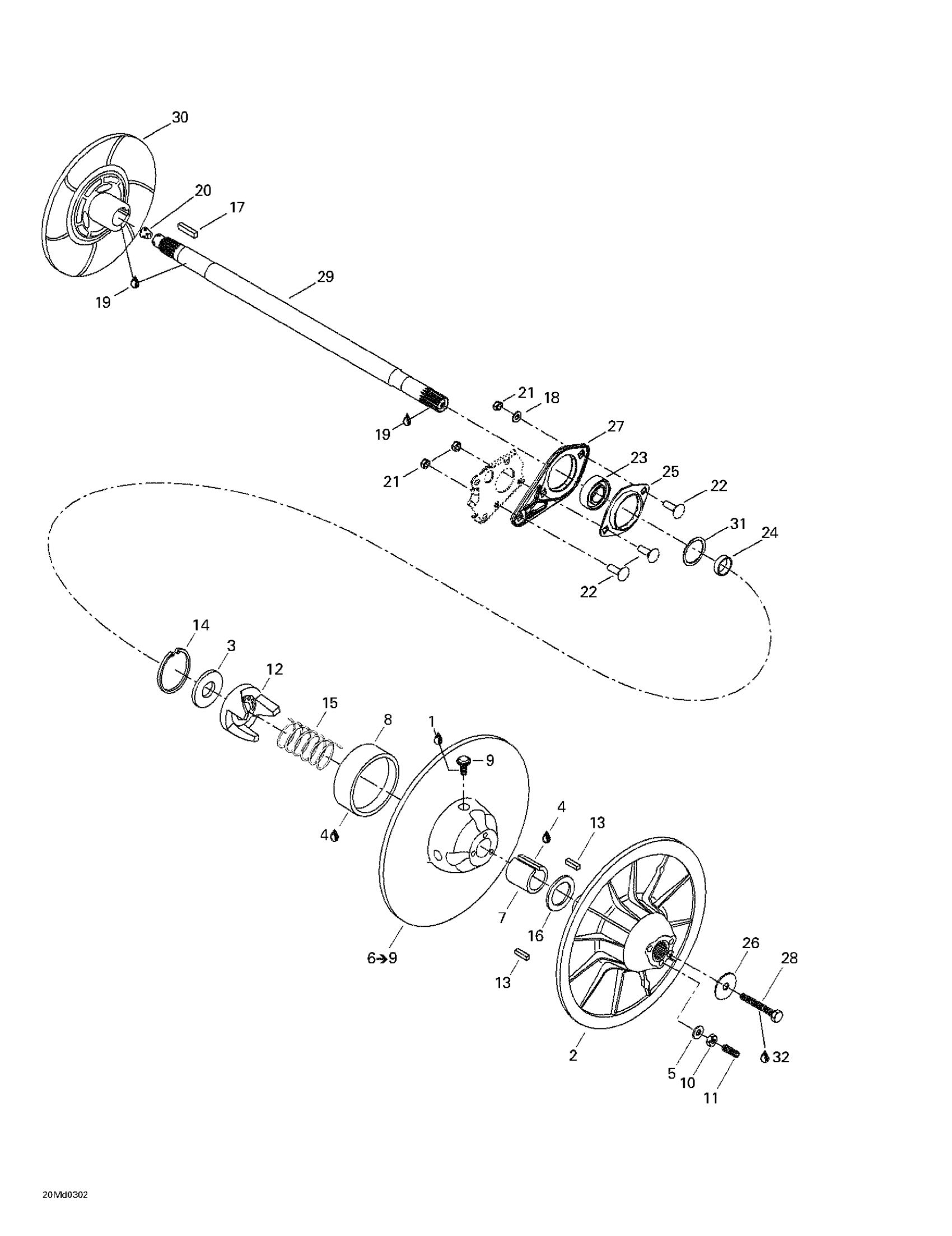

Ski-Doo MX Z X 440, 2003 05- Driven Pulley Diagram
#
Description
Price
2
Fixed Flange Ass'y
417126478
Unavailable
3
Washer
504141800
Unavailable
5
WASHER - Call your local BRP dealership
420245370
Unavailable
6
Sliding Flange Ass'y | Includes 6 - 9.
417126739
Unavailable
7
CUSHION - Call your local BRP dealership
417126515
Unavailable
8
Cushion
417126514
Unavailable
9
Roller
417126601
Unavailable
11
Socket Set Screw M6 X 30
206263044
Unavailable
12
CAM 53/47 DEG - Call your local BRP dealership
417126737
Unavailable
13
Key
414820800
Unavailable
14
CIRCLIP - Call your local BRP dealership
371903100
Unavailable
15
RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige
414558900
Unavailable
16
Thrust Washer
504141900
Unavailable
17
KEY - Call your local BRP dealership
507021300
Unavailable
19
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
20
CORK - Call your local BRP dealership
414784800
Unavailable
24
SPACER - Call your local BRP dealership
417126302
Unavailable
25
BEARING HOUSING ASS'Y - Call your local BRP dealership
504153089
Unavailable
27
SPACER - Call your local BRP dealership
504151968
Unavailable
28
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
29
COUNTER SHAFT - Call your local BRP dealership
504152020
Unavailable
30
Brake Disk Ass'y
507032363
Unavailable
