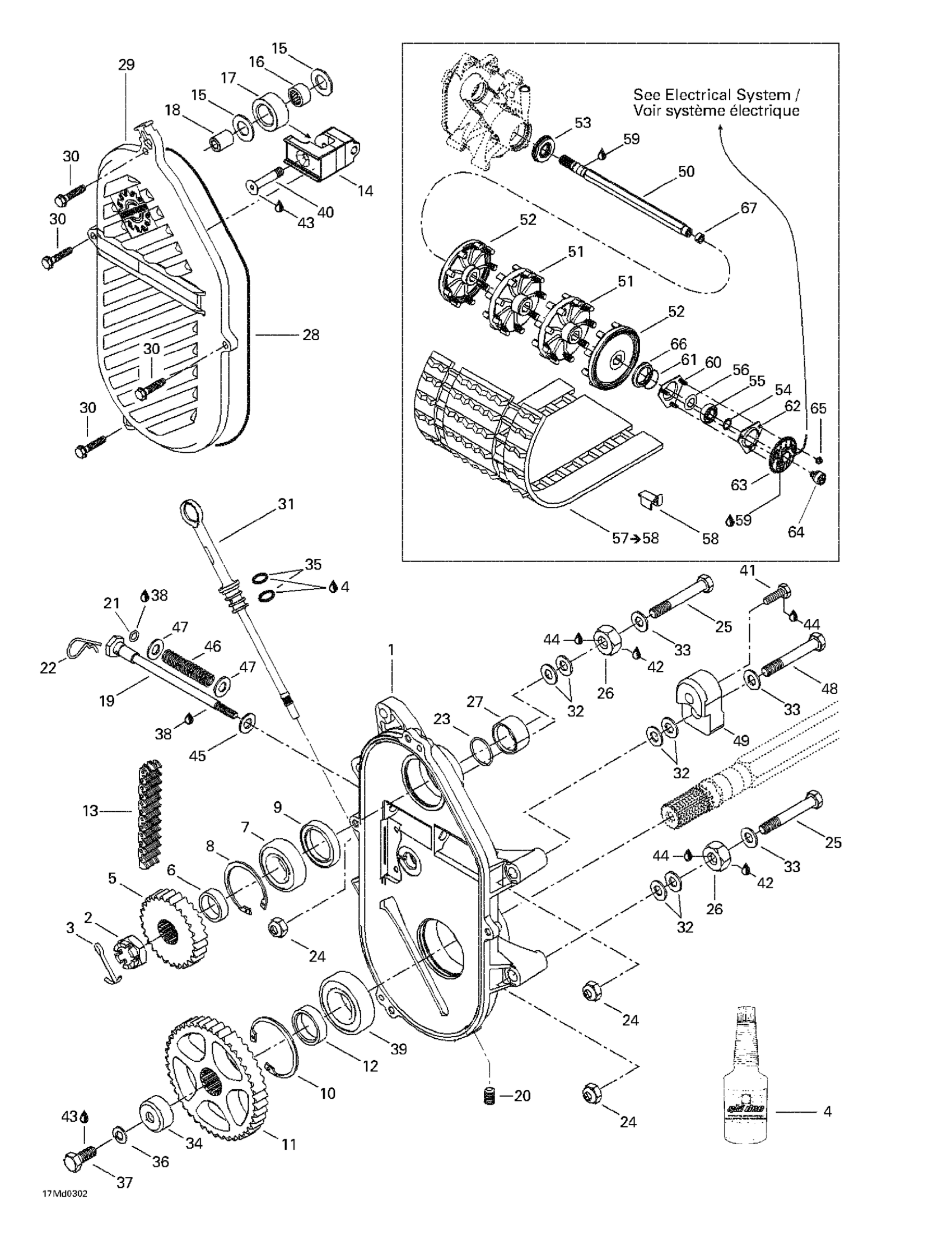

Ski-Doo MX Z X 440, 2003 05- Drive System Diagram
#
1
Chaincase
504152086
Unavailable
2
HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership
250000012
Unavailable
3
PIN COTTER - Call your local BRP dealership
371006300
Unavailable
4
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
413803300
Unavailable
5
Sprocket 21 Teeth
504152044
Unavailable
6
Shim
504093400
Unavailable
8
CIRCLIP - Call your local BRP dealership
371901700
Unavailable
10
CIRCLIP, INTERIOR - Call your local BRP dealership
415064300
Unavailable
11
43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe
504148500
Unavailable
12
Shim
504152058
Unavailable
13
Drive Chain Large, (74 Links)
504151910
Unavailable
14
Chain Tensionner
504152083
Unavailable
15
WASHER - Call your local BRP dealership
504080300
Unavailable
16
NEEDLE BEARING - Call your local BRP dealership
405403000
Unavailable
17
ROLLER - Call your local BRP dealership
414531300
Unavailable
18
SPACER - Call your local BRP dealership
504080200
Unavailable
19
Adjustment Screw
504151946
Unavailable
21
O-RING - Call your local BRP dealership
504151954
Unavailable
23
O-RING - Call your local BRP dealership
414876700
Unavailable
25
Hex. Screw M10 X 75
207107544
Unavailable
26
Spacer
504083800
Unavailable
27
SPACER - Call your local BRP dealership
507031500
Unavailable
29
CHAINCASE COVER - Call your local BRP dealership
504152471
Unavailable
31
FILLER CAP ASS'Y - Call your local BRP dealership
504151703
Unavailable
32
WASHER - Call your local BRP dealership
504073700
Unavailable
34
CAP - Call your local BRP dealership
504152104
Unavailable
35
O-RING - Call your local BRP dealership
414969400
Unavailable
36
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
38
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
40
SCREW - Call your local BRP dealership
732601144
Unavailable
42
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
46
SPRING - Call your local BRP dealership
504151945
Unavailable
47
HARD WASHER - Call your local BRP dealership | LTD
503125900
Unavailable
48
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
49
SPACER - Call your local BRP dealership
504152106
Unavailable
50
Drive Axle
504152192
Unavailable
51
9-Tooth Sprocket
504151803
Unavailable
52
9-Tooth Half Sprocket
504151834
Unavailable
56
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
57
Track 15" x 121" x 1.625" | Includes 57 - 58.
504152200
Unavailable
59
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
60
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
61
CIRCLIP - Call your local BRP dealership
504152194
Unavailable
62
FLANGE - Call your local BRP dealership
501025000
Unavailable
64
MAGNETIC ADAPTOR - Call your local BRP dealership
504152040
Unavailable
66
Ring Retainer
504152193
Unavailable
67
Adaptor
572097500
