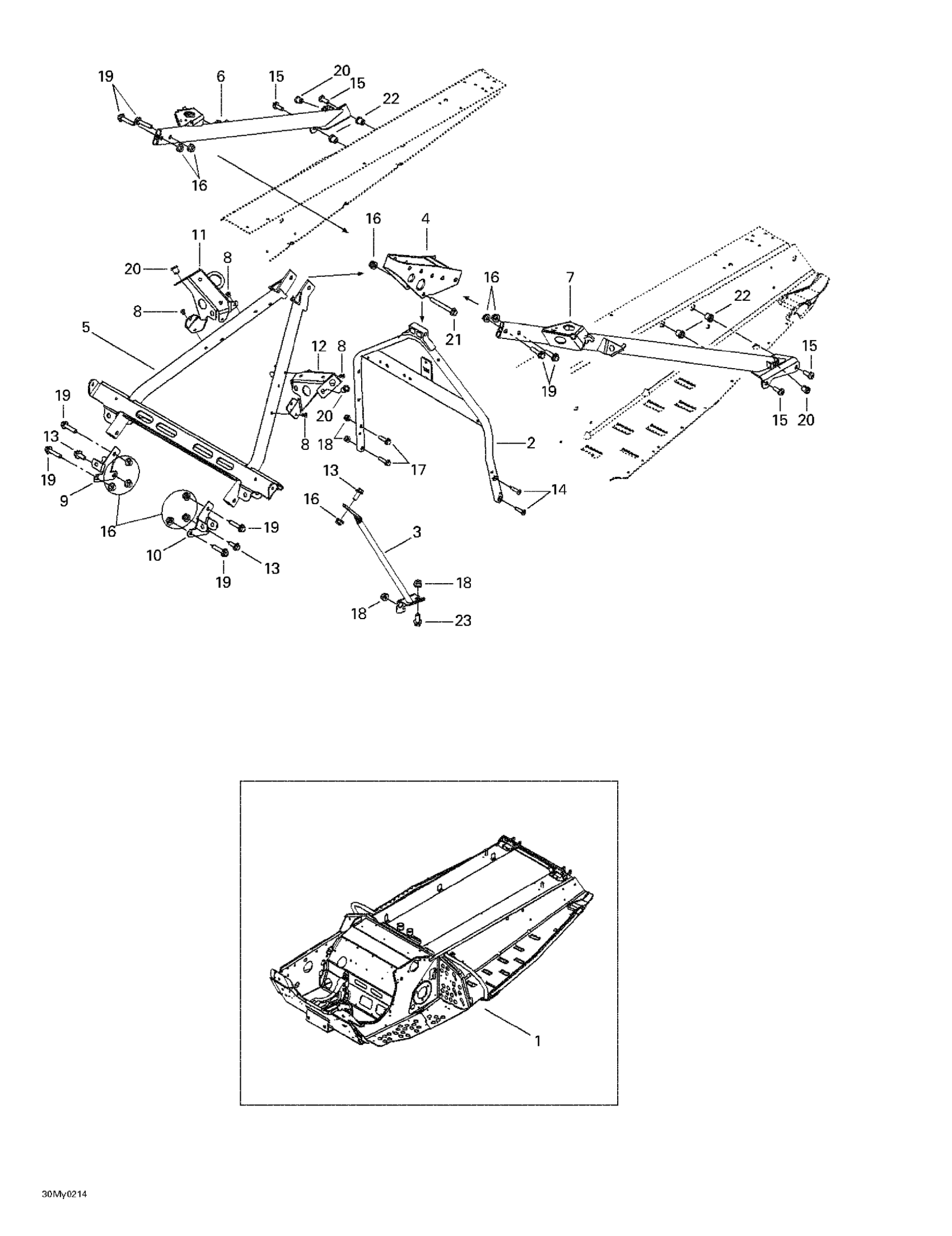

Ski-Doo MX Z 800 Rev, 2002 09- Frame - Steering Support Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 6.

518322148

Unavailable

2

Handle Support

518322463

Unavailable

3

Brace

518322219

Unavailable

4

Bracket

518322546

Unavailable

5

Upper Cross-Member

518322454

Unavailable

6

RH Member

518322466

Unavailable

7

LH Member

518322467

Unavailable

8

Avex Rivet

390909200

$0.30

9

RH SHOCK BRACKET - Call your local BRP dealership

518322461

Unavailable

10

LH SHOCK BRACKET - Call your local BRP dealership

518322462

Unavailable

11

RH Console Support

518322961

Unavailable

12

LH CONSOLE SUPPORT - Call your local BRP dealership

518322962

Unavailable

13

Hex. Flange Screw M8 X 20

207682044

$1.15

14

Socket Head Screw M6 x 25

205862544

Unavailable

15

Hex. Screw M8 X 20

236282084

$1.48

16

Hex. Flange Elastic Nut M8

233281414

$1.47

17

Hex. Flange Screw M6 X 25

207662544

$0.64

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Hex. Flange Screw M8 X 35

207683544

$1.69

20

Insert

293450275

$12.99

21

Hex. Flange Screw M8 X 70

207687044

$7.41

22

Insert

293450166

$4.29

23

Hex. Flange Screw M6 X 20

207662044

$2.00
