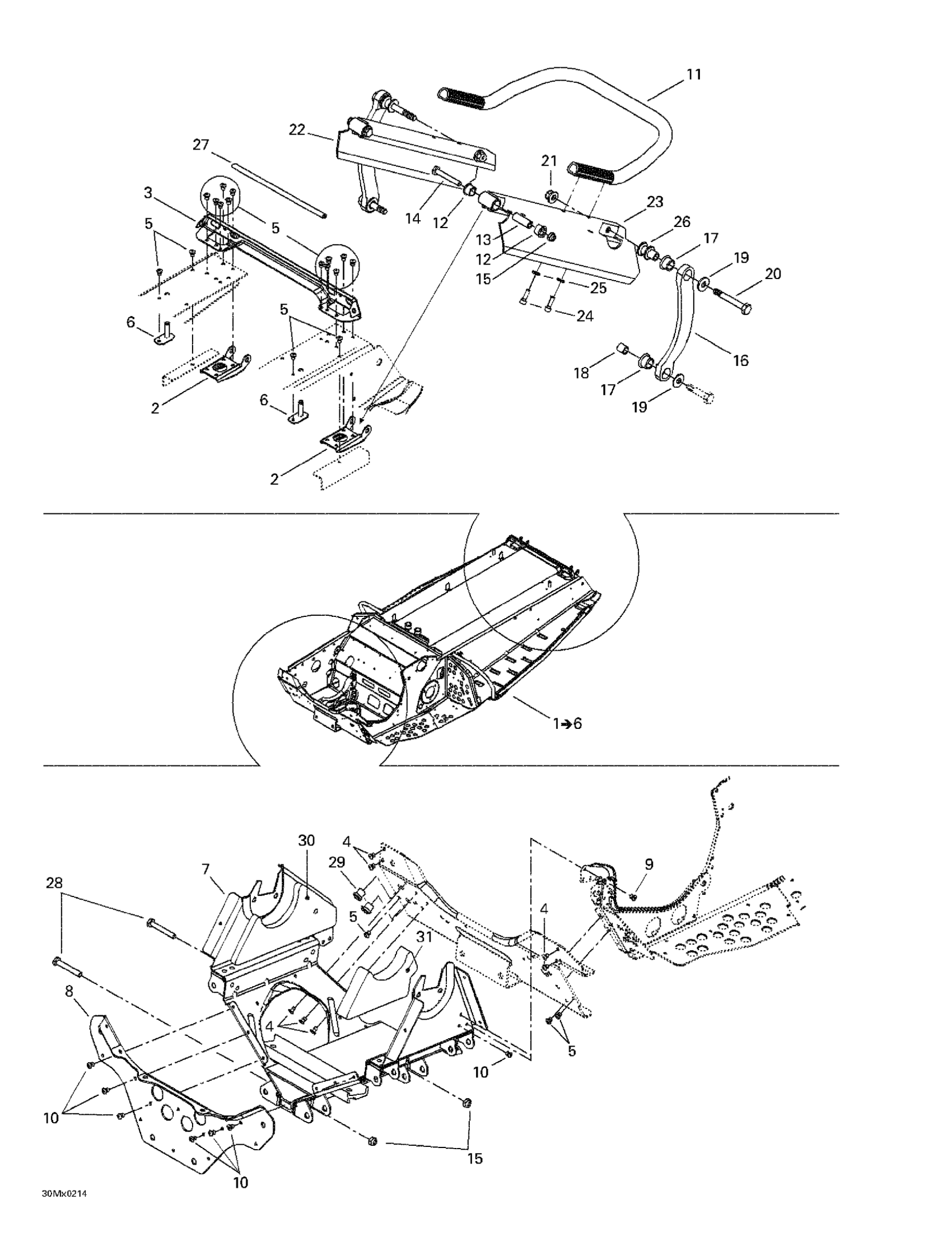

Ski-Doo MX Z 800 Rev, 2002 09- Frame - Front And Rear Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 6.

518322148

Unavailable

2

Rear Pivot

518322253

Unavailable

3

Frame Reinforcement

518322250

Unavailable

4

Avex Rivet

390909100

$0.30

5

Pop Rivet 3/16"

390402200

$0.35

6

Tank Bracket

518322791

Unavailable

7

Cross-member

518322839

Unavailable

8

Front Plate

518322166

Unavailable

9

Hemlock Rivet, 6.5 mm

293150096

$3.27

10

Avex Rivet

390909200

$0.30

11

Rear Bumper

518322370

Unavailable

12

CUSHION - Call your local BRP dealership

520000234

Unavailable

13

BUSHING - Call your local BRP dealership

518322367

Unavailable

14

SOCKET HEAD SCREW M8 X 60 - Call your local BRP dealership

205086044

$2.51

15

Hex. Elastic Stop Nut M8

232581414

$0.56

16

Rod

518322363

Unavailable

17

Urethane Bushing

503189117

$8.19

18

Bushing

518322368

Unavailable

19

WASHER - Call your local BRP dealership

732900051

Unavailable

20

HEX. SCREW M10 X 80 - Call your local BRP dealership

207108044

Unavailable

21

Hex. Flange Elastic Nut M10

233201414

$1.58

22

RH Support

518322369

Unavailable

23

LH Support

518322690

Unavailable

24

Socket Head Screw M6 X 20

205062044

$1.26

25

Flat Washer

224061121

$0.53

26

Spacer

518322682

Unavailable

27

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

28

Hex. Screw M8 X 50

207085044

$1.48

29

Insert

293450166

$4.29

30

Foam

518323006

Unavailable

31

LH FRONT FOAM - Call your local BRP dealership

518323007

Unavailable
