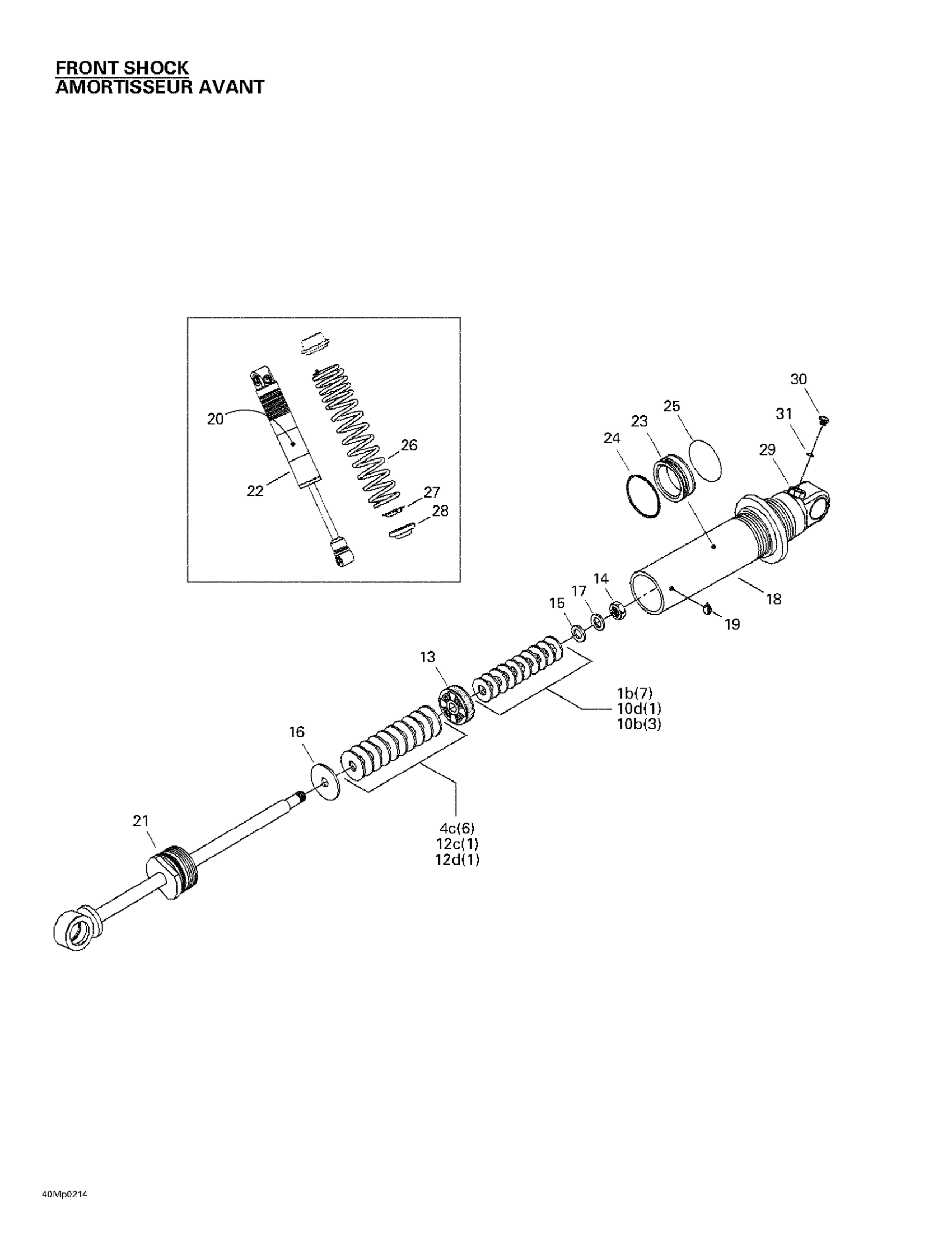

Ski-Doo MX Z 800 Rev, 2002 07- Front Take Apart Shocks Diagram
#
1a
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
1b
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
1c
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
2a
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
2b
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
3a
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
3b
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
3c
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
4a
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
4b
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
5a
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
6a
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
6b
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
6c
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
7a
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
7b
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
8a
Not Available As Spare Part - Friction Washer
Unavailable
9a
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
9b
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
9c
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
9d
Leaf Valve Ø16 X 0.114 (C36)
415083900
Unavailable
10a
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
10b
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
10c
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
10d
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
11a
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
11b
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
11c
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
11d
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
12a
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
12b
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
12c
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
12d
Not Available As Spare Part - Friction Washer
Unavailable
13
Piston (C36)
414888304
Unavailable
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
Piston (2 X 0.3-4) (C36)
414888306
Unavailable
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
20
Shock Decal
516000183
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Front Shock
505070910
Unavailable
23
FREE PISTON - Call your local BRP dealership
503189309
Unavailable
26
Spring | ADRENALINE. EUROPE-ADRENALINE MX Z 500.
505070852
Unavailable
