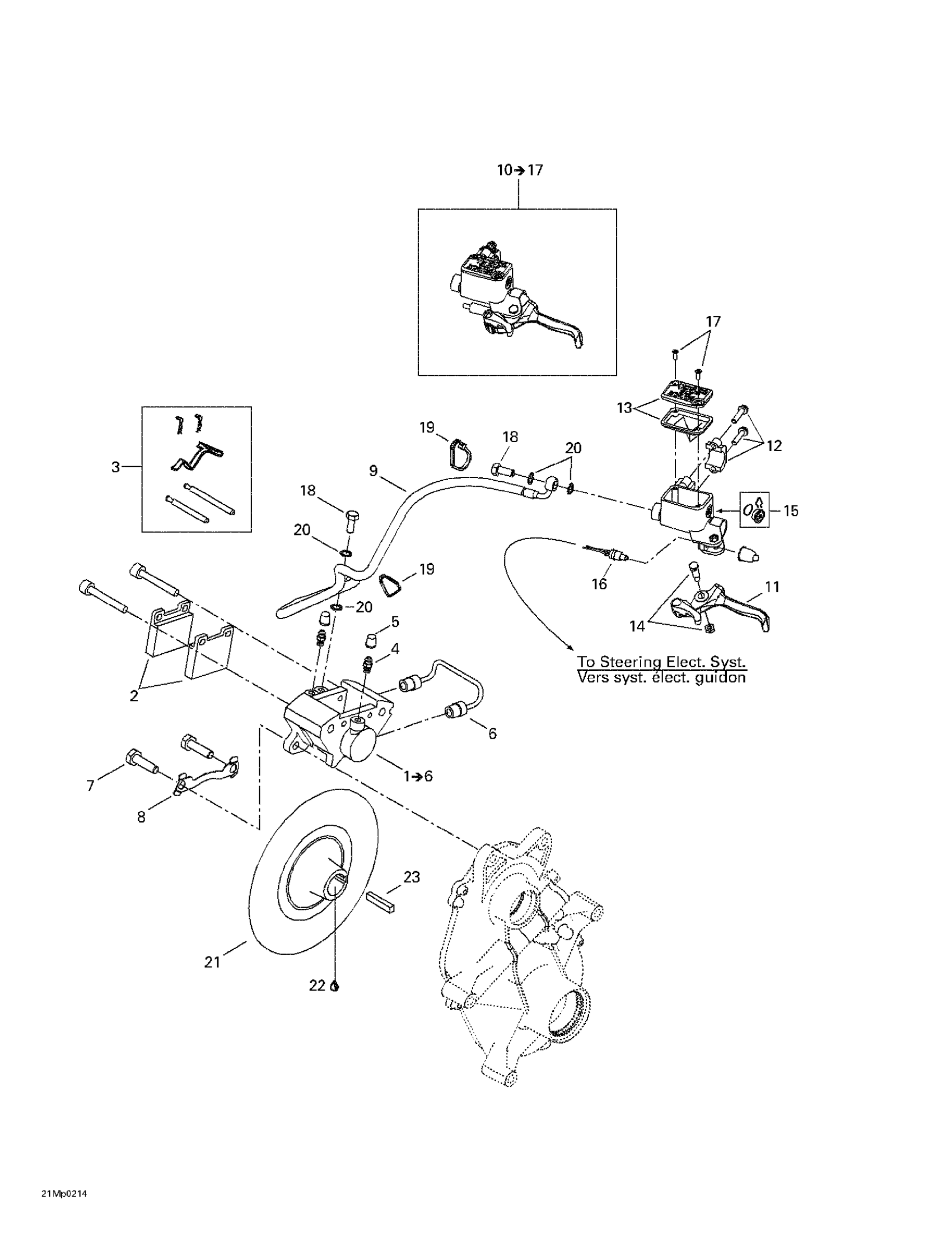

Ski-Doo MX Z 800 Rev, 2002 06- Hydraulic Brake Diagram

#

Description
Price

1

Caliper | Includes Items 1 to 6

507032321

Unavailable

2

Brake Pad Kit

415084600

$79.49

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Hex. Screw M10 X 35

207103544

$1.58

8

LOCKING TAB - Call your local BRP dealership

507032316

Unavailable

9

Hose

507032290

Unavailable

10

Master Cylinder | Includes 10 - 17.

507032309

Unavailable

11

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

Unavailable

12

Clamp

414990400

Unavailable

13

Cap

415029900

$41.49

14

Pin Ass'y

415030000

$19.99

15

WINDOW - Call your local BRP dealership

414990600

Unavailable

16

Microswitch

507032366

$98.99

17

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

18

Banjo Bolt

414920500

$8.68

19

Tie Wrap 94 mm | 4X4

293750001

$1.03

20

Washer

414920600

$1.90

21

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

22

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

23

KEY - Call your local BRP dealership

507021300

Unavailable
