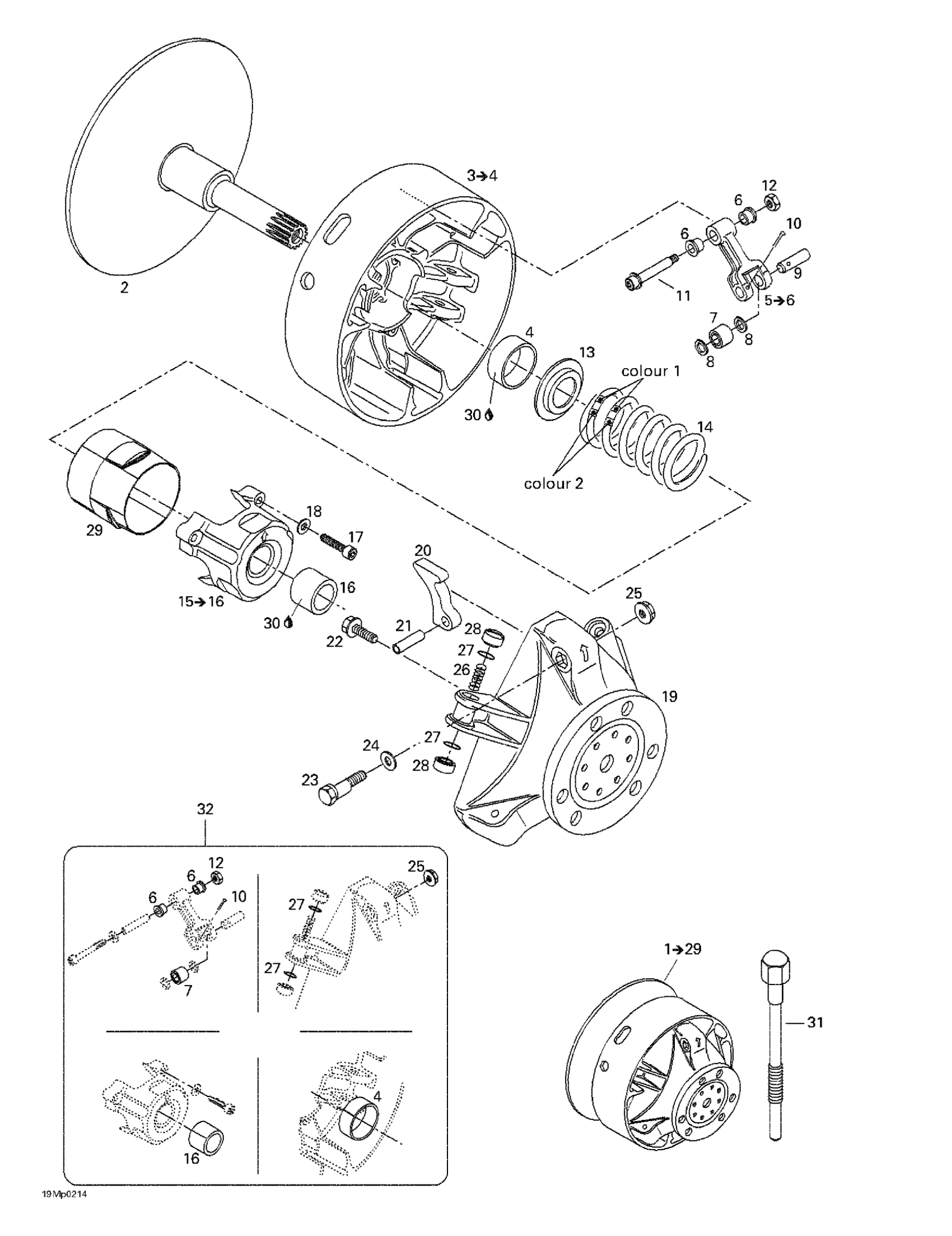

Ski-Doo MX Z 800 Rev, 2002 05- Drive Pulley Diagram

Not Available As Spare Part - Friction Washer

Unavailable

FIXED FLANGE ASSY - Call your local BRP dealership

417222272

Unavailable

Sliding Flange Ass’Y | 800 ADRENALINE MANUEL. 800 ADRENALINE ELECTRIC. 800 RENEGADE MANUEL. 800 RENEGADE ELECTRIC MX Z 800.

417222027

Unavailable

Bushing

417004201

$25.99

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

Bushing

417004305

$11.52

Roller

417222947

$21.99

Stopper Washer

417004302

$15.90

Pin

417004308

$13.99

Cotter Pin

250400060

$2.00

SCREW ASS'Y - Call your local BRP dealership

417222028

Unavailable

Elastic Stop Nut M6

232561414

$0.55

Spring Seat

417222044

Unavailable

Spring, Violet/yellow This part replaces 415128608.

415015300

$43.49

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

Bushing

417004501

$24.99

Socket Head Screw M6 X 40

250000038

$7.59

WASHER - Call your local BRP dealership

420245370

Unavailable

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

RAMP 301 - Call your local BRP dealership | 800 ADRENALINE MANUEL. 800 ADRENALINE ELECTRIC. 800 RENEGADE MANUEL. 800 RENEGADE ELECTRIC MX Z 800.

417222474

Unavailable

Pin M8 X 24

732804009

Unavailable

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

Washer

417005600

$4.09

Hex. Flange Nut M6

233061414

$1.68

Spring

417005700

$4.76

O-Ring

732401030

$0.98

Slider Shoe This part replaces 420460045.

417223021

$5.90

Guard

417222176

Unavailable

Loctite 609, 10 ml

413703100

$26.99

Puller This part replaces 529022400.

529000064

$71.99

Clutch Repair Kit

417006100

$189.99
