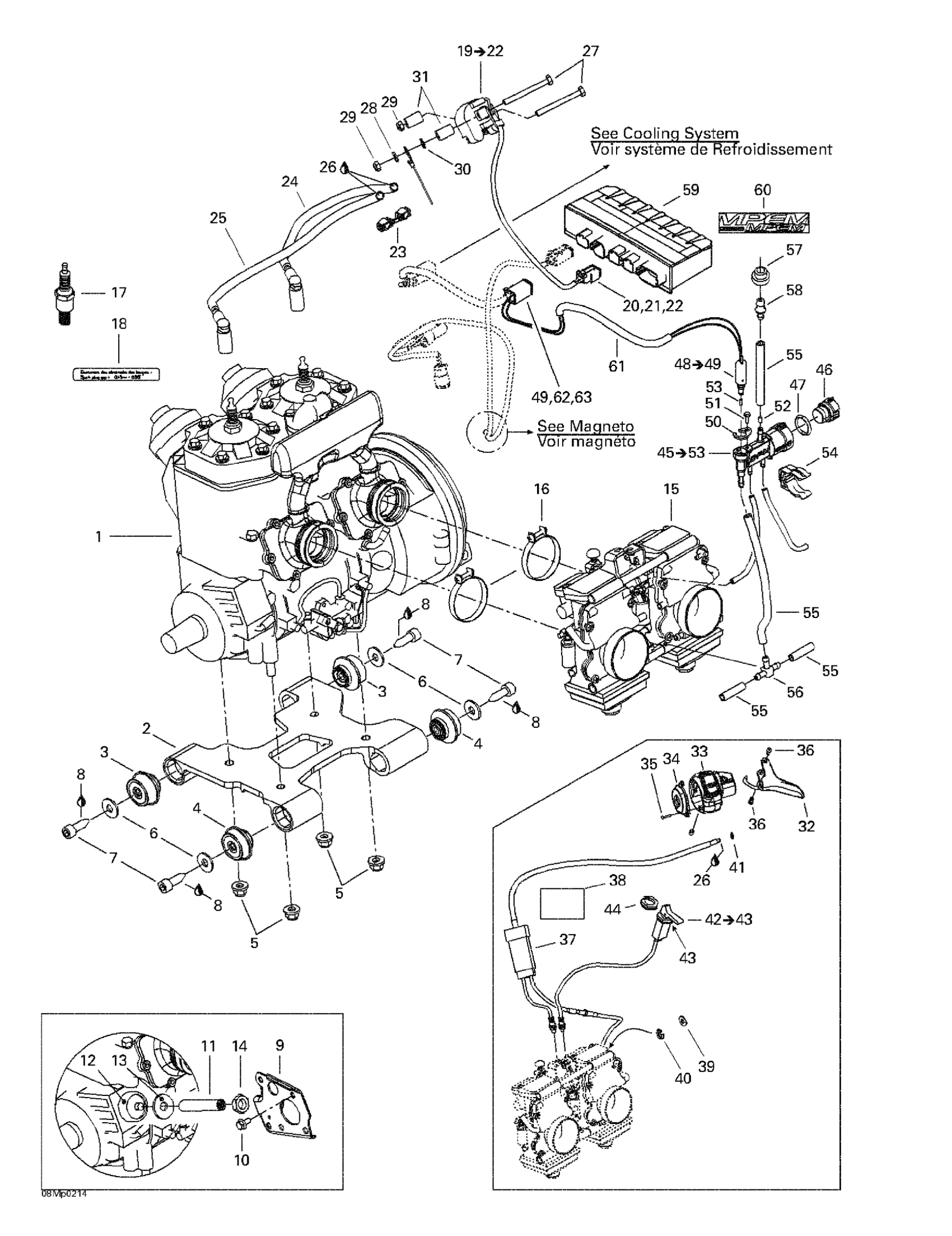

Ski-Doo MX Z 800 Rev, 2002 01- Engine Diagram

#

Description
Price

1

<<793>> Engine

400702603

Unavailable

2

Engine Support

512059282

Unavailable

3

Rubber Mount

512059405

Unavailable

4

Rubber Mount

512059712

Unavailable

5

Hex. Flange Elastic Nut M10

233201436

$2.11

6

Flat Washer M10 | 4X4

250200014

$1.49

7

Screw M10 X 30

250000094

$24.49

8

Loctite 243, 10 ml

293800060

$21.49

9

Plate

512059585

Unavailable

10

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

11

Stopper Screw

250500002

Unavailable

12

STOPPER - Call your local BRP dealership

512059610

Unavailable

13

WASHER - Call your local BRP dealership

512059057

Unavailable

14

Hex. Jam Nut M14

232170411

$1.48

15

Carburetor Kit TM-40-B184

403138667

Unavailable

16

Gemi Clamp

512059835

$11.60

17

Spark Plug NGK BR9ECS-5

512059552

$10.59

18

Spark Plug Decal

516000986

Unavailable

19

IGNITION COIL - Call your local BRP dealership | Includes 23 to 26 / 500 SS & 600 H.O.

512059564

Unavailable

20

Female Terminal Housing, 2 Circuits

515175670

$8.39

21

Female Lock, 2 Circuits

515175707

Unavailable

22

Female Terminal

278000632

$2.09

23

Plastic Clip, Spark Plug Wire

410914600

$5.61

24

Cable Ass’y, 375 mm

512059696

$80.99

25

CABLE ASSY, 455 MM - Call your local BRP dealership

512059486

Unavailable

26

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

27

Hex. Screw M6 X 60

207066044

$0.67

28

Flat Washer 6 mm

234061410

$1.36

29

Elastic Stop Nut M6

232561414

$0.55

30

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

31

Spacer

517203200

$16.18

32

Throttle Handle

512059481

$76.99

33

Housing Throttle Ass'y | Includes 25 to 27

512060121

$38.99

34

Cover

512059683

Unavailable

35

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

36

Flange Screw

732601143

$4.12

37

Throttle Cable

512060085

$84.99

38

Protector

512059611

Unavailable

39

Flat Washer 8 mm, Nylon

234081100

$1.39

40

Circlip

414753500

$0.71

41

Circlip

414274500

$0.90

42

CHOKE CABLE - Call your local BRP dealership | Includes 47 to 48

512059266

Unavailable

43

Lock Washer, Interior Teeth

394103300

Unavailable

44

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

45

Pressure Manifold Ass'y | Includes 45 - 53.

512059501

Unavailable

46

CAP - Call your local BRP dealership

270600009

Unavailable

47

O-RING - Call your local BRP dealership

293300042

Unavailable

48

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

Unavailable

49

Female Terminal

278001665

$4.55

50

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

51

Screw K40 X 10

241140060

$1.48

52

Not Available As Spare Part - Friction Washer

Unavailable

53

STARTER JET - Call your local BRP dealership

404161825

Unavailable

54

SUPPORT - Call your local BRP dealership

512058919

Unavailable

55

Polyurethane Hose 10000Mm Long

219704410

$56.99

56

T-FITTING - Call your local BRP dealership | Engine 800R

414729300

Unavailable

57

Grommet

513032908

$10.49

58

Straight Fitting

293710035

$8.89

59

Calibrated Module

512059273

Unavailable

60

Electrical Box Decal

516000245

Unavailable

61

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

62

Male Housing, 6 Circuits

515175673

$15.49

63

Male Wedge, 6 Circuits

515175678

$5.39
