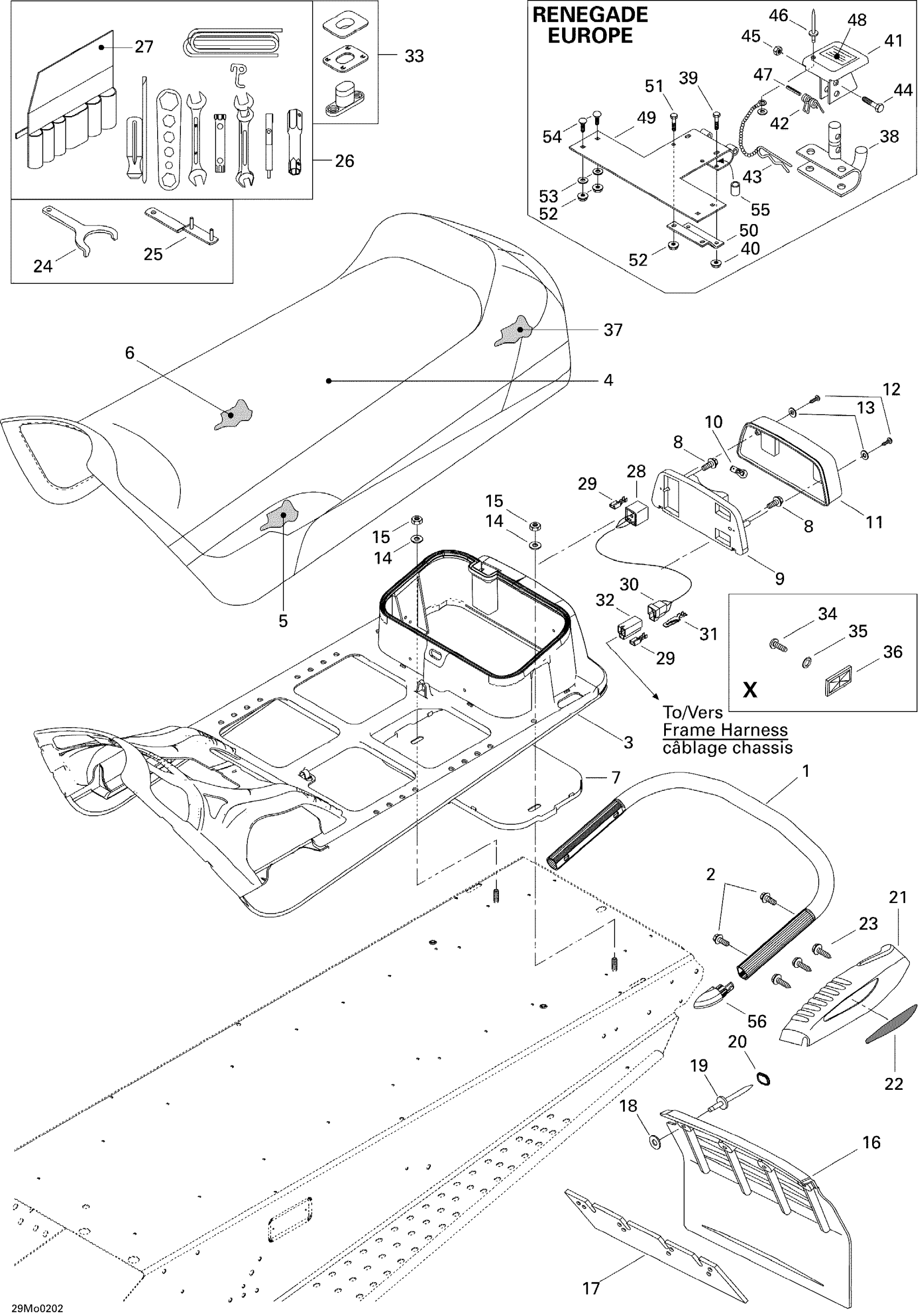

Ski-Doo MX Z 500/600/700/800, 2002 09- Seat And Accessories Diagram

#

Description
Price

1

REAR BUMPER - Call your local BRP dealership

518322708

Unavailable

Rear Bumper

518322888

Unavailable

REAR BUMPER - Call your local BRP dealership

518322708

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Seat Base

510003983

Unavailable

Seat Base (X) | MX Z 600. MX Z 700. MX Z 800.

510003949

Unavailable

4

Seat Cover | MX Z 380 F. MX Z 500 F.

510003959

Unavailable

Seat Cover (X) | MX Z 600. MX Z 700. MX Z 800.

510003961

Unavailable

Seat Cover (Heritage) | MX Z 700.

510004051

Unavailable

Seat Cover (Olympic) | MX Z 700.

510004029

Unavailable

5

SEAT FOAM - Call your local BRP dealership

510003944

Unavailable

6

Seat Foam | MX Z 380 F. MX Z 500 F.

510003841

Unavailable

Seat Foam (X) | MX Z 600. MX Z 700. MX Z 800.

510003948

Unavailable

7

UNDER CHEST - Call your local BRP dealership

572107601

Unavailable

8

Hex. Screw #10 X 1"

732603006

Unavailable

9

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

10

Bulb

520000758

$9.10

11

Lens

414513700

$28.99

12

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

13

Washer - Call your local BRP dealership

414516400

Unavailable

14

Flat Washer 8 mm

234082410

$1.47

15

Hex. Elastic Stop Nut M8

232581414

$0.56

16

SNOW GUARD - Call your local BRP dealership

572092100

Unavailable

17

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

18

Flat Washer

517225900

$0.18

19

Pop Rivet 3/16”

293150087

$0.93

20

Cap

415073300

Unavailable

21

RH MOULDING KIT - Call your local BRP dealership | Sport / SE

861777700

Unavailable

RH Moulding | OPT on LEG 550F/380F

861779300

Unavailable

LH Moulding Kit | Sport / SE

861777800

Unavailable

LH Moulding | OPT on LEG 550F/380F

861779400

Unavailable

22

RH Reflector, Red

516000237

Unavailable

RH Reflector, Yellow, Europe | SE GT Europe

516000241

Unavailable

LH Reflector, Red

516000238

Unavailable

LH Reflector, Yellow, Europe | SE GT Europe

516000242

Unavailable

23

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

24

Adjustment Wrench

529000035

$2.09

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

25

Adjustment Wrench | LT

520000126

$1.49

26

Tool Kit | Includes 12 to 13

529035596

$27.99

27

Tool Bag

520000047

Unavailable

28

Female Terminal Housing, 3 Circuits

515175250

Unavailable

29

Female Terminal

561503100

$2.41

30

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

31

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

32

Female Housing

409204300

Unavailable

33

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

34

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

35

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

36

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

37

Rear Seat Foam

510003945

Unavailable

38

HITCH ASS?Y KIT - Call your local BRP dealership | Includes 49 to 60 / Europe

861778700

Unavailable

38

Hitch | Europe

517199300

Unavailable

39

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

41

Hitch Protector | Europe

517152700

Unavailable

42

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

43

Hair Pin

114045200

$11.11

44

Hex. Screw M6 X 30

207063044

$1.26

45

Elastic Stop Nut M6

232561414

$0.55

46

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

47

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

48

Security Label, Hitch

516001243

Unavailable

49

Fixation | Grand Touring 500. Grand Touring 600. Grand Touring 800.

511000030

Unavailable

50

REINFORCEMENT - Call your local BRP dealership | Europe

511000022

Unavailable

51

Hex. Screw M6 X 18

207161844

$0.76

52

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

53

Flat Washer

224061201

$1.37

54

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

55

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

56

CAP - Call your local BRP dealership

520000272

Unavailable
