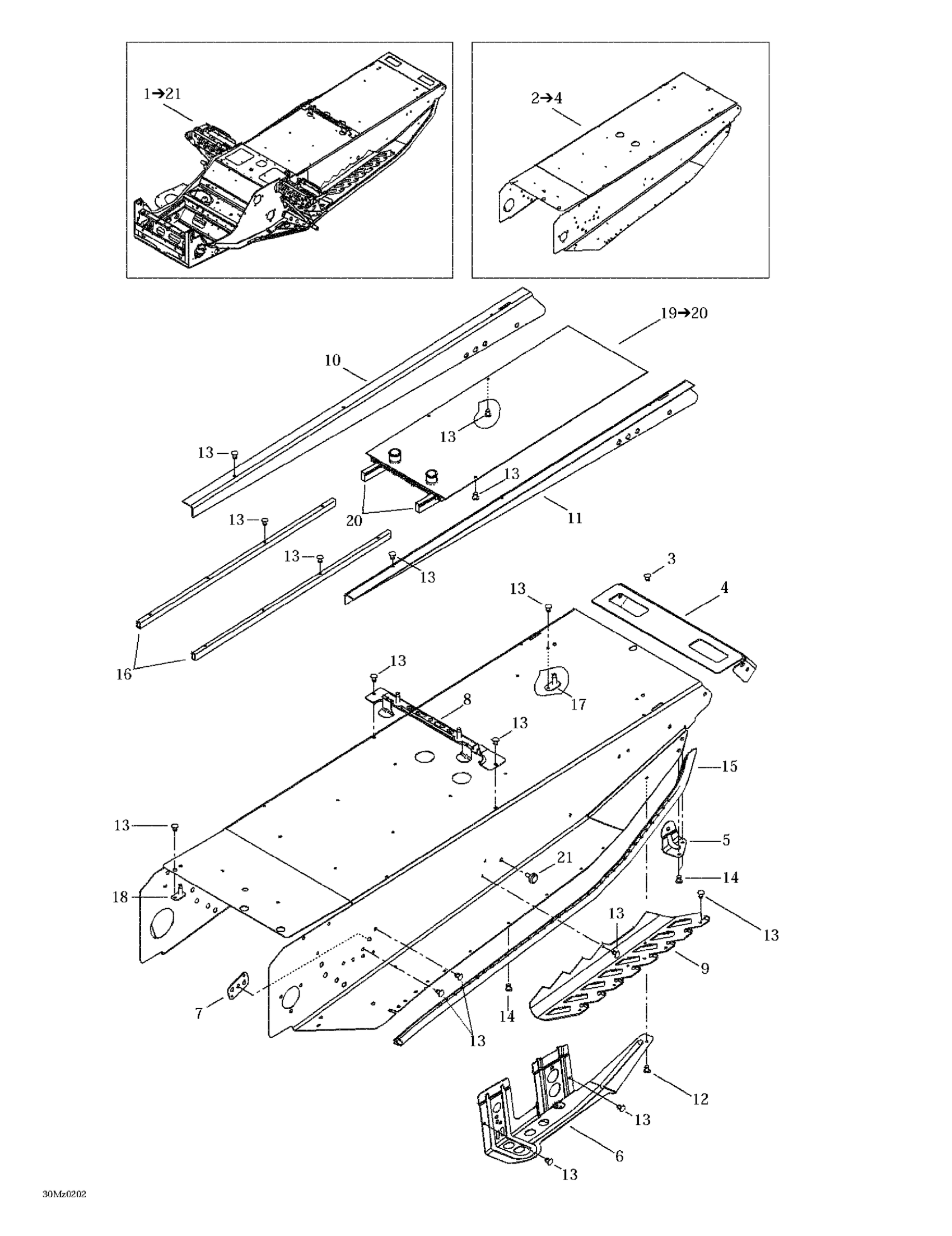

Ski-Doo MX Z 500/600/700/800, 2002 09- Frame - Rear (X) Diagram
#
Description
Price
1
Frame (X) | Includes 1 - 18. MX Z 600.
518323009
Unavailable
1
Frame (X) | MX Z 700. MX Z 800.
518323008
Unavailable
2
Forming Frame (X) | Includes 2 - 4. MX Z 600. MX Z 700. MX Z 800.
518323022
Unavailable
4
REAR CAP - Call your local BRP dealership
518321303
Unavailable
5
RH Reinforcement
518322808
Unavailable
LH Reinforcement
518322810
Unavailable
6
RH Bracket | MX Z 600. MX Z 700. MX Z 800.
518322867
Unavailable
LH Bracket | MX Z 600. MX Z 700. MX Z 800.
518322870
Unavailable
7
REINFORCEMENT PLATE - Call your local BRP dealership
518201321
Unavailable
8
FUEL TANK BRACKET - Call your local BRP dealership
518321510
Unavailable
9
RH Liner
518322697
Unavailable
LH Liner
518322698
Unavailable
10
RH Frame Reinforcement
518322593
Unavailable
11
LH Frame Reinforcement
518322594
Unavailable
15
RH Frame Reinforcement | MX Z 600. MX Z 700. MX Z 800.
518322595
Unavailable
LH Frame Reinforcement | MX Z 600. MX Z 700. MX Z 800.
518322596
Unavailable
16
Frame Protector
518321543
Unavailable
17
Guide
518319730
Unavailable
18
Guide
518321604
Unavailable
19
Rear Radiator | Includes 15 - 16. Legend 500.
518322901
Unavailable
20
Radiator Protector
518321655
Unavailable
