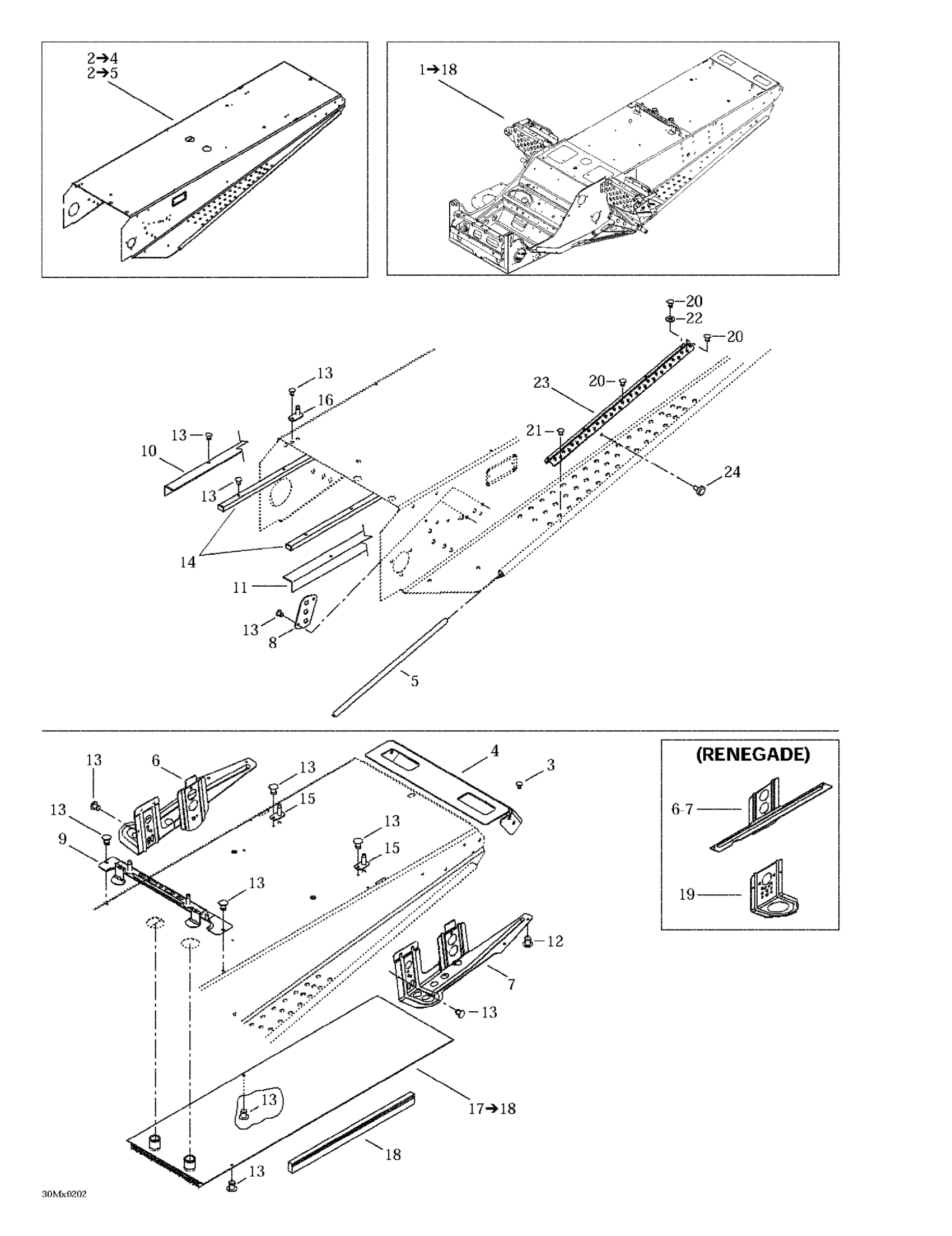

Ski-Doo MX Z 500/600/700/800, 2002 09- Frame - Rear Diagram
#
Description
Price
1
Frame (GS, Sport) | Legend 500. Legend 600.
518323011
Unavailable
1
Frame (GS, Sport) | Legend 700.
518323010
Unavailable
1
Frame (RENEGADE) | MX Z 600.
518323016
Unavailable
1
Frame (RENEGADE) | MX Z 700. MX Z 800.
518323015
Unavailable
2
Forming Frame | Includes 2 - 4. (RENEGADE) MX Z 600. MX Z 700. MX Z 800.
518323025
Unavailable
2
Forming Frame | Legend SE 800 SDI.
518322534
Unavailable
4
REAR CAP - Call your local BRP dealership
518321303
Unavailable
Rear Cap
518322734
Unavailable
5
FOOTREST REINFORCEMENT - Call your local BRP dealership
518304746
Unavailable
6
RH Slide Bracket (GS, Sport) | Legend 500. Legend 600. Legend 700.
518322742
Unavailable
RH Slide Bracket | (RENEGADE) MX Z 600. MX Z 700. MX Z 800.
518322627
Unavailable
7
LH Slide Bracket (GS, Sport) | Legend 500. Legend 600. Legend 700.
518322745
Unavailable
LH Slide Bracket | (RENEGADE) MX Z 600. MX Z 700. MX Z 800.
518322628
Unavailable
8
REINFORCEMENT PLATE - Call your local BRP dealership
518201321
Unavailable
9
FUEL TANK BRACKET - Call your local BRP dealership
518321510
Unavailable
10
RH Frame Reinforcement
518321561
Unavailable
RH Frame Reinforcement
518322395
Unavailable
11
LH Frame Reinforcement
518321562
Unavailable
LH Frame Reinforcement
518322396
Unavailable
14
Frame Protector
518321543
Unavailable
15
Guide
518319730
Unavailable
16
Guide
518321604
Unavailable
17
Rear Radiator | Includes 15 - 16. Legend 500.
518322901
Unavailable
Rear Radiator | Includes 15 - 16. Grand Touring 500.
518322905
Unavailable
18
Radiator Protector
518321655
Unavailable
Radiator Protector | Grand Touring 500.
518321656
Unavailable
19
Front Bracket
518321495
Unavailable
23
Non-Skid Strip (ADRENALINE) | MX Z 600. MX Z 700. MX Z 800.
518321714
Unavailable
STRIP - Call your local BRP dealership
518319405
Unavailable
