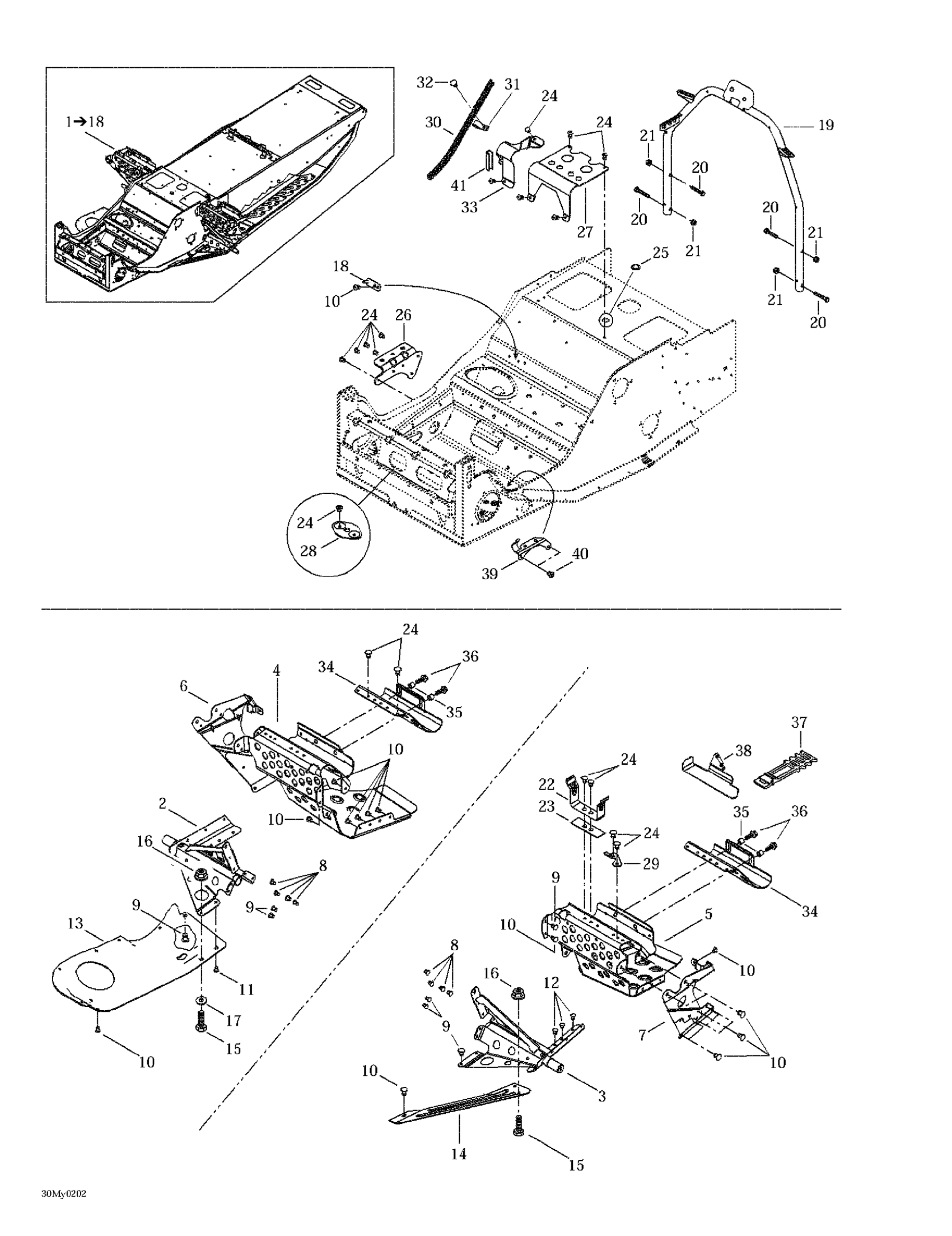

Ski-Doo MX Z 500/600/700/800, 2002 09- Frame - Front (X) Diagram

#

Description
Price

1

Frame (X) | Includes 1 - 18. MX Z 600.

518323009

Unavailable

Frame (X) | MX Z 700. MX Z 800.

518323008

Unavailable

2

RH Foot Support

518322845

Unavailable

3

LH Foot Support

518322848

Unavailable

4

RH Footrest

518322393

Unavailable

5

LH Footrest

518322394

Unavailable

6

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

Unavailable

7

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

Unavailable

8

Avex Rivet

390909200

$0.30

9

Avex Rivet

390909100

$0.30

10

Pop Rivet 3/16"

390402200

$0.35

11

Pop Rivet 3/16"

390402300

$0.75

12

Pop Rivet 3/16"

390402400

$0.35

13

RH Bottom Pan Plate | 600

518319760

Unavailable

RH BOTTOM PAN PLATE - Call your local BRP dealership

518322636

Unavailable

14

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

15

Hex. Screw M5 X 20

207152044

$0.90

16

Hex. Flange Elastic Nut M5

233251414

$1.04

17

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

18

Double Bracket

518322391

Unavailable

19

Handle Support

518322755

Unavailable

20

Hex. Flange Screw M6 X 40

207664044

$2.22

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

Belt Guard Bracket

518202100

$17.49

23

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

24

Pop Rivet 3/16"

390402200

$0.35

25

CAP - Call your local BRP dealership

414859400

Unavailable

26

Muffler Support

518322635

Unavailable

27

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

28

Plate Bracket

518201307

Unavailable

29

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

30

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

31

Open Clamp

518321570

$7.69

32

Pop Rivet 3/16"

390406500

$0.88

33

Hose Support

518322699

Unavailable

34

Toe Hold (ADRENALINE) | MX Z 600. MX Z 700. MX Z 800.

518321571

Unavailable

35

Insert

293450275

$12.99

36

Hex. Flange Screw M6 X 16

207661644

$0.74

37

LATCH - Call your local BRP dealership

570069700

Unavailable

38

Tool Kit Support

518321999

Unavailable

39

Cable Support

515175254

Unavailable

40

Pop Rivet 3/16"

390402300

$0.75

41

Was 271000110 Protection Trim

219704353

$15.99
