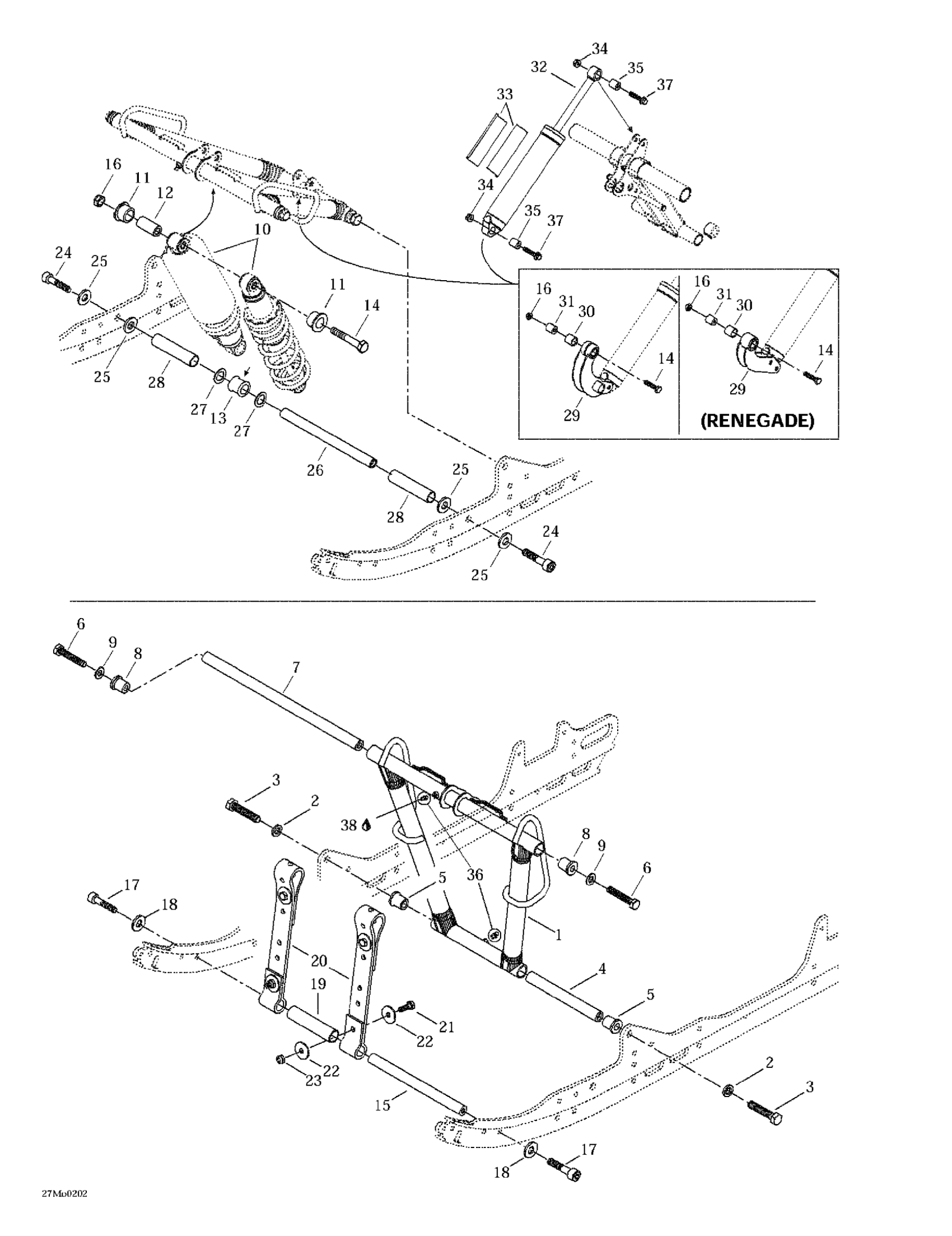

Ski-Doo MX Z 500/600/700/800, 2002 08- Front Arm Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Washer

503189276

$3.28

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

7

SHAFT - Call your local BRP dealership

503190387

Unavailable

8

Bushing

503189324

$14.15

9

Washer

732900049

$0.58

10

Center Shock | MX Z 500. MX Z 600.

503189763

Unavailable

Center Shock (SPORT / ADRENALINE)

503189877

Unavailable

Center Shock (RENEGADE) | MX Z 600. MX Z 700. MX Z 800.

503189876

Unavailable

Center Shock (X) | MX Z 600. MX Z 700. MX Z 800.

503189768

Unavailable

Center Shock (EUROPE-RENEGADE) | MX Z 700. MX Z 800.

503189894

Unavailable

Center Shock (EUROPE-SPORT) | MX Z 500.

503189889

Unavailable

Center Shock (EUROPE-X) | MX Z 600. MX Z 800.

503189803

Unavailable

11

Urethane Bushing

503189117

$8.19

12

Bushing | Includes 240d to 240d1

503189282

$4.34

13

Bushing

503189271

$13.99

14

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

15

AXLE - Call your local BRP dealership

503189562

Unavailable

16

Elastic Locking Nut M10 X 1.5

233601416

$1.69

17

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

18

Washer

503189564

$0.74

19

Spacer

503189265

$4.99

20

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

21

Hex. Screw M8 X 25

207182544

$0.90

22

Flat Washer

224081301

$0.88

23

Hex. Elastic Stop Nut M8

232581414

$0.56

24

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

25

Washer

503189276

$3.28

26

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

27

Washer

503189273

$3.28

28

SPACER - Call your local BRP dealership

503189274

Unavailable

29

Rocker

503189845

Unavailable

Rocker

503189417

Unavailable

30

Rocker Axle

503189388

Unavailable

31

CUSHION - Call your local BRP dealership

503189626

Unavailable

32

Rear Shock

503191582

$164.49

Rear Shock (RENEGADE) | MX Z 600. MX Z 700. MX Z 800.

503189878

Unavailable

Rear Shock (EUROPE-RENEGADE) | MX Z 500. MX Z 800. .

503189827

Unavailable

32

Rear Shock Ass'y | Includes 32 - 33. (SPORT / ADRNALINE)

503189915

Unavailable

Rear Shock Ass'y (X) | MX Z 600. MX Z 700. MX Z 800.

503189843

Unavailable

Rear Shock Ass'y | (EUROPE-SPORT) MX Z 500.

503189916

Unavailable

Rear Shock Ass'y (EUROPE-X) | MX Z 600. MX Z 800.

503189844

Unavailable

33

HPG Decal (Europe)

516000182

Unavailable

Shock Decal

516000183

Unavailable

34

Hex. Flange Elastic Nut M8

233281414

$1.47

35

Bushing

414936000

$13.99

36

Grease Fitting

408200700

$3.49

37

Hex. Flange Screw M8 X 40

207684044

$1.48

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
