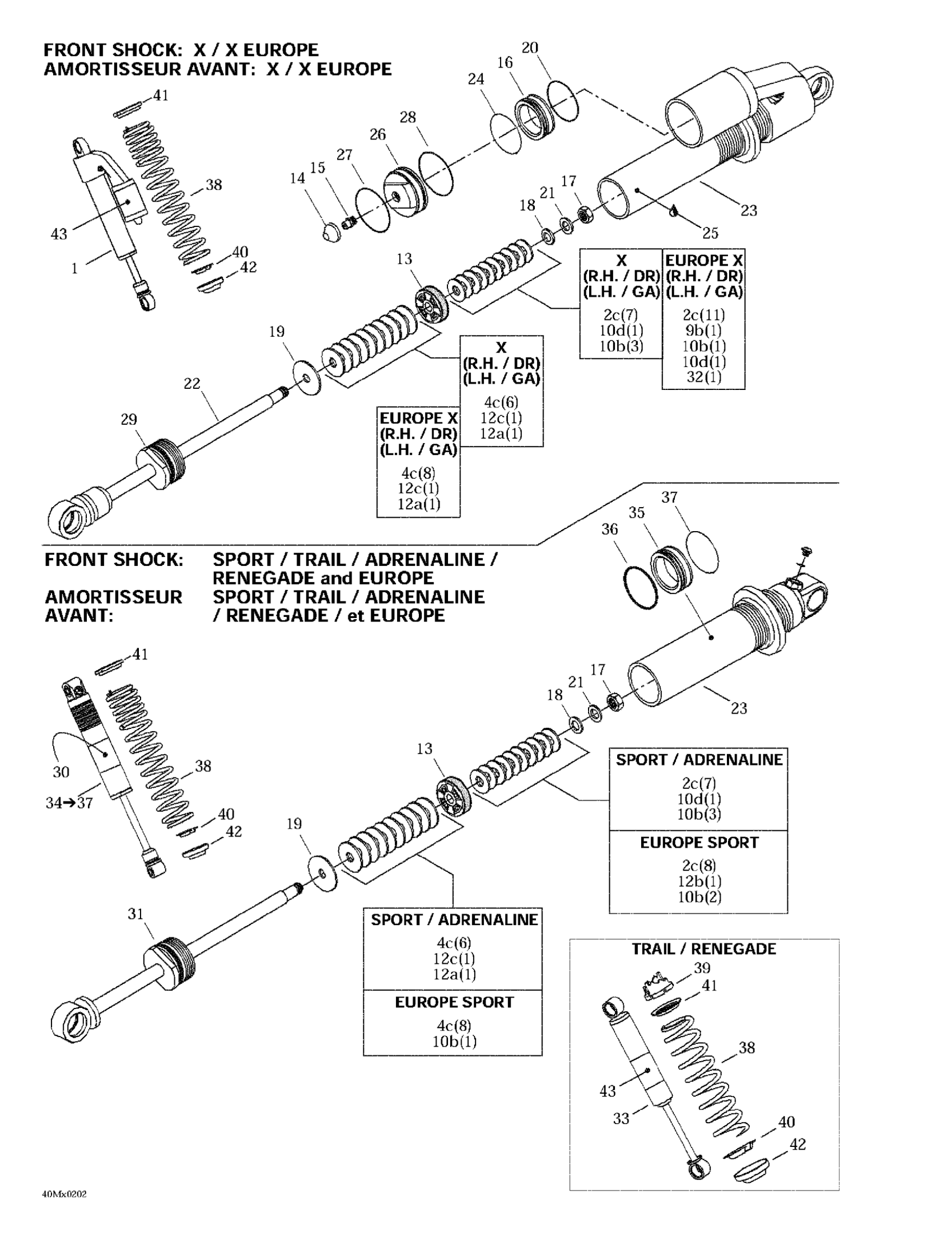

Ski-Doo MX Z 500/600/700/800, 2002 07- Front Take Apart Shocks Diagram
#
1
RH Front Shock | (X) MX Z 600. MX Z 700. MX Z 800.
505070876
Unavailable
RH Front Shock | (EUROPE X) MX Z 600. MX Z 800.
505070877
Unavailable
LH Front Shock | (X) MX Z 600. MX Z 700. MX Z 800.
505070878
Unavailable
LH Front Shock | (EUROPE X) MX Z 600. MX Z 800.
505070879
Unavailable
2A
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
2B
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
2C
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
3A
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
3B
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
4A
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
4B
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
4C
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
5A
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
5B
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
6A
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
7A
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
7B
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
7C
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
8A
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
8A
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
9A
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
9B
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
9C
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
9D
Leaf Valve Ø16 X 0.114 (C36)
415083900
Unavailable
10A
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
10B
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
10C
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
10D
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
11A
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
11B
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
11C
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
11D
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
12A
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
12B
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
12C
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
13
Piston (C36)
414888304
Unavailable
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
Piston (2 X 0.3-4) (C36)
414888306
Unavailable
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
AIR VALVE - Call your local BRP dealership
414888314
Unavailable
16
FREE PISTON - Call your local BRP dealership
415093812
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
26
Guide
415093808
Unavailable
27
STOP RING - Call your local BRP dealership
415093805
Unavailable
29
Sealing Cap
415093819
Unavailable
30
Shock Decal
516000183
Unavailable
HPG Decal (Europe)
516000182
Unavailable
31
Not Available As Spare Part - Friction Washer
Unavailable
32
Not Available As Spare Part - Friction Washer
Unavailable
33
Front Shock (TRAIL)
505070680
Unavailable
34
FRONT SHOCK - Call your local BRP dealership
505070847
Unavailable
Front Shock Ass'y | (SPORT / ADRENALINE)
505070733
Unavailable
Front Shock Ass'y | (RENEGADE) MX Z 600. MX Z 700. MX Z 800.
505070751
Unavailable
RH Front Shock | (X) MX Z 600. MX Z 700. MX Z 800.
505070876
Unavailable
RH Front Shock | (EUROPE X) MX Z 600. MX Z 800.
505070877
Unavailable
LH Front Shock | (X) MX Z 600. MX Z 700. MX Z 800.
505070878
Unavailable
LH Front Shock | (EUROPE X) MX Z 600. MX Z 800.
505070879
Unavailable
Front Shock Ass'y | (EUROPE SPORT) MX Z 500.
505070865
Unavailable
35
FREE PISTON - Call your local BRP dealership
503189309
Unavailable
38
Spring
505070393
Unavailable
Spring | ADRENALINE. EUROPE-ADRENALINE MX Z 500.
505070852
Unavailable
Spring | RENEGADE MX Z 600.. EUROPE-RENEGADE MX Z 800.
505070758
Unavailable
