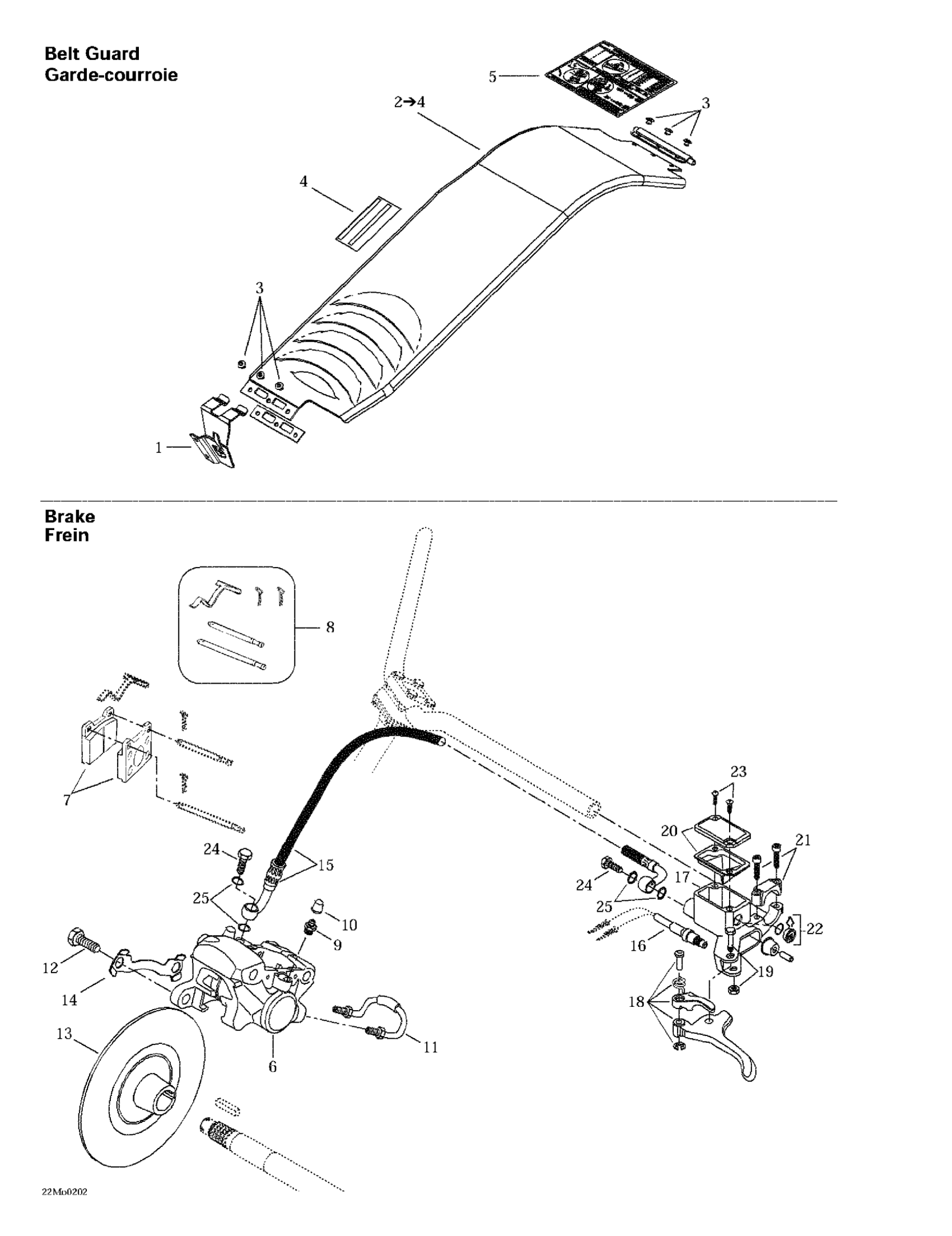

Ski-Doo MX Z 500/600/700/800, 2002 06- Hydraulic Brake And Belt Guard Diagram
#
Description
Price
1
Bracket
417300001
Unavailable
2
Belt Guard Ass’Y | Includes Items 2 to 4
417300173
Unavailable
4
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership
516002670
Unavailable
5
Calibration Label (SPORT)
516001285
Unavailable
Decal (Suspension Adjustment)
516001284
Unavailable
Calibration Label (RENEGADE) | MX Z 600. MX Z 700. MX Z 800.
516000709
Unavailable
Calibration Label (SPORT)
516001285
Unavailable
Calibration Label (X) | MX Z 600. MX Z 700. MX Z 800.
516001283
Unavailable
6
Caliper | Includes 6 - 11. 500 F.
415034500
Unavailable
Caliper | Includes Items 1 to 6
507032321
Unavailable
Caliper (X) | MX Z 600. MX Z 700. MX Z 800.
507032204
Unavailable
8
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
9
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
10
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
11
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
13
Brake Disk
507032203
Unavailable
BRAKE DISK - Call your local BRP dealership
507031300
Unavailable
Brake Disk | X & Renegade X
507032301
Unavailable
14
LOCKING TAB - Call your local BRP dealership
507032316
Unavailable
15
HOSE - Call your local BRP dealership
507032237
Unavailable
Braided Brake Hose
507032329
Unavailable
17
Master Cylinder | Includes 1 to 8
507032293
Unavailable
18
BRAKE SHORT LEVER ASSY - Call your local BRP dealership
507032268
Unavailable
22
WINDOW - Call your local BRP dealership
414990600
Unavailable
23
SCREW M4 X 12 - Call your local BRP dealership
216141260
Unavailable
