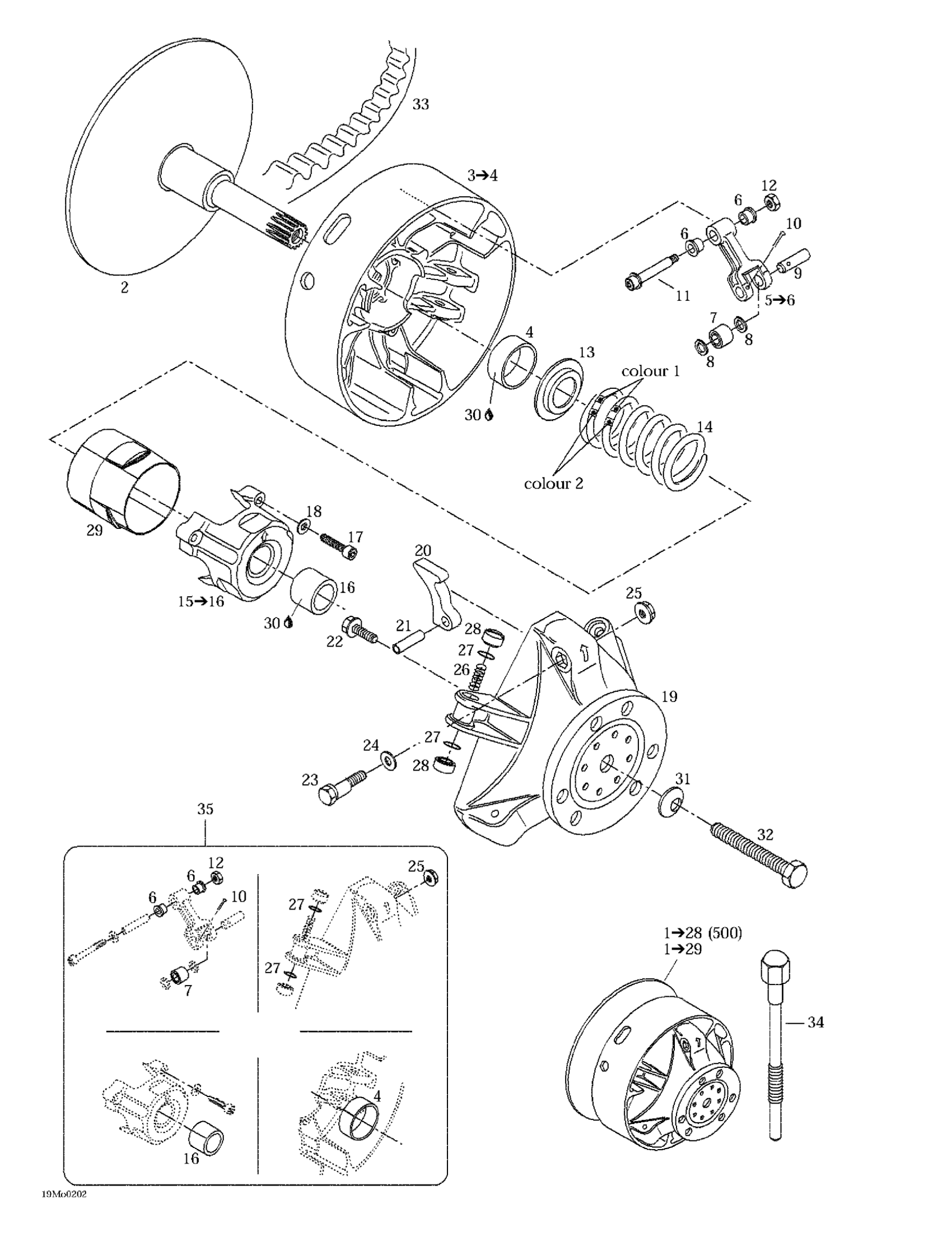

Ski-Doo MX Z 500/600/700/800, 2002 Drive Pulley Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange

417222411

$539.99

Fixed Flange

417222411

$539.99

FIXED FLANGE ASSY - Call your local BRP dealership

417222272

Unavailable

3

SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4

417222241

Unavailable

Sliding Flange Ass’Y | 800 ADRENALINE MANUEL. 800 ADRENALINE ELECTRIC. 800 RENEGADE MANUEL. 800 RENEGADE ELECTRIC MX Z 800.

417222027

Unavailable

4

Bushing

417004201

$25.99

5

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

6

Bushing

417004305

$11.52

7

Roller

417222947

$21.99

8

Stopper Washer

417004302

$15.90

9

Pin

417004308

$13.99

10

Cotter Pin

250400060

$2.00

11

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

SCREW ASS'Y - Call your local BRP dealership

417222028

Unavailable

12

Elastic Stop Nut M6

232561414

$0.55

13

Spring Seat

417222044

Unavailable

14

Spring, Green/Pink

414756900

$41.49

SPRING, GREEN/WHITE - Call your local BRP dealership

417222371

Unavailable

Spring, Violet/Violet

414817900

$39.99

Spring, Green/violet | 800R Power TEK

414762800

$39.99

Spring, Violet/yellow This part replaces 415128608.

415015300

$43.49

15

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

16

Bushing

417004501

$24.99

17

Socket Head Screw M6 X 40

250000038

$7.59

18

WASHER - Call your local BRP dealership

420245370

Unavailable

19

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

20

Ramp 283 | Grand Touring 500.

417222376

Unavailable

RAMP 299 - Call your local BRP dealership

417222372

Unavailable

Ramp 300 | RER 700 ADRENALINE MANUEL. RER 700 ADRENALINE ELECTRIC. STD 700 ADRENALINE MX Z 700.

417222381

Unavailable

RAMP 301 - Call your local BRP dealership | 800 ADRENALINE MANUEL. 800 ADRENALINE ELECTRIC. 800 RENEGADE MANUEL. 800 RENEGADE ELECTRIC MX Z 800.

417222474

Unavailable

21

Pin M8 X 24

732804009

Unavailable

22

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

23

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

24

Washer

417005600

$4.09

25

Hex. Flange Nut M6

233061414

$1.68

26

Spring

417005700

$4.76

27

O-Ring

732401030

$0.98

28

Slider Shoe This part replaces 420460045.

417223021

$5.90

Slider Shoe This part replaces 420460045.

417223021

$5.90

29

Guard

417222176

Unavailable

30

Loctite 609, 10 ml

413703100

$26.99

31

Spring Washer 14 mm

250200006

$6.99

32

Drive Pulley Bolt

417120000

$65.49

33

Drive Belt

414860700

$104.99

Drive Belt

417300585

$154.99

34

Puller This part replaces 529022400.

529000064

$71.99

35

Clutch Repair Kit

417006100

$189.99
