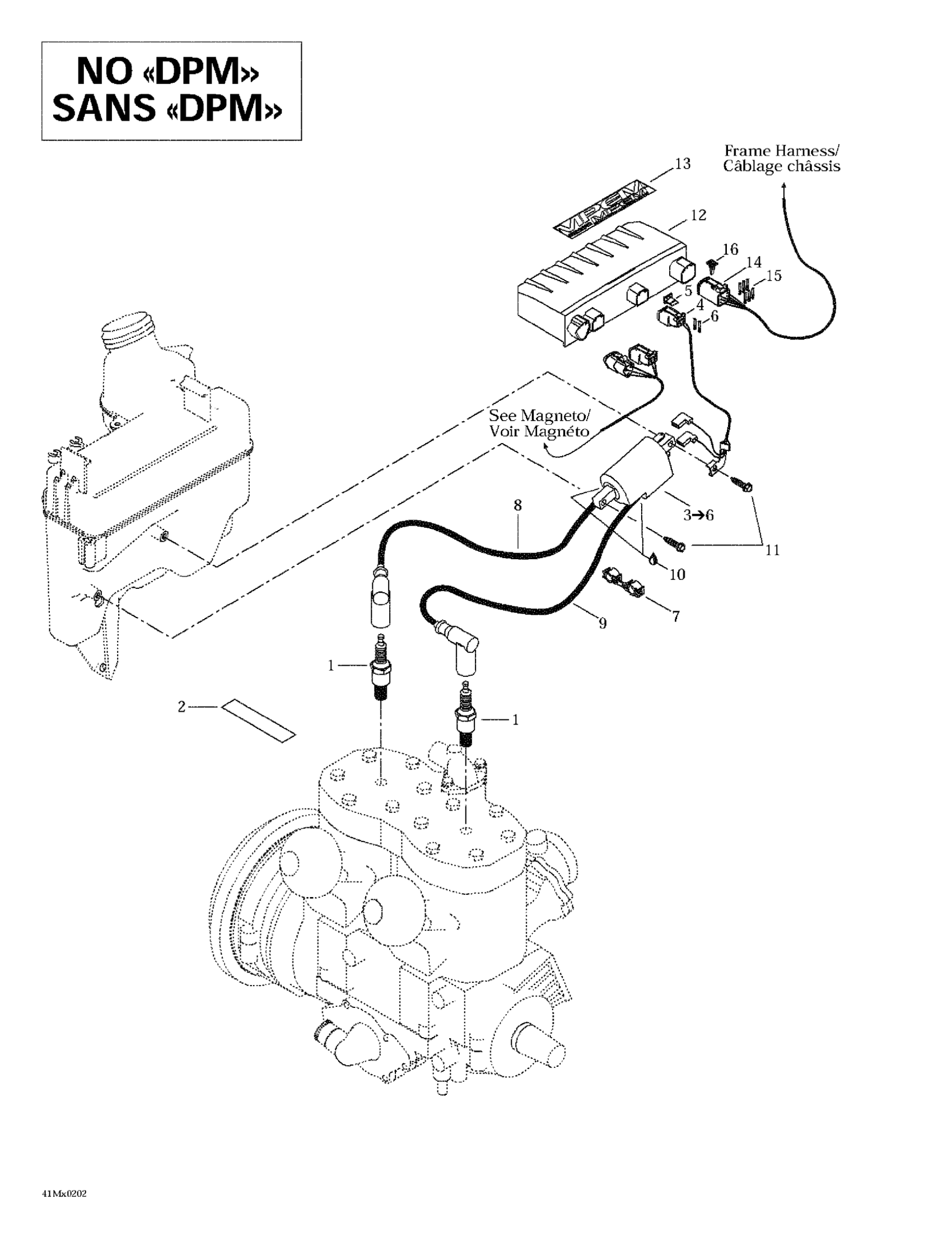

Ski-Doo MX Z 500/600/700/800, 2002 03- Ignition (no DPM) Diagram

#

Description
Price

1

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

Spark Plug NGK BR9ECS-5

512059552

$10.59

2

Spark Plug Decal

516000986

Unavailable

3

Ignition Coil | INCLUDES ITEMS 22 TO 25

512059512

Unavailable

4

Female Connector, 2 Circuits

409207300

$9.85

5

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

6

Female Terminal

278000632

$2.09

7

Plastic Clip, Spark Plug Wire

410914600

$5.61

8

Cable Ass’y, 375 mm

512059696

$80.99

9

CABLE ASSY, 455 MM - Call your local BRP dealership

512059486

Unavailable

10

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

11

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

12

Calibration Module | MX Z 500.

512059448

Unavailable

Calibration Module (RER) | MX Z 500.

512059450

Unavailable

Calibration Module | MX Z 600.

512059451

Unavailable

Calibration Module (RER) | MX Z 600.

512059453

Unavailable

CALIBRATION MODULE - Call your local BRP dealership | MX Z 700.

512059456

Unavailable

Calibration Module (RER) | MX Z 700.

512059458

Unavailable

Calibration Module | MX Z 800.

512059461

Unavailable

Calibration Module (RER) | MX Z 800.

512059463

Unavailable

13

Electrical Box Decal

516000245

Unavailable

14

Male Housing, 6 Circuits

515175673

$15.49

15

Female Terminal

278000632

$2.09

16

Femele Lock

515175705

Unavailable
