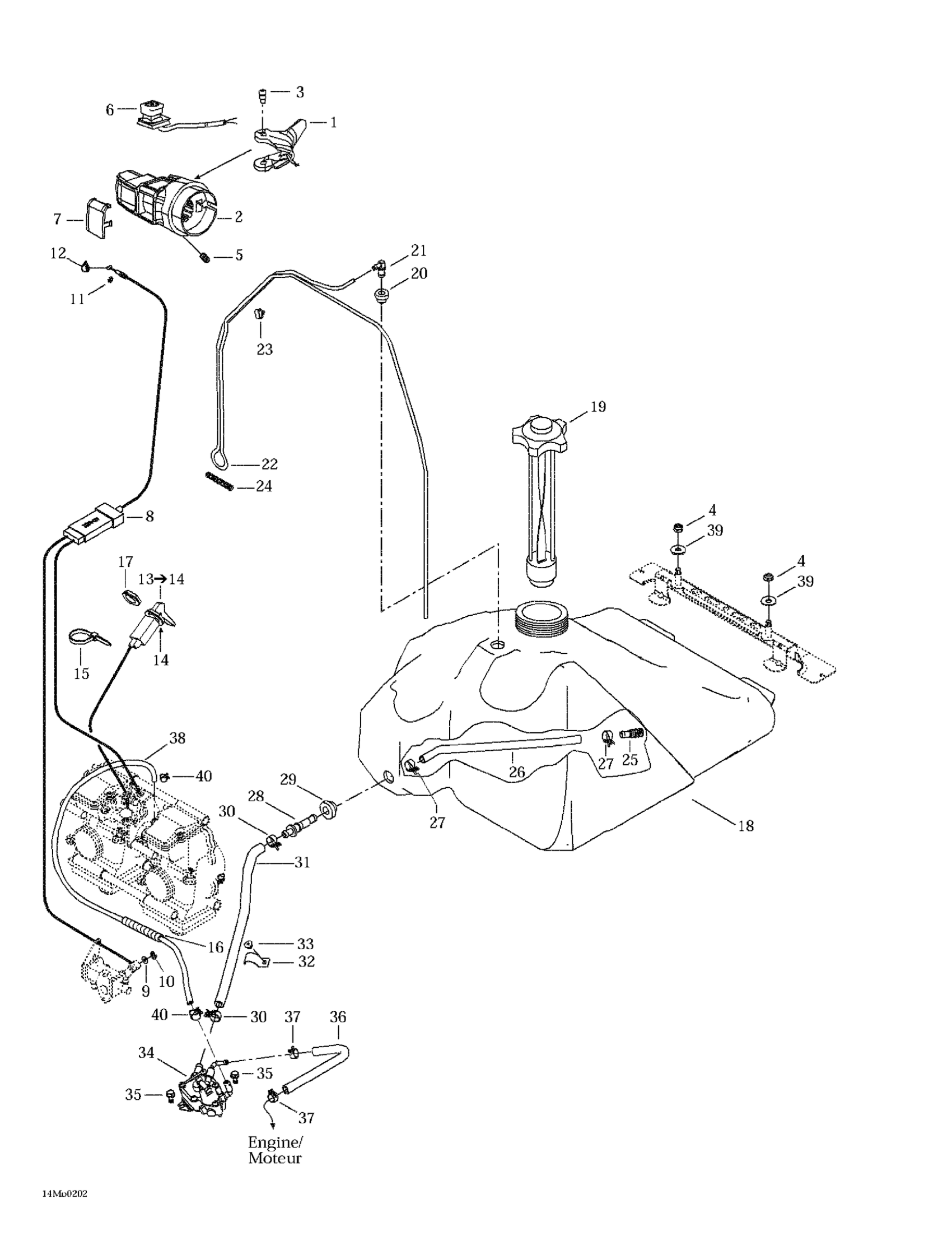

Ski-Doo MX Z 500/600/700/800, 2002 02- Fuel System Diagram

#

Description
Price

1

Throttle Handle

512059481

$76.99

Throttle Handle

512059481

$76.99

2

THROTTLE HOUSING - Call your local BRP dealership

512059763

Unavailable

3

Flange Screw

732601143

$4.12

4

Hex. Elastic Stop Nut M8

232581414

$0.56

5

Socket Set Screw M8 X 10

414440800

$4.12

6

Kill Switch

515175410

Unavailable

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

7

Switch Cover

572100901

$14.83

8

THROTTLE CABLE - Call your local BRP dealership | Grand Touring 500. Grand Touring 600. Grand Touring 700.

512059373

Unavailable

9

Flat Washer 8 mm, Nylon

234081100

$1.39

10

Circlip

414753500

$0.71

11

Circlip

414274500

$0.90

12

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

13

CHOKE CABLE - Call your local BRP dealership | INCLUDES ITEMS 41 TO 42

512059110

Unavailable

14

Lock Washer, Interior Teeth

394103300

Unavailable

15

Tie-Rap 173 mm

293750009

$1.04

16

Tubing 10 MM 1000MM Long

219704407

$2.79

17

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

18

Fuel Tank

513032987

Unavailable

19

Fuel Tank Cap | Sport / Sport GT

513033020

$37.99

20

Grommet

513032908

$10.49

21

Male Connector

414814100

$2.22

22

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

23

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

24

SPRING - Call your local BRP dealership

414818200

Unavailable

25

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

26

Hose

415005700

$11.58

27

Norma Spring Clamp

513033010

$9.69

28

Male Connector

414872700

$1.90

29

Grommet | Europe

707800347

$10.49

30

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

31

Formed Hose

513032903

$30.99

32

CLIP - Call your local BRP dealership

415018200

Unavailable

33

Pop Rivet 3/16"

390406500

$0.88

34

Fuel Pump | MANUAL STARTER

403901806

$84.99

35

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

Unavailable

36

Hose

219704549

$50.99

37

Spring Clamp

414415200

$0.88

38

Formed Tube

513032986

Unavailable

39

Flat Washer 8 mm

234082410

$1.47

40

Spring Clamp

414420700

$0.72
