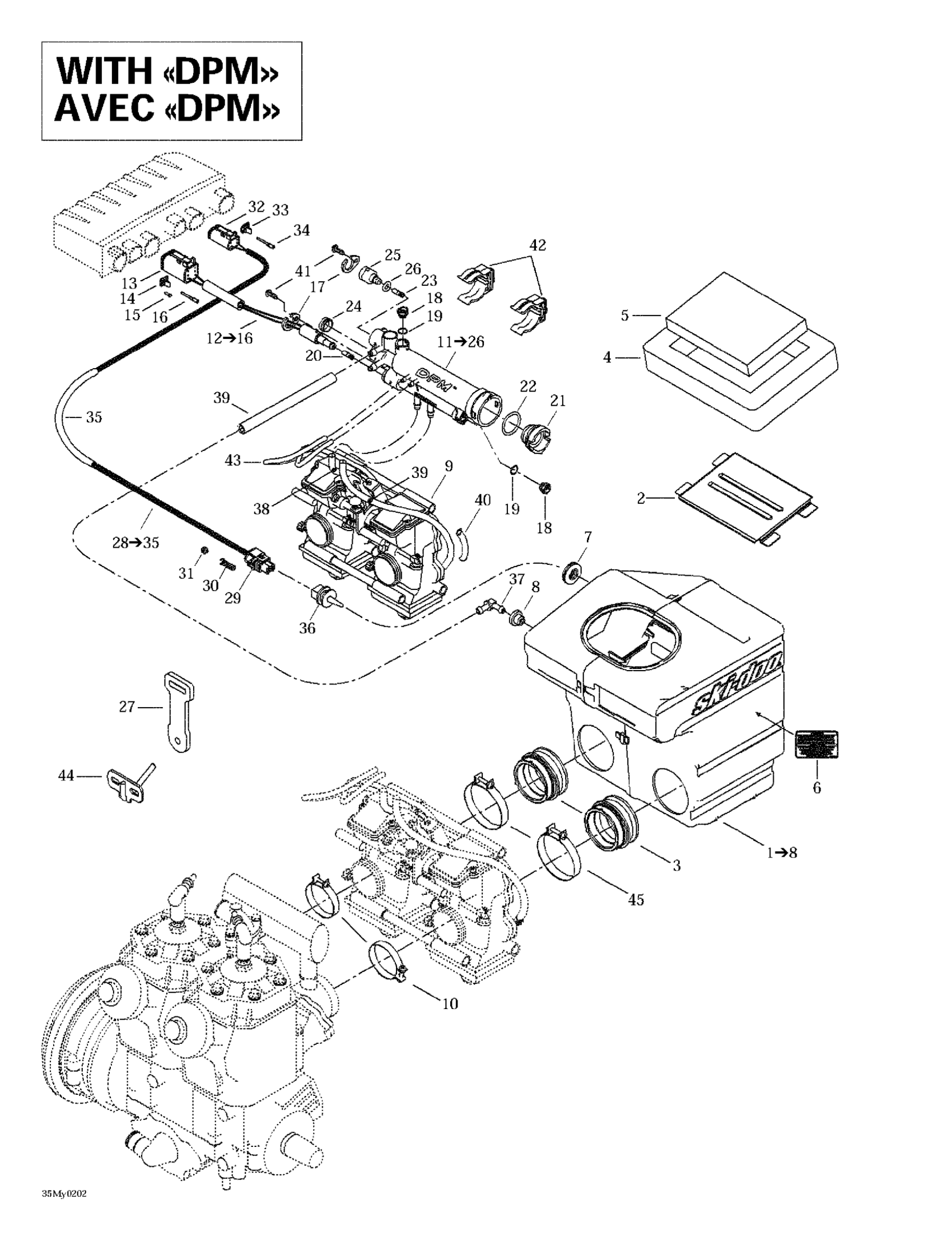

Ski-Doo MX Z 500/600/700/800, 2002 02- Air Intake System (with DPM) Diagram

#

Description
Price

1

Air Intake Ass'y | Includes 1 - 8. Grand Touring 600.

508000226

Unavailable

Air Intake Ass'y | Grand Touring 700.

508000227

Unavailable

Air Intake Ass'y | Grand Touring 800.

508000223

Unavailable

2

INTAKE GRILL - Call your local BRP dealership

508000004

Unavailable

3

Air Intake Adaptor, 40 mm

508000092

Unavailable

4

Lower Foam

508000099

Unavailable

5

Air Filter

508000154

$23.49

6

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

7

GROMMET - Call your local BRP dealership

570065500

Unavailable

8

Grommet

513032908

$10.49

9

Carburetor Kit TM 40 B-154 | Grand Touring 600.

403138700

$986.99

DEEP BLACK, CARBURETOR KIT TM 40 - Call your local BRP dealership | Grand Touring 700.

403138699

Unavailable

Carburetor Kit TM 40 B-166 | Grand Touring 800.

403138698

Unavailable

10

Gemi Clamp

512059835

$11.60

11

Pressure Manifold Ass'y | Includes 11 - 26. Grand Touring 600.

512059496

Unavailable

Pressure Manifold Ass'y | Grand Touring 700. Grand Touring 800.

512059497

Unavailable

12

Pressure Manifold Harness | Includes 12 - 16. Grand Touring 600. Grand Touring 700. Grand Touring 800.

515175693

Unavailable

13

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

14

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

15

PLUG - Call your local BRP dealership

515175303

Unavailable

16

Female Terminal

278001665

$4.55

17

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

18

Cap | Grand Touring 600. Grand Touring 700.

512058921

Unavailable

19

O-Ring | Grand Touring 600. Grand Touring 700.

512058925

Unavailable

20

STARTER JET - Call your local BRP dealership

404161825

Unavailable

21

Cap | Grand Touring 600. Grand Touring 700.

512058949

Unavailable

22

O-Ring | Grand Touring 600. Grand Touring 700.

512058950

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Cap | Grand Touring 600. Grand Touring 700.

512058982

Unavailable

25

Cap | Grand Touring 600. Grand Touring 700.

512059557

Unavailable

26

O-Ring | Grand Touring 600. Grand Touring 700.

512059558

Unavailable

27

CARBURETOR LATCH - Call your local BRP dealership

512059372

Unavailable

28

Temperature Harness | Includes 40 to 47

515175703

Unavailable

29

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515175588

Unavailable

30

Female Terminal

278000998

$4.39

31

Wire Seal

278000999

$3.19

32

Female Terminal Housing, 2 Circuits

515175670

$8.39

33

Female Lock, 2 Circuits

515175706

Unavailable

34

Female Terminal

278000632

$2.09

35

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

36

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

37

Elbow Male Connector

414580600

$4.23

38

Polyurethane Hose | DPM-HO ADRENALINE & RENEGADE MX Z 600.

512059524

Unavailable

39

Hose | Grand Touring 600. Grand Touring 700.

512059523

Unavailable

40

Was 409901700 Tubing (9 mm)

219704399

$84.99

41

Screw K40 X 10

241140060

$1.48

42

SUPPORT - Call your local BRP dealership

512058919

Unavailable

43

HOSE - Call your local BRP dealership

404161904

Unavailable

44

Carburetor Bracket

512059504

Unavailable

45

Gemi Clamp

508000346
