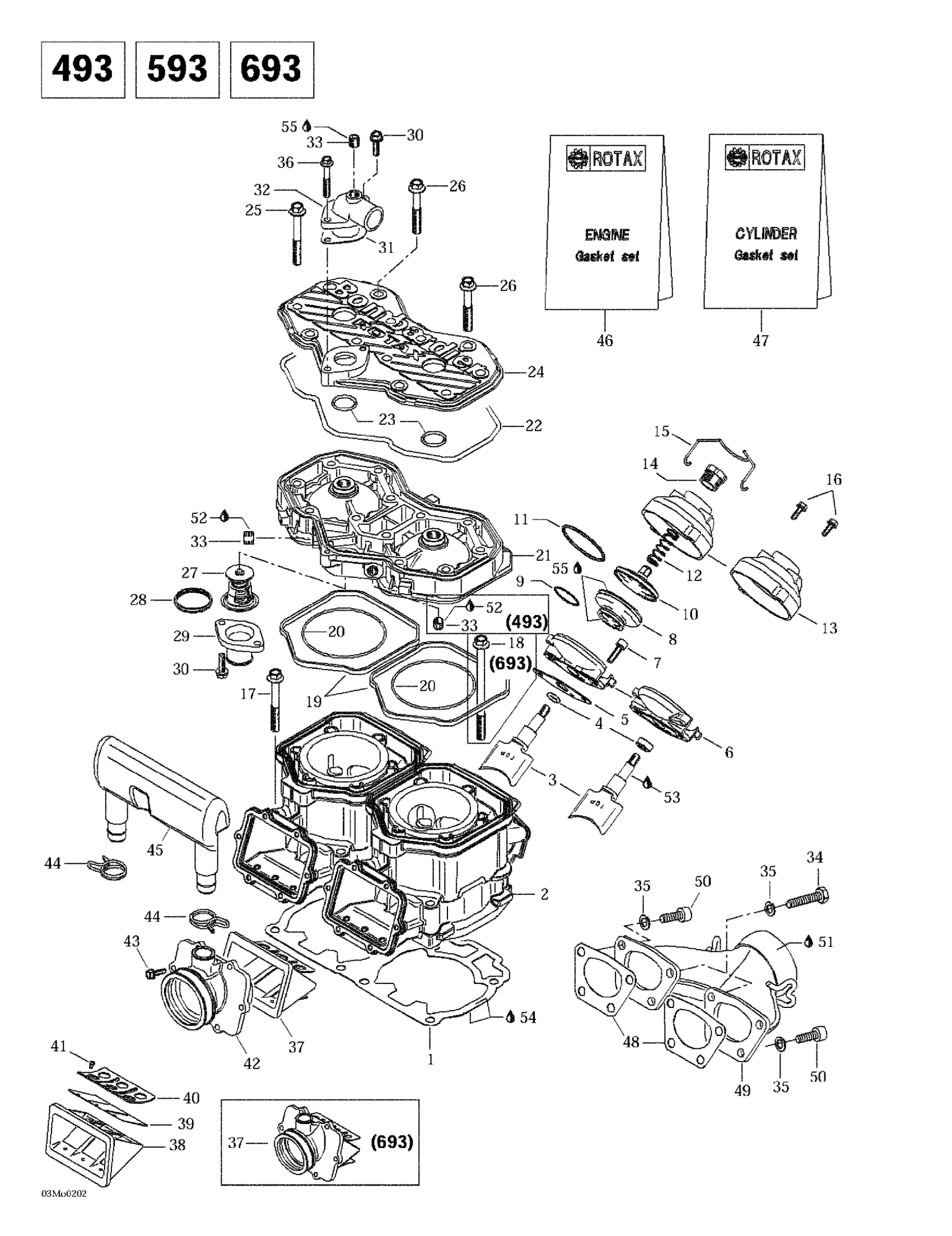

Ski-Doo MX Z 500/600/700/800, 2002 Cylinder, Exhaust Manifold, Reed Valve (493, 593, 693) Diagram

#

Description
Price

1

DOUBLE GASKET 0.8 MM - Call your local BRP dealership | Grand Touring 500.

420931589

Unavailable

Gasket 0.8 mm

420431423

$25.35

Double Gasket 0.8 mm

420431163

$23.05

DOUBLE GASKET 0.7 MM - Call your local BRP dealership | Grand Touring 500.

420931960

Unavailable

Gasket 0.7 mm

420431422

$26.89

Gasket 0.7 mm

420431162

$23.05

DOUBLE GASKET 0.6 MM - Call your local BRP dealership | Grand Touring 500.

420931587

Unavailable

Gasket 0.6 mm

420431421

$19.20

Gasket 0.6 mm

420431161

$23.05

DOUBLE GASKET 0.5 MM - Call your local BRP dealership | Grand Touring 500.

420931588

Unavailable

Gasket 0.5 mm

420431420

$23.82

Gasket 0.5 mm

420431160

$16.89

GASKET 0.4 MM - Call your local BRP dealership

420931581

Unavailable

2

Cylinder With Sleeve | Grand Touring 500.

420613605

Unavailable

2

REBUILD-CYLINDER 493 2000 - Call your local BRP dealership

421000568

Unavailable

Cylinder With Sleeve

420613628

$439.99

Cylinder With Sleeve

420613628

$439.99

Cylinder With Sleeve, Nicasil

420923695

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership | Grand Touring 500.

420854490

Unavailable

Exhaust Valve

420854371

$57.66

EXHAUST VALVE - Call your local BRP dealership

420854332

Unavailable

4

O-Ring

420430110

$3.61

Oil Seal | Included in gasket kit

420950732

$8.34

5

Gasket

420250239

$6.62

6

Valve Housing | MX Z 600.

420854267

Unavailable

Valve Housing

420854266

$93.82

7

Socket Head Screw M6 X 20

205062044

$1.07

8

Exhaust Bellows

420260723

$35.07

9

Hose Spring This part replaces 420838253.

420838255

$6.11

10

Exhaust Valve This part replaces 290253257.

420854449

$29.87

11

Hose Spring This part replaces 420239048.

420939281

$5.99

12

SPRING - Call your local BRP dealership

420239948

Unavailable

Spring This part replaces 420239944.

420239954

$7.31

13

Valve Cover

420911552

$37.66

14

Adjuster Screw

420241221

$12.52

15

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

16

Hex. Tapping Screw M5 X 20

420841555

$1.68

17

Hex. Collar Screw

420640524

$11.52

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$6.09

18

Hex. Collar Screw

420640534

$13.58

19

Rubber Ring

420931590

$5.69

20

O-Ring | Grand Touring 500.

420831792

$15.35

O-Ring This part replaces 420850540.

293300026

$2.67

O-RING - Call your local BRP dealership

420931840

$12.11

21

Cylinder Head (Silver) | Grand Touring 500.

420923882

Unavailable

CYLINDER HEAD - Call your local BRP dealership

420923459

Unavailable

CYLINDER HEAD (SILVER) - Call your local BRP dealership | Grand Touring 700.

420923457

Unavailable

22

O-Ring This part replaces 290950320.

420950320

$11.48

23

O-Ring

420430782

$4.41

24

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

25

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.34

26

Hex. Screw M8 X 56.5

420941627

$8.34

27

Thermostat This part replaces 414834100.

420922519

$59.20

28

SEALING RING - Call your local BRP dealership

420931270

Unavailable

29

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

30

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.65

31

Gasket

420850338

$10.28

32

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

33

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

34

Hex. Screw M8 X 20

207182044

$0.61

35

Lock Washer 8 mm

234181401

$0.89

Lock Washer M6, Black

234161471

$0.52

36

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

37

Reed Valve Ass'y

420924519

$50.74

37

Carburetor Socket | INCLUDES ITEMS 34 TO 37

420867873

$248.43

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Reed Pedal

420924680

$37.66

Reed Pedal

420924532

$43.82

40

Reed Pedal Stop

420924539

$11.52

Reed Pedal Stop

420924695

$13.58

41

Phillips Screw M3 X 5

420941215

$1.42

42

CARBURETOR SOCKET - Call your local BRP dealership

420867882

Unavailable

43

Taptite Screw M5 X 16

420941928

Unavailable

44

CLAMP - Call your local BRP dealership

420851440

Unavailable

45

Intake Resonator

420867817

Unavailable

46

Engine Gasket Set | Grand Touring 500.

420888721

Unavailable

ENGINE GASKET SET - Call your local BRP dealership | Grand Touring 600.

420888583

Unavailable

ENGINE GASKET SET - Call your local BRP dealership | Grand Touring 700.

420888603

Unavailable

47

CYLINDER GASKET SET - Call your local BRP dealership | Grand Touring 500.

420888726

Unavailable

Gasket Set, Cylinder

420893075

$166.89

Cylinder Gasket Set

420888608

Unavailable

48

GASKET - Call your local BRP dealership | Grand Touring 500.

420931615

Unavailable

Gasket

420931610

$11.38

Gasket

420850552

$7.92

49

Exhaust Manifold | Grand Touring 500.

420973650

Unavailable

Exhaust Manifold

420979543

Unavailable

Exhaust Manifold | Grand Touring 700.

420973591

Unavailable

50

Socket Head Screw M8 X 25

205082544

$0.92

Socket Head Screw M6 X 20

205062044

$1.07

51

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

52

Loctite 243, 10 ml

293800060

$20.77

53

Molykote G-N, 50 g

420297433

$22.72

54

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

55

Sealing Compound Loctite 5366 310Ml

420297907

$54.57
