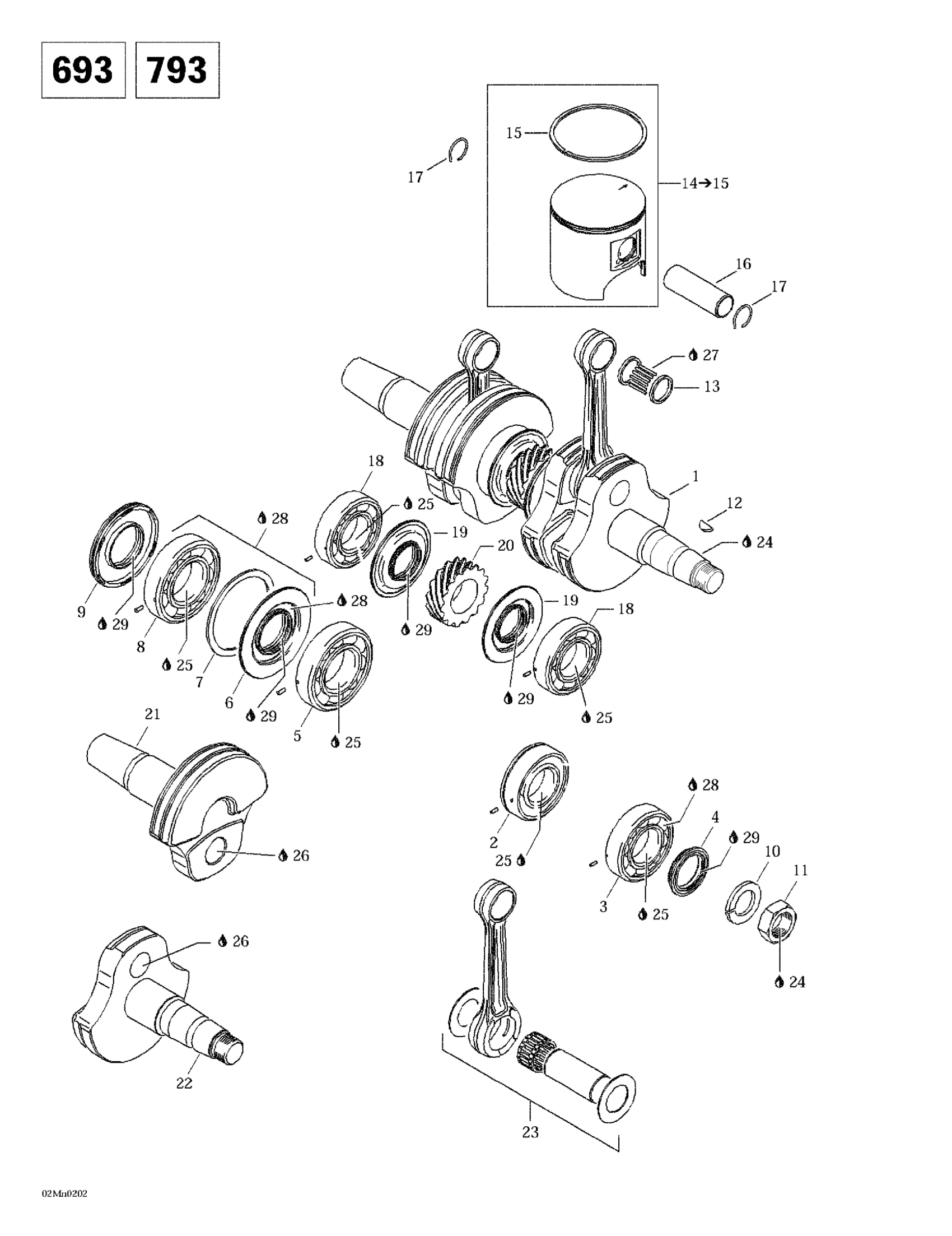

Ski-Doo MX Z 500/600/700/800, 2002 01- Crankshaft And Pistons (693, 793) Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 9. Grand Touring 700.

420888286

Unavailable

1

REBUILD-CRANKSHAFT 693 - Call your local BRP dealership

421000574

Unavailable

1

Crankshaft Ass'y | Includes 1 - 8. Grand Touring 800.

420888402

Unavailable

2

Ball Bearing Sealed, 6207

420832673

$101.49

3

Ball Bearing 6207 | With drive pin

420832575

$52.99

4

Oil Seal

420931795

$17.63

5

Ball Bearing 6208 | With drive pin

420832600

$79.49

6

Oil Seal

420931910

$37.99

7

Washer

420926190

$11.63

8

Ball Bearing 6208 | With drive pin

420832600

$79.49

Bearing_Ball - Call your local BRP dealership | MX Z 800.

420832601

Unavailable

9

Oil Seal

420931280

$51.49

Oil Seal | Included in gasket kit

420931284

$23.49

10

Lock Washer, 22 mm

420945759

$1.90

11

Hex. Nut, M22 X 1.5

420842239

$17.53

12

Woodruff Key

420246015

$3.17

13

Needle Bearing

420832445

$27.49

14

Piston Ass’y, 1 Ring 77.88 mm | INCLUDES ITEMS 13 TO 14

420888298

Unavailable

Piston 81 | Includes 13 to 14 This part replaces 420889456.

420889457

$228.99

15

SEMI-TRAPEZ RING - Call your local BRP dealership

420815226

Unavailable

SEMI-TRAPEZ RING - Call your local BRP dealership

420815360

Unavailable

16

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

17

Piston Circlip

420845106

$3.93

18

Ball Bearing 6207 | With drive pin

420832575

$52.99

19

Oil Seal

420931455

$35.99

20

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

21

CRANKSHAFT, PTO SIDE - Call your local BRP dealership

420818708

Unavailable

CRANKSHAFT (PTO) - Call your local BRP dealership This part replaces 420819032.

420819030

Unavailable

22

CRANKSHAFT, MAG SIDE - Call your local BRP dealership

420818739

Unavailable

Crankshaft, Mag

420819061

Unavailable

23

ROD REPAIR KIT (MAG) - Call your local BRP dealership | Grand Touring 700.

420888288

Unavailable

Rod Repair Kit (MAG) | Grand Touring 800.

420889103

Unavailable

ROD REPAIR KIT (PTO) - Call your local BRP dealership | Grand Touring 700.

420888289

Unavailable

Rod Repair Kit (PTO) | Grand Touring 800.

420889104

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

26

Sealant Loctite 648

219703000

$45.99

27

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

28

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99

29

Petamo Grease, GHY133N, 400 g

420899271

$67.99
