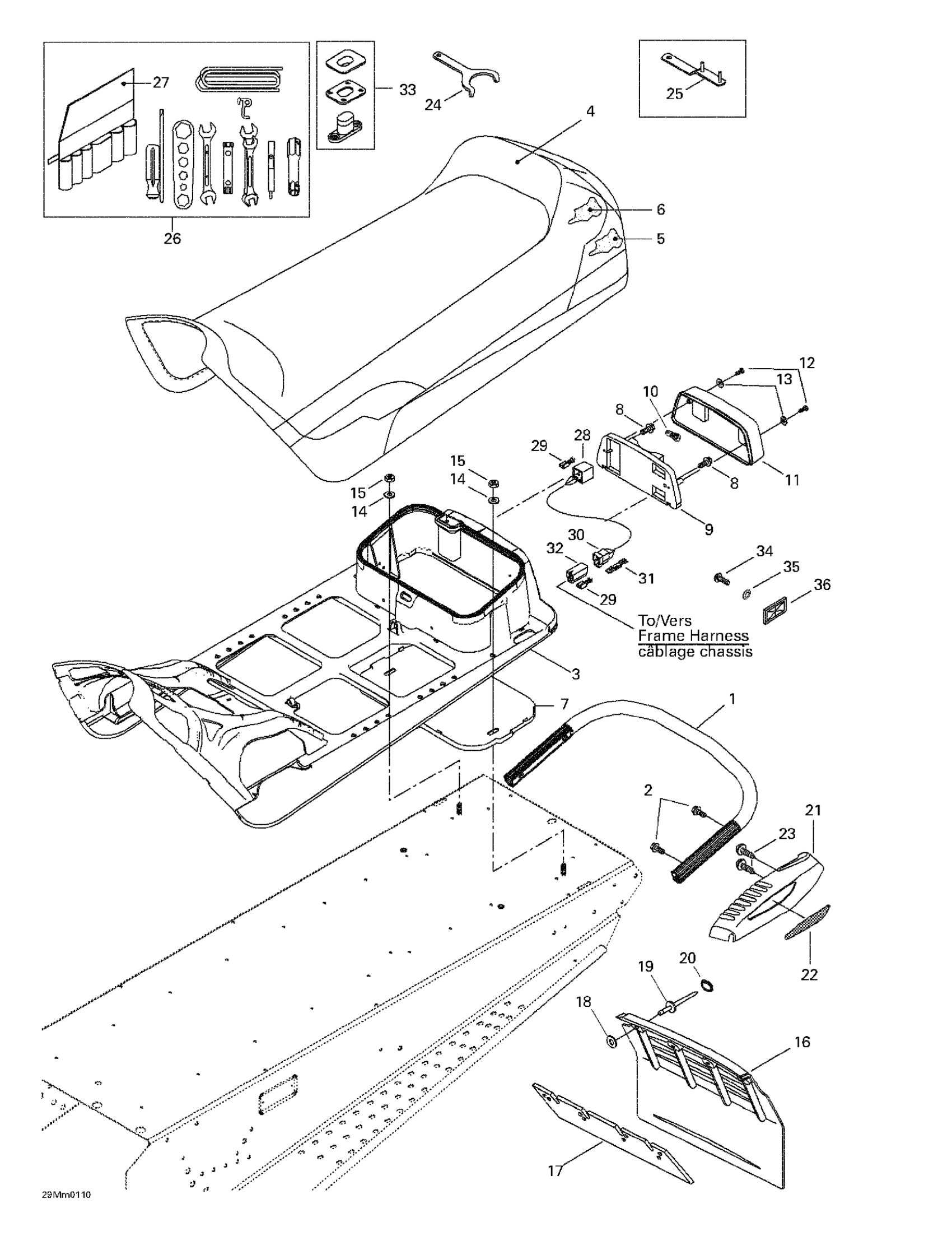

Ski-Doo MX Z 500/600/700, 2001 09- Seat And Accessories Diagram

#

Description
Price

1

REAR BUMPER - Call your local BRP dealership

518322438

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Seat Base

572107600

Unavailable

4

Seat Cover (STD-TRAIL-ADR)

510003858

Unavailable

Seat Cover (X) | MX-Z 600. MX-Z 700.

510003859

Unavailable

5

Seat Foam

510003840

Unavailable

6

Seat Foam | MX Z 380 F. MX Z 500 F.

510003841

Unavailable

7

UNDER CHEST - Call your local BRP dealership

572107601

Unavailable

8

Hex. Screw #10 X 1"

732603006

Unavailable

9

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

10

Bulb

520000758

$9.10

11

Lens

414513700

$28.99

12

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

13

Washer - Call your local BRP dealership

414516400

Unavailable

14

Flat Washer 8 mm

234082410

$1.47

15

Hex. Elastic Stop Nut M8

232581414

$0.56

16

SNOW GUARD - Call your local BRP dealership

572092100

Unavailable

17

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

18

Flat Washer

517225900

$0.18

19

Pop Rivet 3/16"

293150100

$1.09

20

Cap

415073300

Unavailable

21

RH Moulding

572092200

Unavailable

LH Moulding

572092300

Unavailable

22

RH Reflector, Red

516000237

Unavailable

RH Reflector, Yellow, Europe | SE GT Europe

516000241

Unavailable

LH Reflector, Red

516000238

Unavailable

LH Reflector, Yellow, Europe | SE GT Europe

516000242

Unavailable

23

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

24

Adjustment Wrench

529000035

$2.09

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

25

Adjustment Wrench | LT

520000126

$1.49

26

Tool Kit | Includes 12 to 13

529035596

$27.99

27

Tool Bag

520000047

Unavailable

28

Female Terminal Housing, 3 Circuits

515175250

Unavailable

29

Female Terminal

561503100

$2.41

30

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

31

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

32

Female Housing

409204300

Unavailable

33

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

34

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

35

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

36

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable
