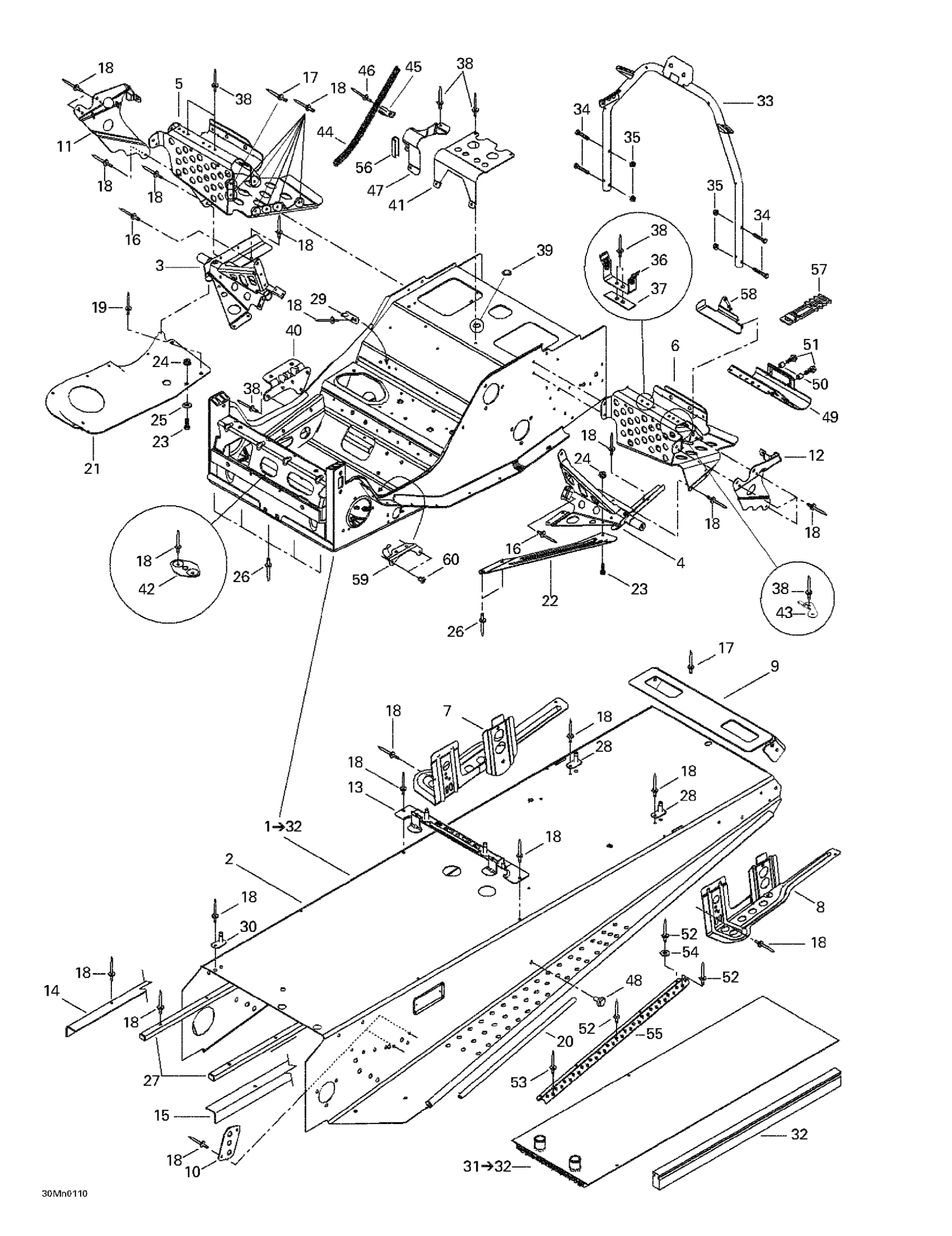

Ski-Doo MX Z 500/600/700, 2001 09- Frame And Accessories Diagram

#

Description
Price

1

Full Moon, Frame | Includes 1 - 33.

518322488

Unavailable

2

Forming Frame | Legend SE 800 SDI.

518322534

Unavailable

3

RH Footrest Support

518320506

Unavailable

4

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

5

RH Footrest

518322393

Unavailable

6

LH Footrest

518322394

Unavailable

7

RH Slide Bracket

518319742

Unavailable

8

LH Slide Bracket

518319743

Unavailable

9

REAR CAP - Call your local BRP dealership

518321303

Unavailable

10

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

11

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

Unavailable

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

Unavailable

13

FUEL TANK BRACKET - Call your local BRP dealership

518321510

Unavailable

14

RH Frame Reinforcement

518321561

Unavailable

15

LH Frame Reinforcement

518321562

Unavailable

16

Avex Rivet

390909200

$0.30

17

Avex Rivet

390909100

$0.30

18

Pop Rivet 3/16"

390402200

$0.35

19

Pop Rivet 3/16"

390402300

$0.75

20

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

21

RH Bottom Pan Plate | 600

518319760

Unavailable

22

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

23

Hex. Screw M5 X 20

207152044

$0.90

24

Hex. Flange Elastic Nut M5

233251414

$1.04

25

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

26

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

27

Frame Protector

518321543

Unavailable

28

Guide

518319730

Unavailable

29

Double Bracket

518322391

Unavailable

30

Guide

518321604

Unavailable

31

Rear Radiator | Includes 29 - 30.

517296300

Unavailable

32

Radiator Protector

518321655

Unavailable

33

Handle Support

518321957

Unavailable

34

Hex. Flange Screw M6 X 35

207663544

$0.90

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

36

Belt Guard Bracket

518202100

$17.49

37

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

38

Pop Rivet 3/16"

390402200

$0.35

39

CAP - Call your local BRP dealership

414859400

Unavailable

40

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

41

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

42

Plate Bracket

518201307

Unavailable

43

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

44

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

45

Open Clamp

518321570

$7.69

46

Pop Rivet 3/16"

390406500

$0.88

47

Hose Support

518319762

Unavailable

48

Panel Fastener

518321954

$7.69

49

Toe Hold (ADRENALINE) | MX Z 600. MX Z 700. MX Z 800.

518321571

Unavailable

50

Insert

293450275

$12.99

51

Hex. Flange Screw M6 X 16

207661644

$0.74

52

Pop Rivet 3/16"

390402200

$0.35

53

Pop Rivet 3/16"

390402300

$0.75

54

Flat Washer

517225900

$0.18

55

Non-Skid Strip (ADRENALINE) | MX Z 600. MX Z 700. MX Z 800.

518321714

Unavailable

56

Was 271000110 Protection Trim

219704353

$15.99

57

LATCH - Call your local BRP dealership

570069700

Unavailable

58

Tool Kit Support

518321999

Unavailable

59

Cable Support

515175254

Unavailable

60

Pop Rivet 3/16"

390402300

$0.75
