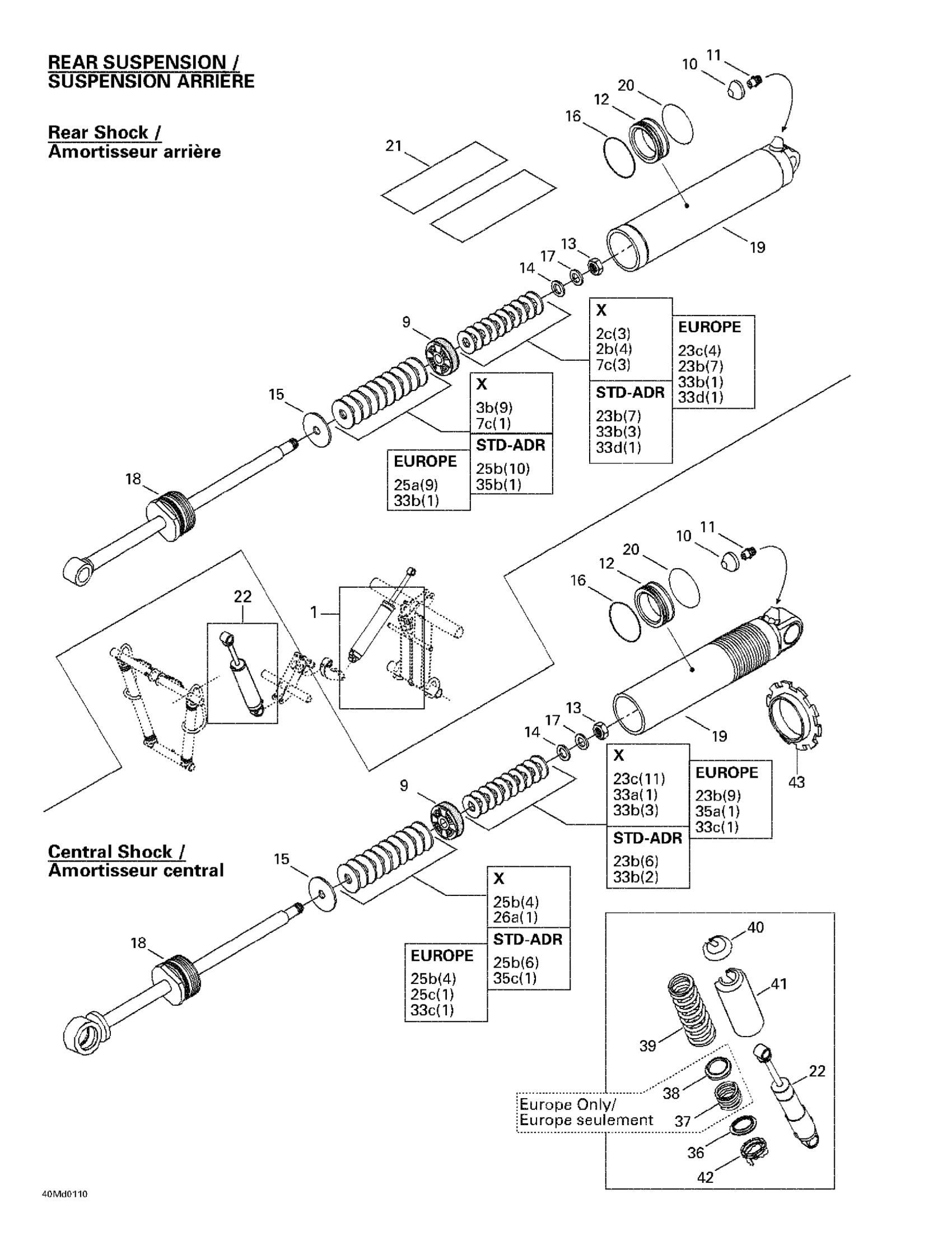

Ski-Doo MX Z 500/600/700, 2001 08- Rear Take Apart Shocks Diagram
#
1
Rear Shock (STD-ADR)
503189677
Unavailable
Rear Shock (Europe)
503189492
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
2A
Leaf Valve Ø40 X 0.254 (C46)
503189041
Unavailable
2B
Leaf Valve Ø40 X 0.203 (C46)
503189040
Unavailable
2C
Leaf Valve Ø40 X 0.152 (C46)
503189039
Unavailable
3A
Leaf Valve Ø36 X 0.254 (C46)
503189038
Unavailable
3B
Leaf Valve Ø36 X 0.203 (C46)
503189037
Unavailable
3C
Leaf Valve Ø36 X 0.152 (C46)
503189036
Unavailable
4A
Leaf Valve Ø30 X 0.305 (C46)
503189035
Unavailable
4B
Leaf Valve Ø30 X 0.254 (C46)
503189034
Unavailable
4C
Leaf Valve Ø30 X 0.203 (C46)
503189033
Unavailable
4D
Leaf Valve Ø30 X 0.152 (C46)
503189032
Unavailable
4E
Leaf Valve Ø30 X 0.114 (C46)
503189031
Unavailable
5A
Leaf Valve Ø28 X 0.305 (C46)
503189030
Unavailable
5B
Leaf Valve Ø28 X 0.254 (C46)
503189029
Unavailable
5C
Leaf Valve Ø28 X 0.203 (C46)
503189028
Unavailable
5D
Leaf Valve Ø28 X 0.152 (C46)
503189027
Unavailable
5E
Leaf Valve Ø28 X 0.114 (C46)
503189026
Unavailable
6A
Leaf Valve Ø26 X 0.305 (C46)
503189025
Unavailable
6B
Leaf Valve Ø26 X 0.254 (C46)
503189024
Unavailable
6C
Leaf Valve Ø26 X 0.203 (C46)
503189023
Unavailable
6D
Leaf Valve Ø26 X 0.152 (C46)
503189022
Unavailable
6E
Leaf Valve Ø26 X 0.114 (C46)
503189021
Unavailable
7A
Leaf Valve Ø24 X 0.305 (C46)
503189020
Unavailable
7B
Leaf Valve Ø24 X 0.254 (C46)
503189019
Unavailable
7C
Leaf Valve Ø24 X 0.203 (C46)
503189018
Unavailable
7D
Leaf Valve Ø24 X 0.152 (C46)
503189017
Unavailable
7E
Leaf Valve Ø24 X 0.114 (C46)
503189016
Unavailable
8A
Leaf Valve Ø22 X 0.305 (C46)
503189015
Unavailable
8B
Leaf Valve Ø22 X 0.254 (C46)
503189014
Unavailable
8C
Leaf Valve Ø22 X 0.203 (C46)
503189013
Unavailable
8D
Leaf Valve Ø22 X 0.152 (C46)
503189012
Unavailable
8E
Leaf Valve Ø22 X 0.114 (C46)
503189011
Unavailable
9
Piston (C46)
503189004
Unavailable
Piston, Ø1.2 (C46)
503189003
Unavailable
Piston, Ø1.7 (C46)
503189002
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
10
Air Valve Cap | MX Z X 440.
503189307
Unavailable
11
AIR VALVE - Call your local BRP dealership
414888314
Unavailable
12
Free Piston
415097900
Unavailable
FREE PISTON - Call your local BRP dealership
503189309
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
O-RING - Call your local BRP dealership
503189007
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
PISTON RING - Call your local BRP dealership
503189006
Unavailable
21
Shock Decal
516000183
Unavailable
22
Center Shock (Europe)
503189491
Unavailable
Center Shock (STD-ADR)
503189678
Unavailable
Center Shock (X) | MX-Z 600. MX-Z 700.
503189610
Unavailable
Center Shock | Grand Touring 500. Grand Touring 600. Grand Touring 700.
503189554
Unavailable
23A
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
23B
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
23C
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
24A
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
24B
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
25A
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
25B
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
25C
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
27A
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
27B
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
28A
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
29A
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
29B
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
29C
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
31A
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
31B
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
32A
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
32B
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
32C
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
32D
Leaf Valve Ø16 x 0.114 (mm) | MX Z X 440.
415093823
Unavailable
33A
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
33B
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
33C
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
33D
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
35A
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
35B
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
35C
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
35D
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
36
Spring Guide | (Summit 800 R (X)) (Europe) Summit 800.
503184300
Unavailable
37
Spring (EUROPE)
503189090
Unavailable
38
Spring Spacer
503182200
Unavailable
39
SPRING - Call your local BRP dealership
503189325
Unavailable
Spring
415090500
Unavailable
43
SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe
414888316
Unavailable
