Description

Price

1

Flange Connector

420810868

$88.99

2

Socket Head Screw M6 x 16

420241237

$2.22

3

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$174.49

4

Demarreur *Rewind Starter | MX-Z 600. MX-Z 700. This part replaces 420810876.

420887448

$270.49

Starter Housing

420910256

$94.99

5

Rewind Spring

420939115

$30.49

6

ROPE SHEAVE - Call your local BRP dealership | MX-Z 700.

420852284

Unavailable

Rope Sheave

420852285

Unavailable

7

Was 412500100 Rope-Starter

219704403

$158.99

8

Key Clamp

420852070

$4.23

9

Pawl

420852633

$33.99

10

PAWL LOCK - Call your local BRP dealership

420852305

Unavailable

11

Stage Sleeve

420847926

$16.33

12

O-Ring

420250400

$5.39

13

Lock Ring

420852520

$9.27

14

Locking Element

420845560

$2.11

15

Torx Flange Screw M6 X 20

420441386

$2.11

16

Molykote PG 54, 10 g

420899763

$21.99

17

Starter Grip

572084400

$14.83

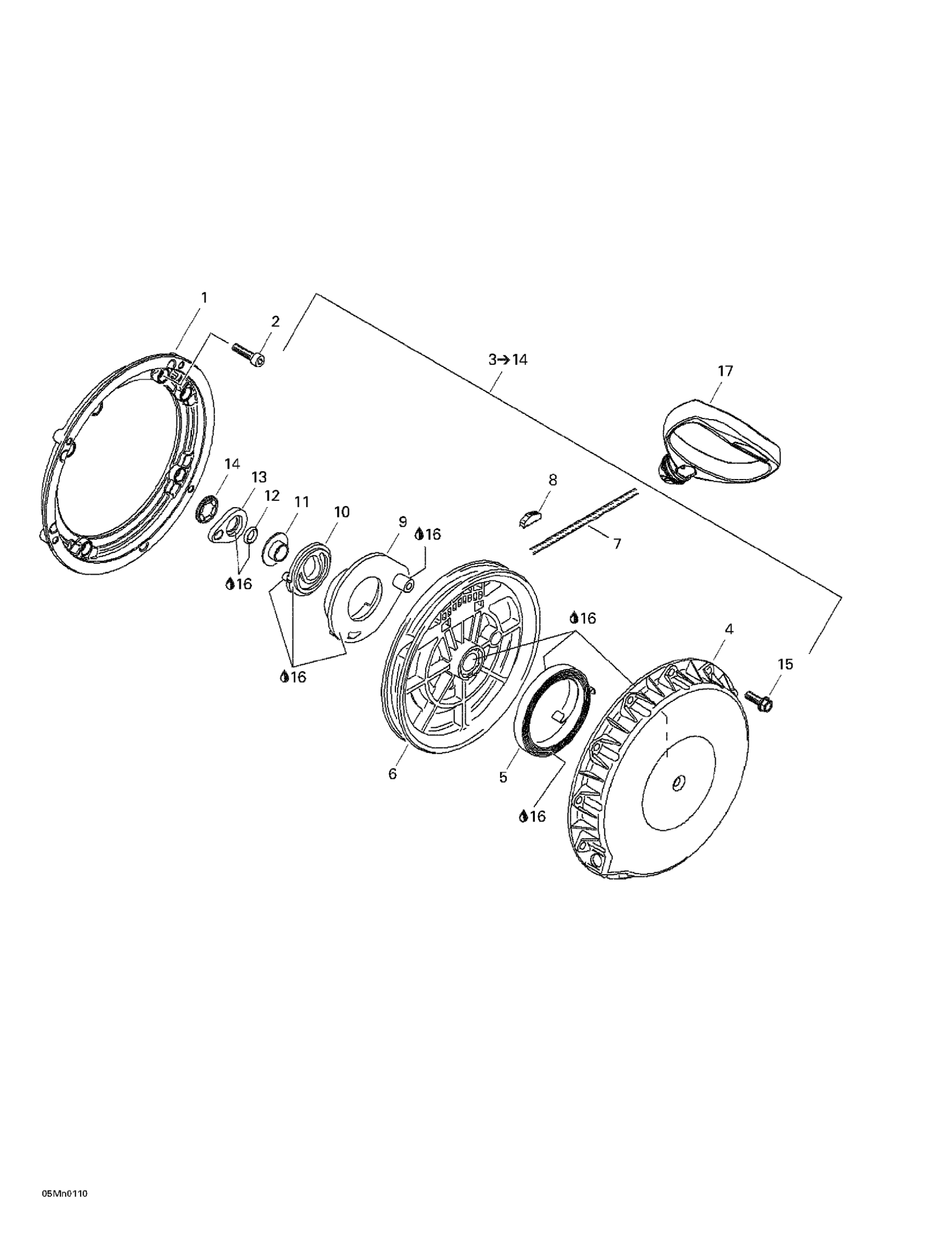

Ski-Doo MX Z 500/600/700, 2001 04- Rewind Starter Diagram

Flange Connector

Socket Head Screw M6 x 16

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

Demarreur *Rewind Starter | MX-Z 600. MX-Z 700. This part replaces 420810876.

Starter Housing

Rewind Spring

ROPE SHEAVE - Call your local BRP dealership | MX-Z 700.

Rope Sheave

Was 412500100 Rope-Starter

Key Clamp

Pawl

PAWL LOCK - Call your local BRP dealership

Stage Sleeve

O-Ring

Lock Ring

Locking Element

Torx Flange Screw M6 X 20

Molykote PG 54, 10 g

Starter Grip
