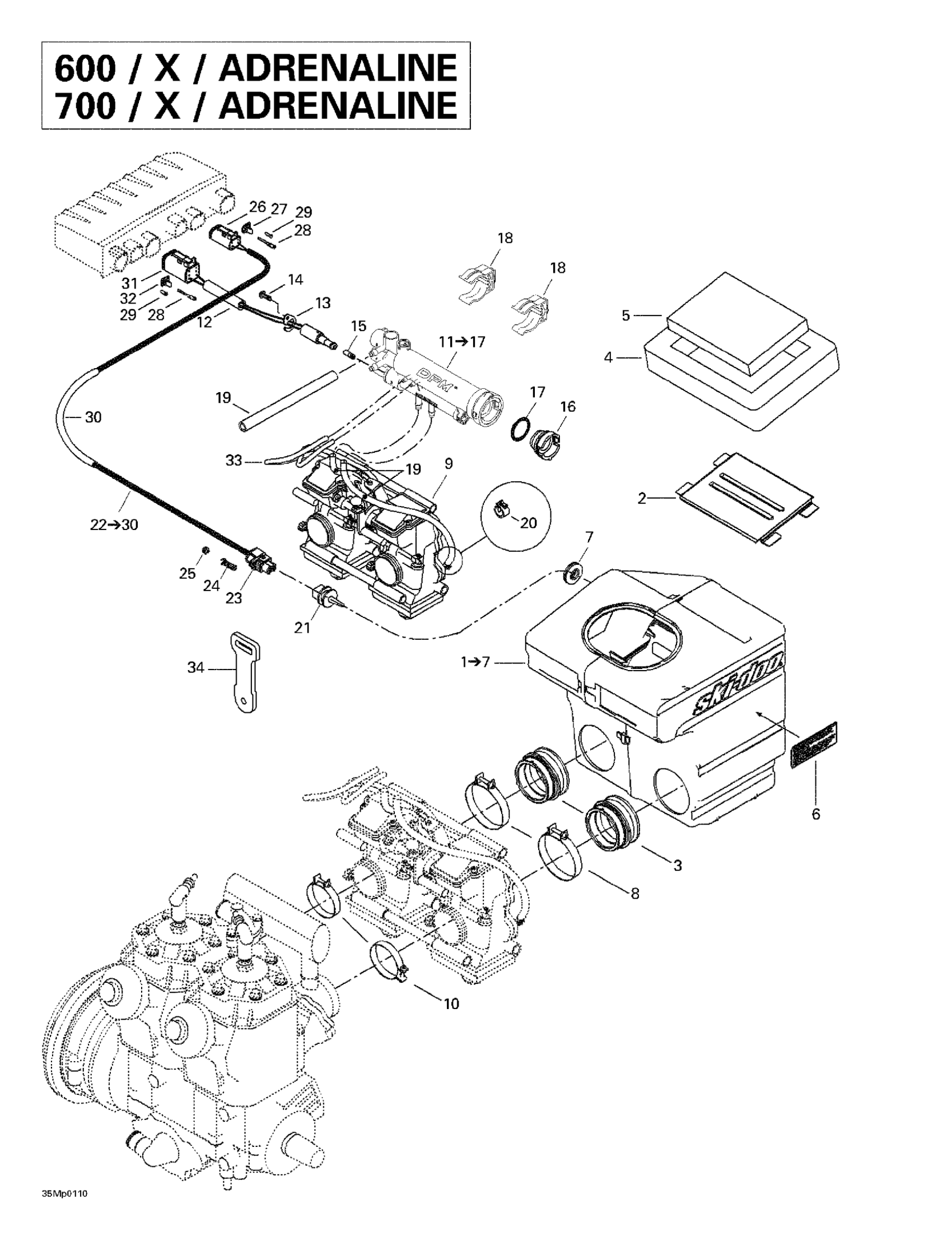

Ski-Doo MX Z 500/600/700, 2001 02- Air Intake System ( X, Adrenaline) Diagram

#

Description
Price

1

Air Intake Ass'y (GSE) | Includes 1 - 8. Formula Deluxe 600.

508000140

Unavailable

Air Intake Ass'y (GSE/GS) | Includes 1 - 8. Formula Deluxe 700.

508000169

Unavailable

2

INTAKE GRILL - Call your local BRP dealership

508000004

Unavailable

3

Air Intake Adaptor, 40 mm

508000092

Unavailable

4

Lower Foam

508000099

Unavailable

5

Air Filter

508000154

$23.49

6

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

7

GROMMET - Call your local BRP dealership

570065500

Unavailable

8

Gemi Clamp

508000346

$10.33

9

Carburetor Kit TM 40 B-91 | MX-Z 600.

403138656

Unavailable

Carburetor Kit TM 40 B-97 | MX-Z 700.

403138658

Unavailable

10

Gemi Clamp

512059835

$11.60

11

Pressure Manifold Ass'y (GSE) | Includes 14 - 26. Formula Deluxe 600.

512059342

Unavailable

Pressure Manifold Ass'y (GSE/GS) | Includes 14 - 26. Formula Deluxe 700.

512059408

Unavailable

12

Pressure Manifold Harness | Includes 4 - 8.

515175271

Unavailable

13

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

14

Screw K40 X 10

241140060

$1.48

15

STARTER JET - Call your local BRP dealership

404161825

Unavailable

16

Cap | Grand Touring 600. Grand Touring 700.

512058949

Unavailable

17

O-Ring | Grand Touring 600. Grand Touring 700.

512058950

Unavailable

18

SUPPORT - Call your local BRP dealership

512058919

Unavailable

19

Polyurethane Hose 10000Mm Long

219704410

$56.99

20

Spring Clamp

414554800

$0.88

21

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

22

Temperature Harness | Includes 33 - 41. Formula Deluxe 600. Formula Deluxe 700.

515175589

Unavailable

23

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515175588

Unavailable

24

Female Terminal

278000998

$4.39

25

Wire Seal

278000999

$3.19

26

Female Terminal Housing (4 circuits)

515175245

Unavailable

27

Female Lock (4 circuits)

515175246

Unavailable

28

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

29

PLUG - Call your local BRP dealership

515175303

Unavailable

30

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

31

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

32

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

33

HOSE - Call your local BRP dealership

404161904

Unavailable

34

CARBURETOR LATCH - Call your local BRP dealership

512059372

Unavailable
