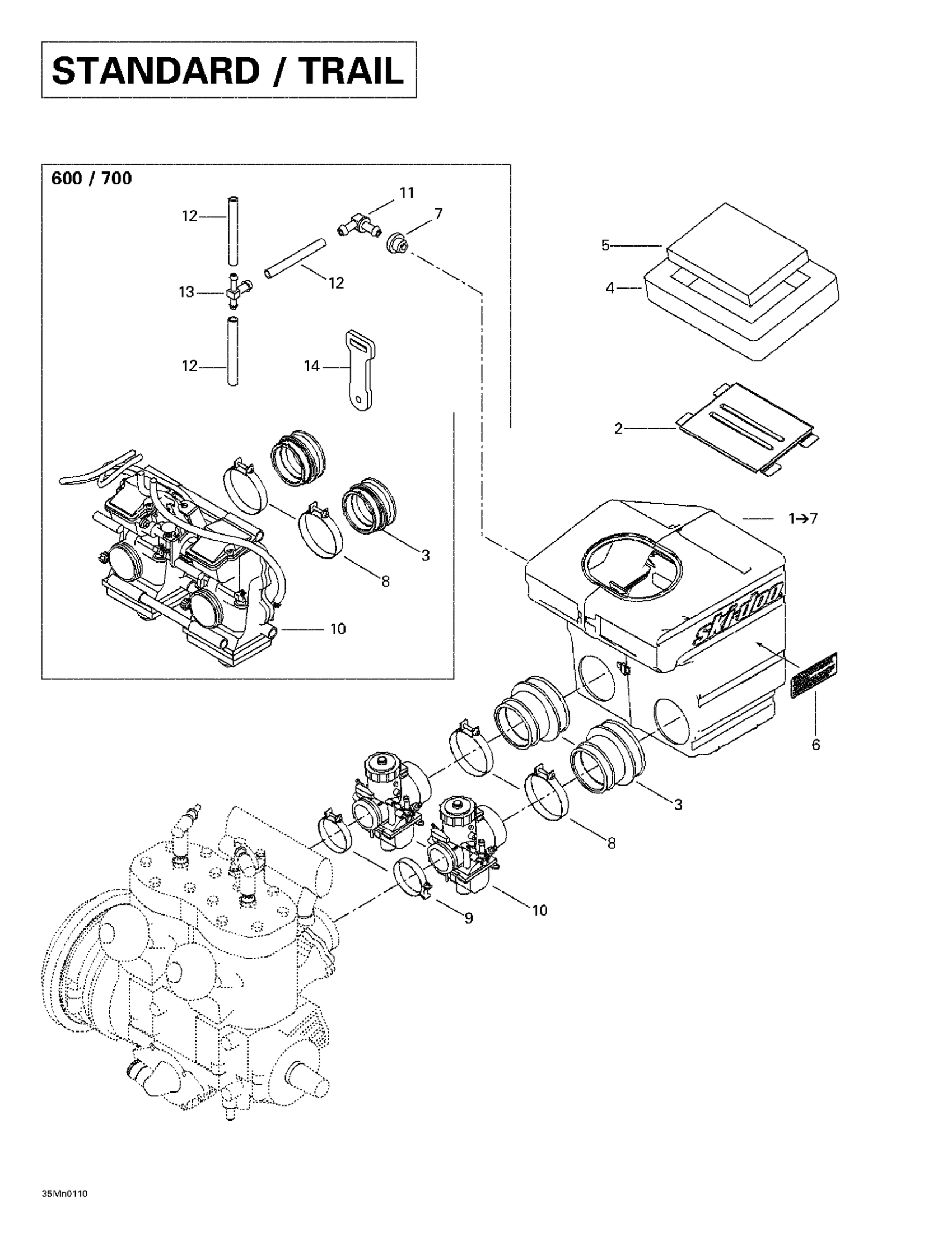

Ski-Doo MX Z 500/600/700, 2001 02- Air Intake System - Standard-trail Diagram

Air Intake Ass'y | Includes 1 - 6. Formula Deluxe 500.

508000153

Unavailable

Air Intake Ass'y (Standard) | Includes 1 - 7. Formula Deluxe 600.

508000139

Unavailable

Air Intake Ass'y | .

508000168

Unavailable

INTAKE GRILL - Call your local BRP dealership

508000004

Unavailable

Air Intake Adaptor (38 mm) | Formula Deluxe 500.

508000073

Unavailable

Air Intake Adaptor, 40 mm

508000092

Unavailable

Lower Foam

508000099

Unavailable

Air Filter

508000154

$23.49

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

Grommet

513032908

$10.49

Clamp | Formula Deluxe 500.

508000046

Unavailable

Gemi Clamp

508000346

$10.33

GEMI CLAMP - Call your local BRP dealership

512059005

Unavailable

Gemi Clamp

512059835

$11.60

VM 38-429 Carburetor | Formula Deluxe 500.

403138581

Unavailable

Carburetor Kit TM 40 B-91 | MX-Z 600.

403138656

Unavailable

Carburetor Kit TM 40 B-97 | MX-Z 700.

403138658

Unavailable

Elbow Male Connector

414580600

$4.23

Polyurethane Hose 10000Mm Long

219704410

$56.99

T-Fitting

572045500

$7.51

CARBURETOR LATCH - Call your local BRP dealership

512059372

Unavailable
