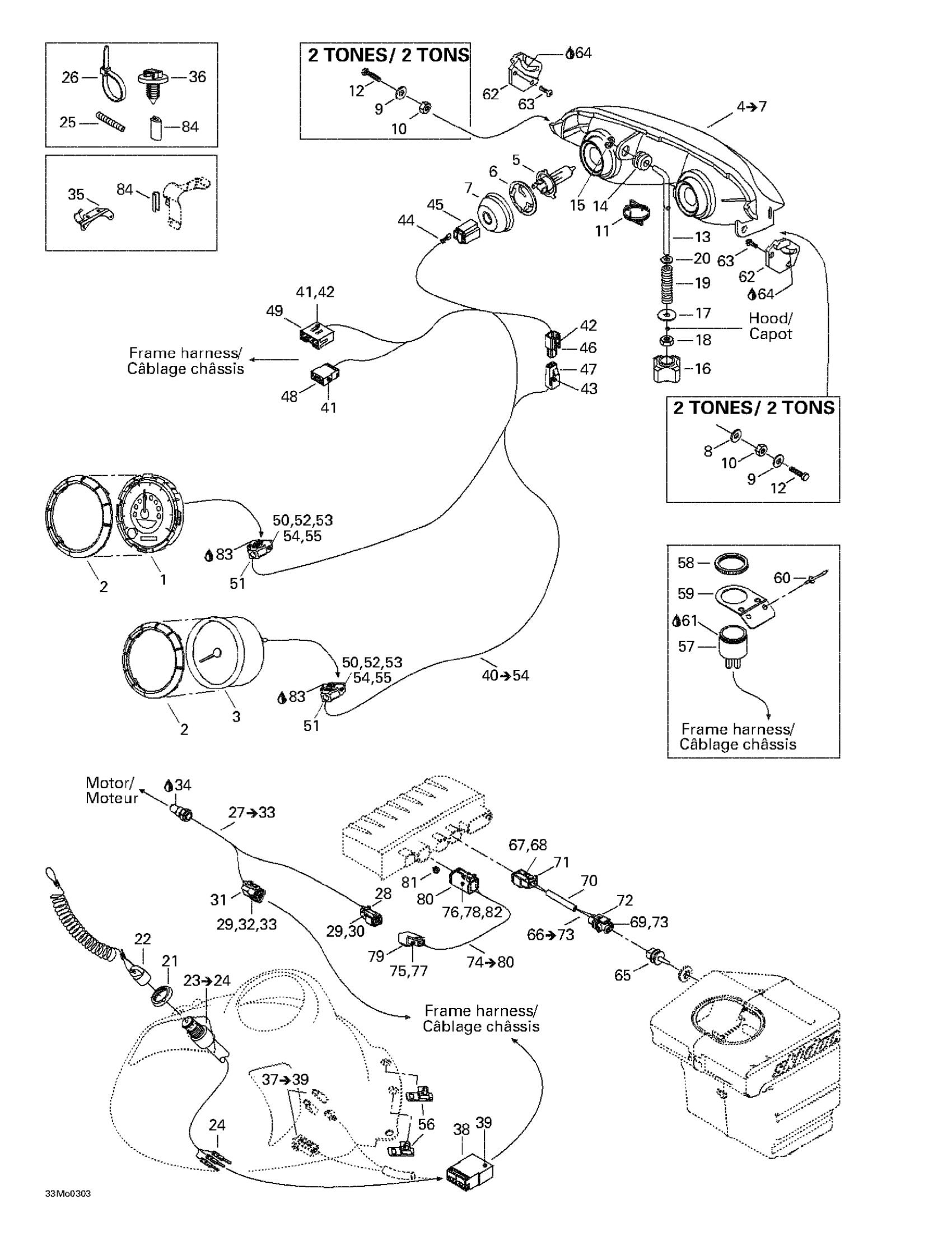

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 10- Electrical System Diagram

#

Description
Price

1

Electronic Speedometer, Kmh

515175942

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

Tachometer

515175943

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

Flat Washer 10 mm

234001410

$1.26

9

Flat Washer M5

234051410

$0.53

10

NUT M5 - Call your local BRP dealership

250100018

$6.99

11

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

12

Hex. Screw M5 X 35

207053544

$1.15

13

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

14

Grommet - Call your local BRP dealership

415100800

Unavailable

15

Push Nut

732610072

$2.19

16

Handle - Call your local BRP dealership

515175548

Unavailable

17

Washer

224060251

$0.58

18

Elastic Stop Nut M6

232561414

$0.55

19

SPRING - Call your local BRP dealership

415100600

Unavailable

20

Flat Washer 6 mm

234061410

$1.36

21

Safety Nut (DESS Switch)

278002963

$3.28

22

DESS

515178284

$84.99

23

DESS SWITCH - Call your local BRP dealership

515175145

$71.99

24

Male Terminal

515175232

$1.58

25

Was 409901800 Tubing (13 mm)

219704400

$14.49

Tubing 10 MM 1000MM Long

219704407

$2.79

Tubing 16 Mm 1000Mm Long

219704408

$7.49

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

26

Tie Wrap 142 mm

293750002

$1.25

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

Tie-Rap 173 mm

293750009

$1.04

27

Temperature Sensor | Includes 48 - 54.

515175930

Unavailable

28

Female Terminal Housing, 2 Circuits

515175670

$8.39

29

Female Terminal

278000632

$2.09

30

Female Lock, 2 Circuits

515175675

$4.55

31

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

32

Female Lock, 3 Circuits

515175676

$5.39

33

Sealing Cap

293000052

$3.19

34

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

35

Cable Support

515175254

Unavailable

36

Mount Dart

293730040

$1.04

37

Console Harness | Includes 58 - 65.

515175826

Unavailable

38

Male Terminal Housing, 6 Circuits

515175662

$8.79

39

Male Terminal

515175232

$1.58

40

Hood Harness | Includes 66 - 84.

515175827

Unavailable

41

Male Terminal

515175232

$1.58

42

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

43

Female Terminal

515175282

$7.86

44

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

45

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

46

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

47

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

48

Male Terminal Housing, 6 Circuits

515175662

$8.79

49

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

50

Plug

515175812

$2.19

51

Female Housing, 24 Circuits

515175801

$9.59

52

Retainer Block

515175802

$11.49

53

Wire Seal

515175803

$2.99

54

BLOCK - Call your local BRP dealership

515175804

Unavailable

55

Female Terminal

515175806

$0.99

56

Housing Support

515175283

$9.19

57

HORN - Call your local BRP dealership

515176035

Unavailable

58

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

59

PLATE - Call your local BRP dealership

515175688

Unavailable

60

Pop Rivet 3/16"

390402200

$0.35

61

Silicone Sealant 51388, 300 ml

296000309

$36.99

62

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

63

Headlamp Screw

732601315

Unavailable

64

Grease Tube Lmz, 400 G

413707500

Unavailable

65

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

66

Temperature Harness | Includes 40 to 47

515175703

Unavailable

67

Female Terminal

278000998

$4.39

68

Wire Seal

278000999

$3.19

69

Female Terminal

278000632

$2.09

70

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

71

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515175588

Unavailable

72

Female Terminal Housing, 2 Circuits

515175670

$8.39

73

Female Lock, 2 Circuits

515175706

Unavailable

74

Sensor Harness | INCLUDES ITEMS 104 TO 110

515175898

Unavailable

75

Male Terminal

278000631

$4.39

76

Female Terminal

278000632

$2.09

77

Male Lock, 2 Circuits

409207500

$3.19

78

Sealing Cap

293000052

$3.19

79

Male Terminal Housing, 2 Circuits

517175665

Unavailable

80

Male Housing, 6 Circuits

515175673

$15.49

81

Sealing Cap

293000052

$3.19

82

Male Wedge, 6 Circuits

515175678

$5.39

83

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

84

Was 271000110 Protection Trim

219704353

$15.99
