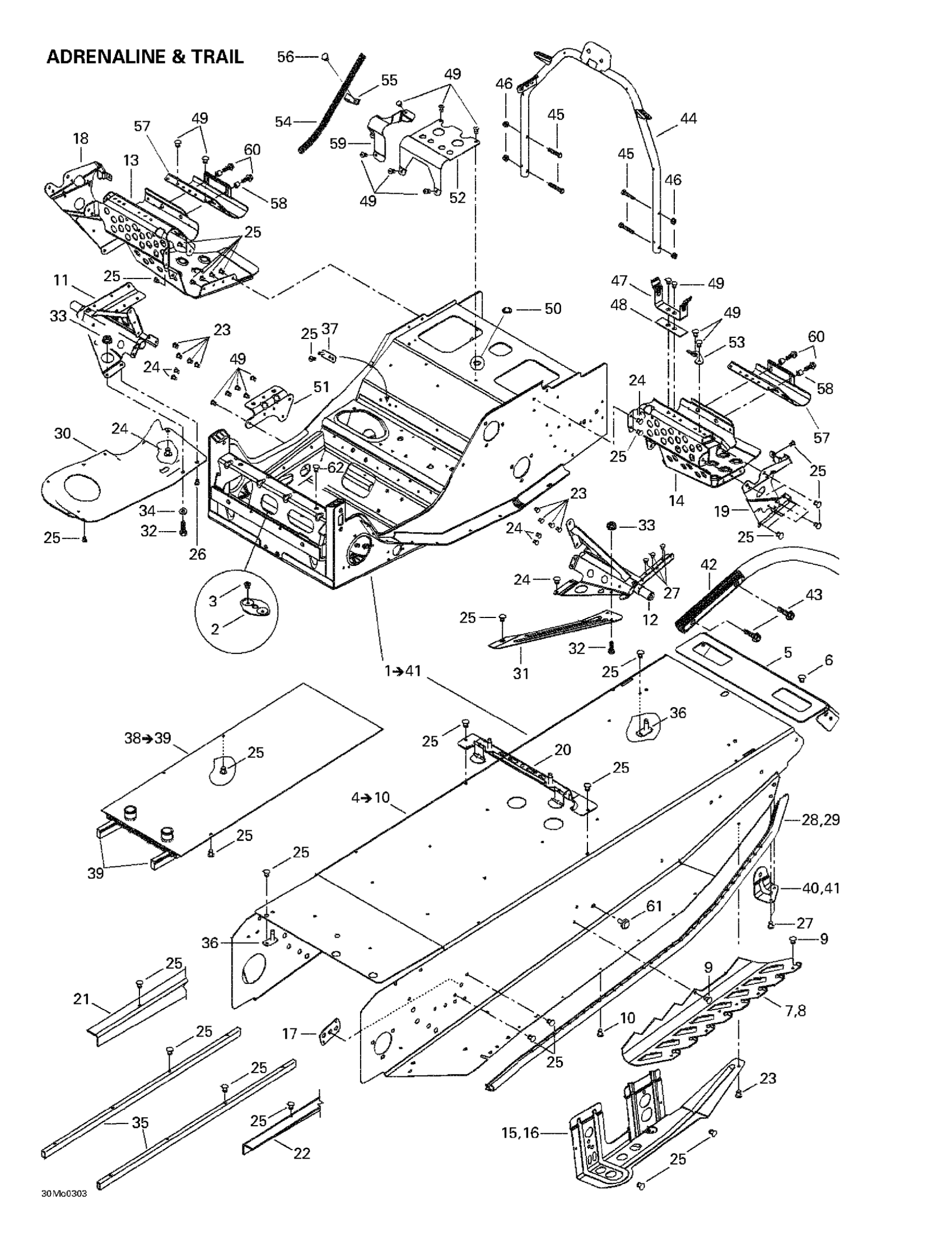

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 09- Frame (Adrenaline And Trail) Diagram

#

Description
Price

1

Frame | Includes 1 - 41. 600 HO/700/800 ADRENALINE MX Z 600. MX Z 700. MX Z 800.

415128547

Unavailable

Frame | 500 ADRENALINE MX Z 500.

415128548

Unavailable

Frame | TRAIL MX Z 500. MX Z 600.

415128549

Unavailable

2

Plate Bracket

518201307

Unavailable

3

Pop Rivet 3/16"

390402200

$0.35

4

Forming frame | Includes 4 - 10.

861802000

Unavailable

5

REAR CAP - Call your local BRP dealership

518321303

Unavailable

6

Pop Rivet 3/16"

390402200

$0.35

7

RH Liner

518322697

Unavailable

8

LH Liner

518322698

Unavailable

9

Pop Rivet 3/16"

390402200

$0.35

10

Pop Rivet 3/16"

390402400

$0.35

11

RH Foot Support

518322845

Unavailable

12

LH Foot Support

518322848

Unavailable

13

RH Footrest

518323253

Unavailable

14

LH Footrest

518323254

Unavailable

15

RH Bracket

518323442

Unavailable

16

LH Bracket

518323444

Unavailable

17

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

18

RH Footrest Reinforcement

518322059

Unavailable

19

LH Footrest Reinforcement

518322063

Unavailable

20

FUEL TANK BRACKET - Call your local BRP dealership

518321510

Unavailable

21

RH Frame Reinforcement

518322593

Unavailable

22

LH Frame Reinforcement

518322594

Unavailable

23

Avex Rivet

390909200

$0.30

24

Avex Rivet

390909100

$0.30

25

Pop Rivet 3/16"

390402200

$0.35

26

Pop Rivet 3/16"

390402300

$0.75

27

Pop Rivet 3/16"

390402400

$0.35

28

RHfootrest | 600 HO/700/800 ADRENALINE MX Z 600. MX Z 700. MX Z 800. 500 ADRENALINE MX Z 500.

518323429

Unavailable

RHfootrest | TRAIL MX Z 500. MX Z 600.

518323430

Unavailable

29

LH Footrest | 600 HO/700/800 ADRENALINE MX Z 600. MX Z 700. MX Z 800. 500 ADRENALINE MX Z 500.

518323432

Unavailable

LH Footrest | TRAIL MX Z 500. MX Z 600.

518323433

Unavailable

30

RH BOTTOM PAN PLATE - Call your local BRP dealership

518322636

Unavailable

RH Bottom Pan Plate | 600

518319760

Unavailable

31

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

32

Hex. Screw M5 X 20

207152044

$0.90

33

Hex. Flange Elastic Nut M5

233251414

$1.04

34

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

35

Frame Protection

518323390

Unavailable

36

Seat Bracket

518323321

Unavailable

37

Double Bracket

518323173

Unavailable

38

Rear Radiator | Includes 15 - 16. Legend 500.

518322901

Unavailable

39

Radiator Protector

518321655

Unavailable

40

RH Reinforcement

518322808

Unavailable

41

LH Reinforcement

518322810

Unavailable

42

Rear Bumper

518322888

Unavailable

43

Hex. Flange Screw M8 X 20

207682044

$1.15

44

Handle Support

518322755

Unavailable

45

Hex. Flange Screw M6 X 40

207664044

$2.22

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

47

Belt Guard Bracket

518202100

$17.49

48

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

49

Pop Rivet 3/16"

390402200

$0.35

50

CAP - Call your local BRP dealership

414859400

Unavailable

51

Muffler Support

518322635

Unavailable

52

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

53

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

54

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

55

Open Clamp

518321570

$7.69

56

Pop Rivet 3/16"

293150103

$0.55

57

Toe-Hold

518323504

Unavailable

58

Insert

293450275

$12.99

59

Hose Support

518322699

Unavailable

60

Hex. Flange Screw M6 X 16

207661644

$0.74

61

Panel Fastener

518321954

$7.69

62

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable
