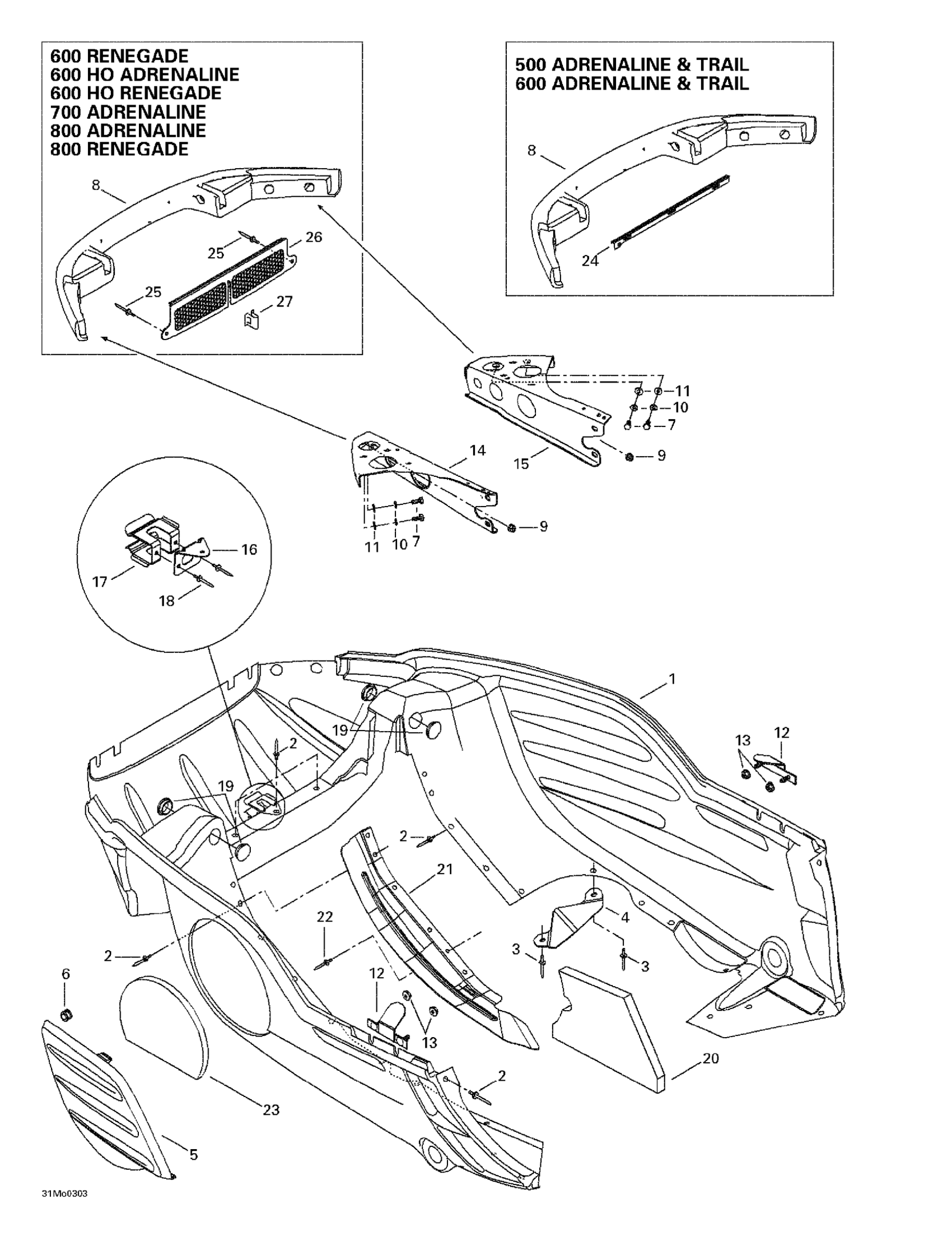

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 09- Bottom Pan Diagram

#

Description
Price

1

Bottom Pan | B-190 YELLOW

502006632

Unavailable

Deep Black, Bottom Pan

502006633

Unavailable

Bottom Pan | B-176 RED

502006663

Unavailable

2

Pop Rivet 3/16”

293150108

$1.19

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4

Snow Deflector | RENEGADE MX Z 600. MX Z 800.

502006637

Unavailable

5

BOTTOM PAN DOOR, BLACK, B-160 - Call your local BRP dealership

502006506

Unavailable

Bottom Pan Door | B-190 YELLOW

502006511

Unavailable

Bottom Pan Door | B-176 RED

502006664

Unavailable

6

Grommet

414036300

$2.79

7

Hex. Screw M6 X 14

207161444

$0.58

8

Bumper

502006535

Unavailable

Bumper, Black

502006719

$101.49

Bumper, Black

502006719

$101.49

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Lock Washer M6, Black

234161471

$0.53

11

Flat Washer

224061121

$0.53

12

LH Bracket

502006645

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

LH SUPPORT - Call your local BRP dealership

502006597

Unavailable

15

RH Support

502006602

Unavailable

16

Belt Support

502006599

Unavailable

17

Bracket

517281905

$18.49

18

Pop Rivet 3/16"

390402400

$0.35

19

Black, Nylon Cap

414916600

$4.69

20

Bottom Foam

502006558

Unavailable

21

Bottom Pan Protector | 700 / WITH GRILL

502006593

Unavailable

22

Pop Rivet 3/16"

390402200

$0.35

23

Bottom Pan Door Foam

502006559

Unavailable

24

Bottom Pan Reinforcement

502006647

Unavailable

25

Pop Rivet 3/16"

293150103

$0.55

26

Center Grille | 700 / WITH GRILL

502006697

Unavailable

27

Edge Clip

517302785

$0.88
