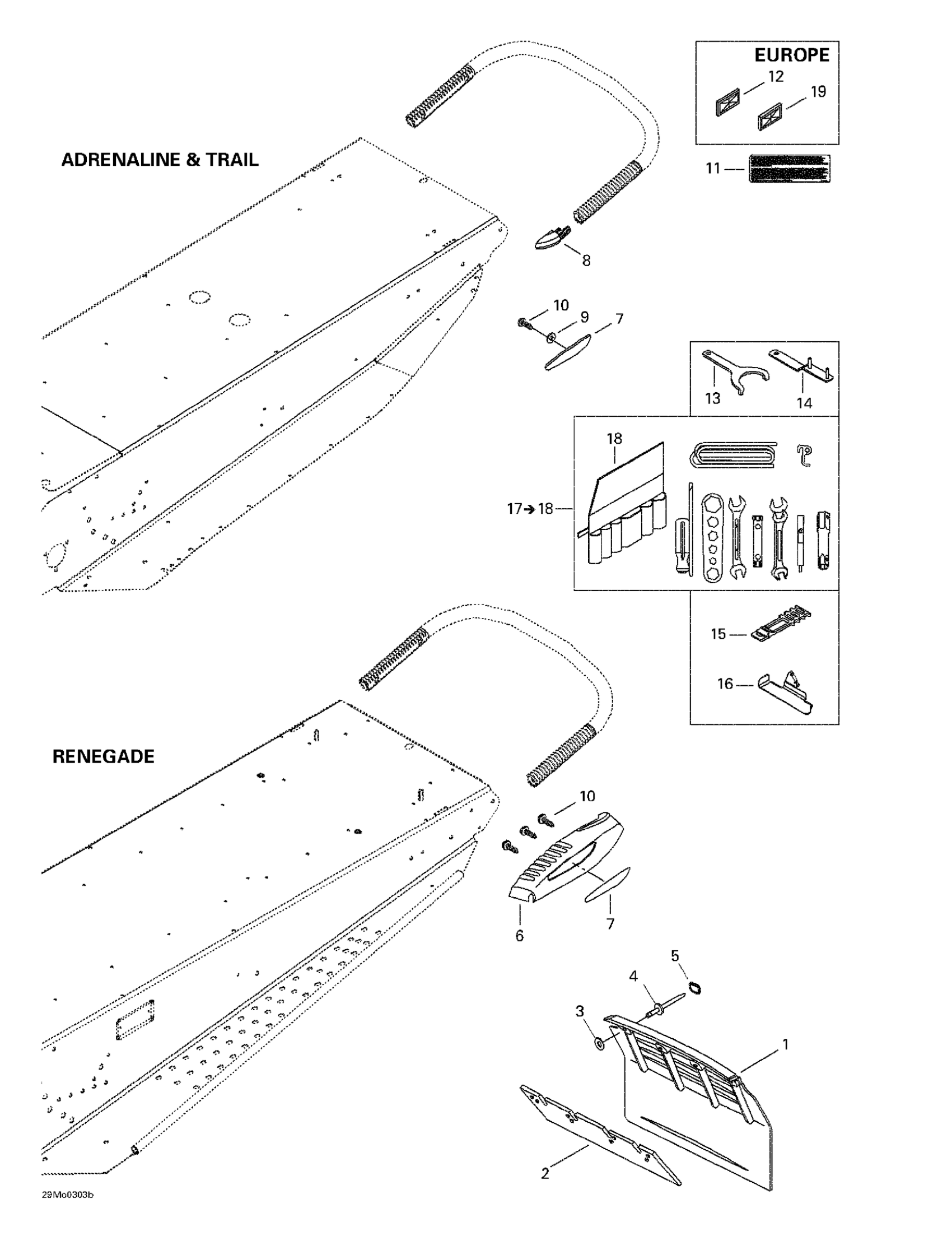

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 09- Accessories Diagram

#

Description
Price

1

Snow Guard | ADRENALINE & TRAIL

572103803

Unavailable

Snow Guard

520000000

Unavailable

SNOW GUARD - Call your local BRP dealership

572092100

Unavailable

Snow Guard

572103804

Unavailable

2

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

3

Flat Washer

517225900

$0.18

4

Pop Rivet 3/16”

293150087

$0.93

5

Cap

415073300

Unavailable

6

RH Moulding | RENEGADE

572097300

Unavailable

LH Moulding | RENEGADE

572097400

Unavailable

7

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

RH Reflector, Red

516000237

Unavailable

RH Reflector, Yellow, Europe | SE GT Europe

516000241

Unavailable

LH Reflector, Red

516000238

Unavailable

LH Reflector, Yellow, Europe | SE GT Europe

516000242

Unavailable

8

CAP - Call your local BRP dealership

520000272

Unavailable

9

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

10

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

11

Pending Label

516001681

Unavailable

12

Amber, Reflector

520000271

$19.99

13

Adjustment Wrench

529000035

$2.09

14

Adjustment Wrench | LT

520000126

$1.49

15

LATCH - Call your local BRP dealership

570069700

Unavailable

16

Tool Kit Support

518321999

Unavailable

17

Tool Kit | Includes 12 to 13

529035596

$27.99

18

Tool Bag

520000047

Unavailable

19

White, Reflector

415037900

$22.99
