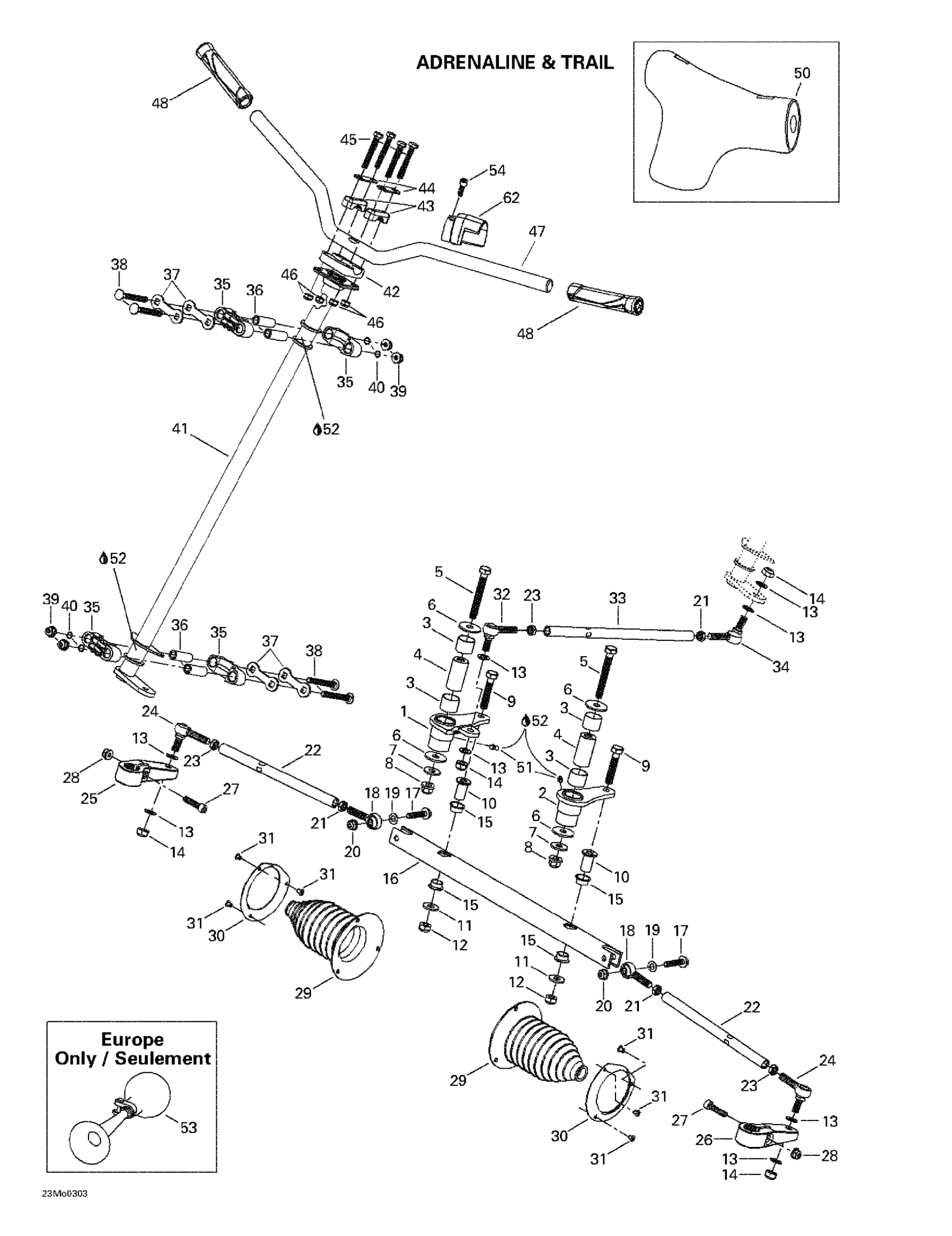

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 07- Steering System (Adrenaline And Trail) Diagram

#

Description
Price

1

RH Swivel Arm

506151506

Unavailable

2

LH SWIVEL ARM - Call your local BRP dealership

506151623

Unavailable

3

BUSHING SWIVEL - Call your local BRP dealership

506149900

Unavailable

4

PIVOT SWIVEL - Call your local BRP dealership

506150100

Unavailable

5

Hex. Screw M10 X 80

207008086

$3.38

6

Washer 10 mm

506150000

$2.74

7

Flat Washer M10 | 4X4

250200014

$1.49

8

Flange Nut M10

732610084

$6.79

9

Hex. Screw M10 X 55

207005544

$2.22

10

BAR PIVOT - Call your local BRP dealership

506147300

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.69

13

Washer

503175800

$3.28

14

Elastic Flange Nut M10

232501416

$1.48

15

Swivel Bushing

503191555

$7.83

16

Bar-Swivel

506147000

Unavailable

17

Hex. Flange Screw M8 X 40

207684044

$1.48

18

LH BALL JOINT - Call your local BRP dealership

506151496

Unavailable

19

Washer

506151252

$3.17

20

Hex. Flange Elastic Nut M8

233281414

$1.47

21

LH Threaded Hex. Jam Nut M10

250100016

$0.74

22

Tie-Rod

506151374

Unavailable

23

RH Threaded Hex. Jam Nut M10

732610010

$0.74

24

Ball Joint

506151491

$45.99

25

RH STEERING ARM - Call your local BRP dealership

506145800

Unavailable

26

LH STEERING ARM - Call your local BRP dealership

506145900

Unavailable

27

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

TIE-ROD CAP - Call your local BRP dealership

570070500

Unavailable

30

RETAINER RING - Call your local BRP dealership

506151100

Unavailable

31

Pop Rivet 3/16"

390402300

$0.75

32

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

33

TIE-ROD - Call your local BRP dealership

506151375

Unavailable

34

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

35

Housing Half

506150400

$7.62

36

Housing Bushing

506150500

$7.99

37

Stopper Plate

506150600

$4.39

38

Carriage Bolt M8 X 70

207787044

$1.37

39

Hex. Flange Elastic Nut M8

233281414

$1.47

40

O-RING - Call your local BRP dealership

506151140

Unavailable

41

Main Tube

506147100

Unavailable

42

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

43

Steering Support

709400919

$22.49

44

Stiffner

709400509

$4.69

45

Hex. Screw M8 X 55

207085544

$1.68

46

Hex. Elastic Stop Nut M8

232581414

$0.56

47

Handle Bar

506151677

Unavailable

48

Handle Grip

506152238

$78.49

49

ADAPTATOR - Call your local BRP dealership

506151566

Unavailable

50

Steering Pad

506151602

Unavailable

51

Grease Fitting

408200700

$3.49

52

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

53

Horn

549011291

$35.99

54

SOCKET SET SCREW M8 X 12 - Call your local BRP dealership

206581244

Unavailable
