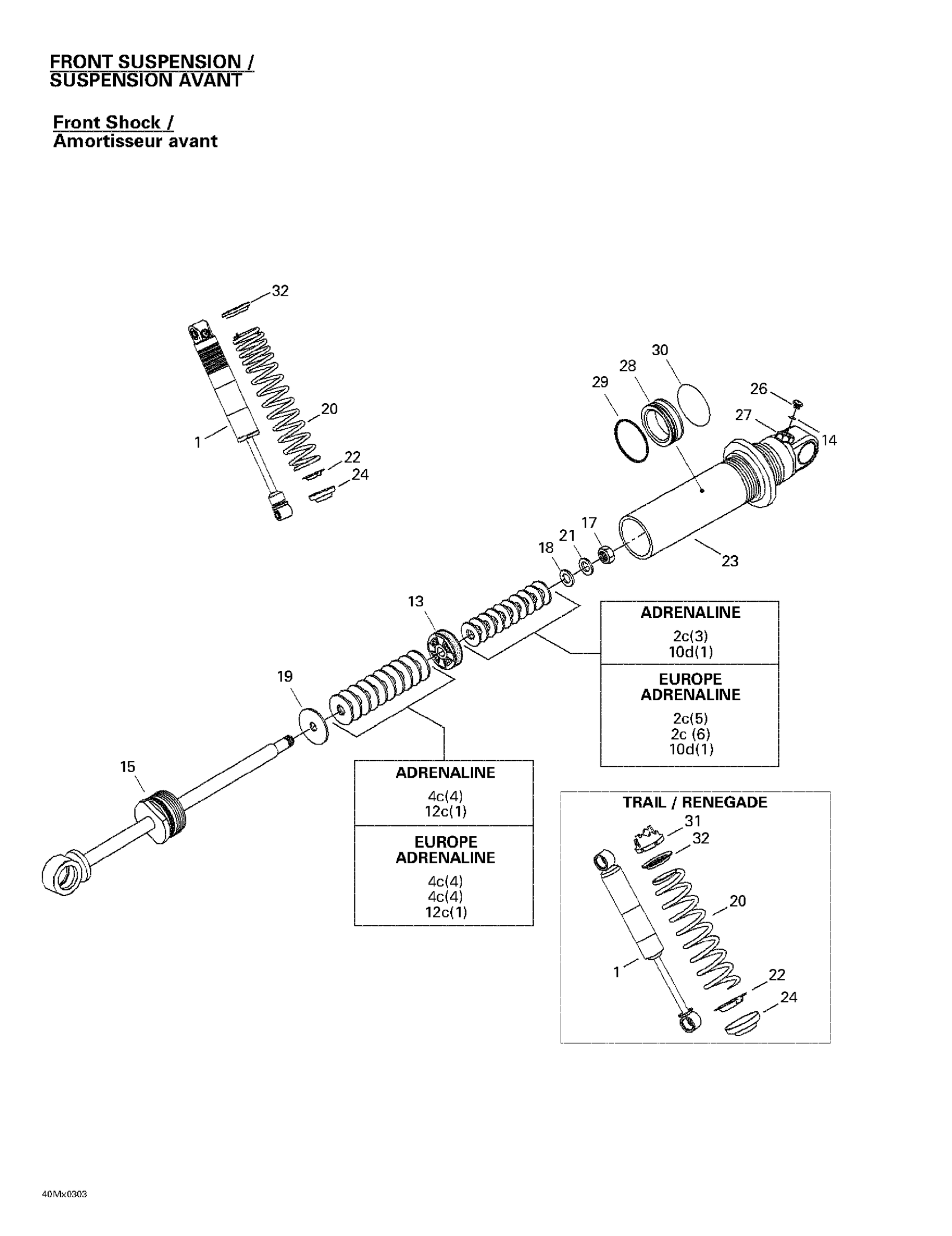

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 07- Front Take Apart Shocks Diagram
#
1
Front Shock | ADRENALINE
505071111
Unavailable
Front Shock | EUROPE-ADRENALINE MX Z 500.
505071127
Unavailable
FRONT SHOCK ASSY - Call your local BRP dealership
505071113
Unavailable
FRONT SHOCK - Call your local BRP dealership | RENEGADE MX Z 600. MX Z 800.
505071112
Unavailable
Front Shock | EUROPE-RENEGADE MX Z 800.
505071128
Unavailable
EUROPE-RENEGADE | MX Z 700.
EUROPE-RENEGADE
Unavailable
2A
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
2B
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
2C
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
3A
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
3B
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
4A
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
4B
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
4C
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
5A
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
5B
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
6A
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
7A
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
7B
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
7C
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
8A
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
8B
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
9A
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
9B
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
9C
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
9D
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
10A
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
10B
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
10C
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
10D
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
11A
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
11B
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
11C
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
11D
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
12A
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
12B
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
12C
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Spring
505070393
Unavailable
Spring | ADRENALINE. EUROPE-ADRENALINE MX Z 500.
505070852
Unavailable
Spring | RENEGADE MX Z 600.. EUROPE-RENEGADE MX Z 800.
505070758
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
28
FREE PISTON - Call your local BRP dealership
503189309
Unavailable
