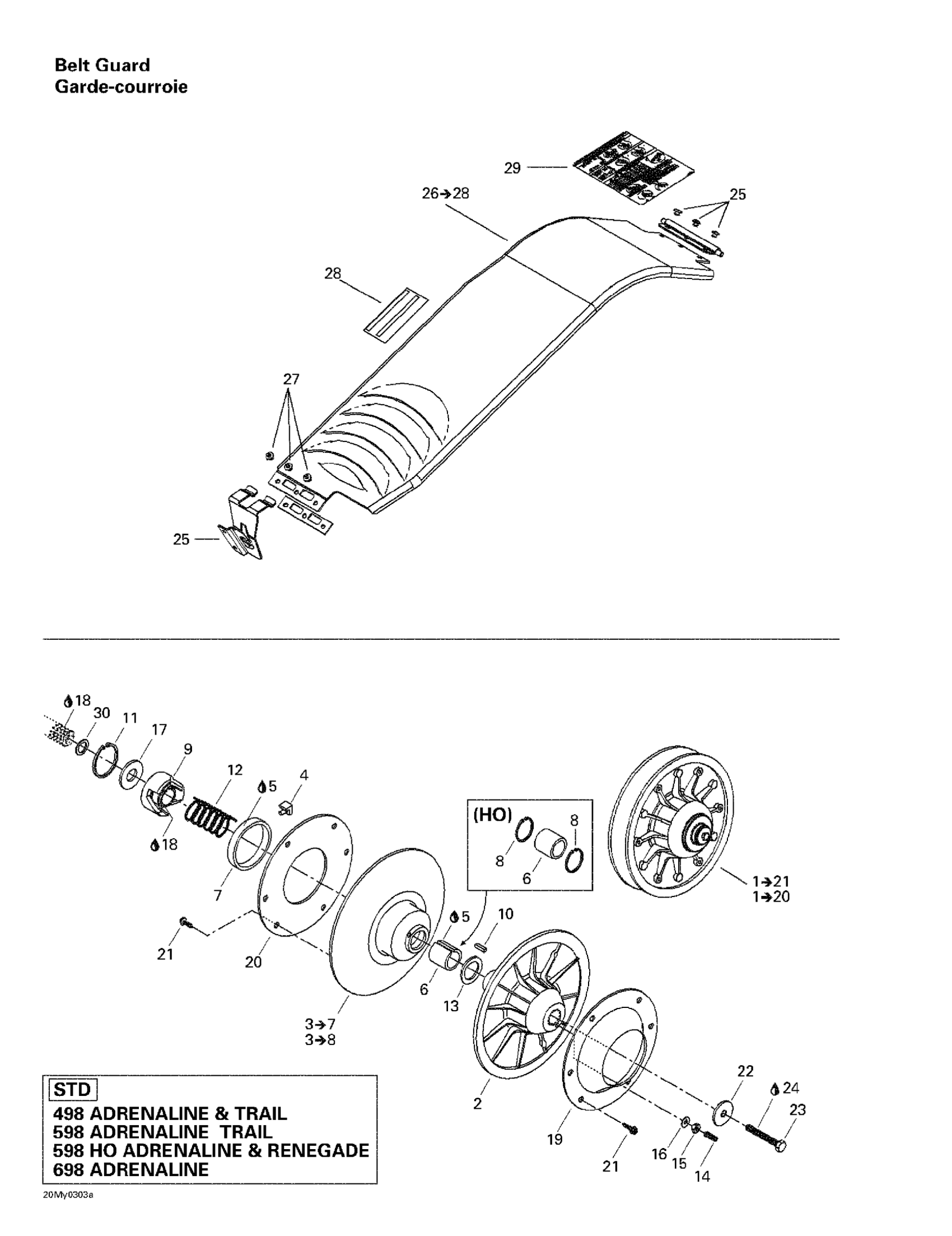

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 05- Driven Pulley (STD) Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Fixed Flange | 380 F.
417126477
Unavailable
Fixed Flange
417126499
Unavailable
3
Sliding Flange Ass’Y | Includes 3 - 7.
417126486
Unavailable
3
Sliding Flange Ass’Y | Includes items 36 to 41
417126501
Unavailable
4
CAM SLIDER SHOE - Call your local BRP dealership
414918000
Unavailable
6
BUSHING - Call your local BRP dealership
415011200
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
7
GARLOCK BUSHING - Call your local BRP dealership
414876600
Unavailable
Cushion
417126514
Unavailable
8
CIRCLIP - Call your local BRP dealership This part replaces 619100033.
371911200
Unavailable
9
Cam 42° | STD 500 ADRENALINE & TRAIL MX Z 500. MX Z 600.
417126590
Unavailable
Cam 47° | STD 600 ADRENALINE & TRAIL MX Z 500. MX Z 700.
417126337
Unavailable
Came
417126704
Unavailable
Cam 48/44° | STD 700 ADRENALINE MX Z 500. MX Z 800.
417126585
Unavailable
10
Key
414820800
Unavailable
11
CIRCLIP - Call your local BRP dealership
371903100
Unavailable
12
RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige
414558900
Unavailable
RELEASE SPRING, WHITE - Call your local BRP dealership
504152070
Unavailable
13
Thrust Washer
504141900
Unavailable
14
Socket Set Screw M6 X 30
206263044
Unavailable
16
WASHER - Call your local BRP dealership
420245370
Unavailable
17
Washer
504141800
Unavailable
Washer
417126555
Unavailable
18
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
19
CUP - Call your local BRP dealership
504142000
Unavailable
20
Ring
504142100
Unavailable
21
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership
210251180
Unavailable
23
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
25
Bracket
417300001
Unavailable
26
Belt Guard Ass’Y | Includes Items 2 to 4
417300173
Unavailable
28
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership
516002670
Unavailable
29
Decal, Suspension Adjustment
516001639
Unavailable
