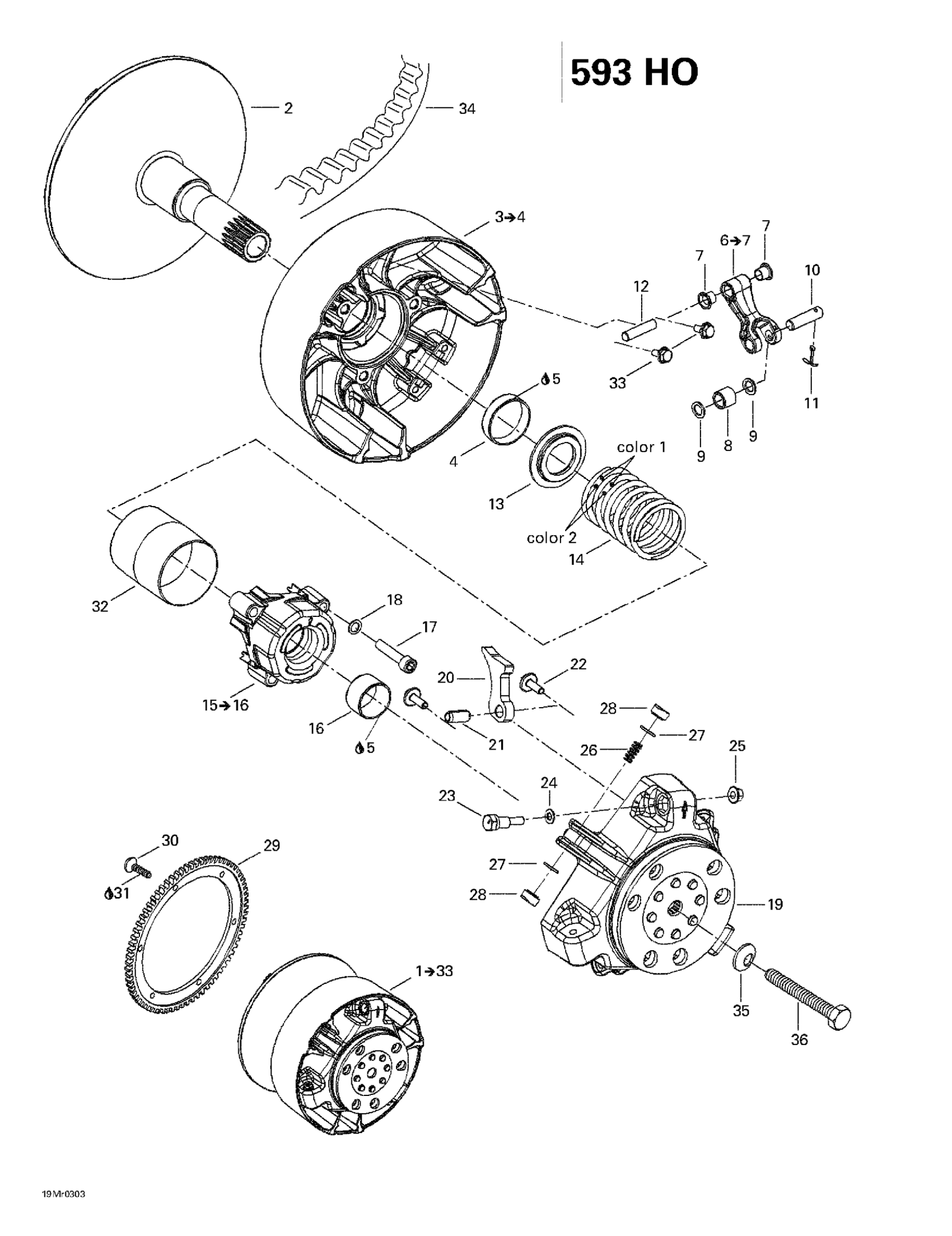

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 Drive Pulley (593 HO) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$214.90

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$188.03

4

Bushing

417222758

$20.12

5

Loctite 609, 10 ml

413703100

$23.85

6

Lever | Includes 10f to 10g

417222671

$46.24

7

Bushing

417004305

$8.76

8

Roller

417222947

$19.37

9

Stopper Washer

417004302

$15.64

10

Pin

417004308

$12.79

11

Cotter Pin

250400060

$1.84

12

Lever Axle

417223164

$4.12

13

Spring Seat

417222312

$8.03

14

Spring, Violet/blue

415034900

$41.01

15

Spring Cover Ass'y | Includes 10r to 10t

417007500

$44.75

16

Bushing

417009204

$15.64

17

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

18

Lock Washer 8 mm

250200009

$2.00

19

Regulator Cup | MX Z 600.

417222214

Unavailable

20

RAMP 410 - Call your local BRP dealership

417222596

Unavailable

21

Spring Pin M10 X 22

250400050

$2.73

22

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.75

23

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

24

Washer

417005600

$3.75

25

Hex. Flange Nut M6

233061414

$1.54

26

Spring

417005700

$4.51

27

O-Ring

732401030

$0.93

28

Slider Shoe This part replaces 420460045.

417223021

$5.99

29

Ens This part replaces 861790500.

861791800

$191.01

30

HEX. TORX SCREW M8 X 14.5 - Call your local BRP dealership

250000049

Unavailable

31

Loctite 271, 10 ml

293800005

$23.85

32

Guard

417009205

$16.39

33

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.75

34

Drive Belt

417300586

$138.03

35

Spring Washer 14 mm

250200006

$6.66

36

Drive Pulley Bolt

417120000

$61.91
