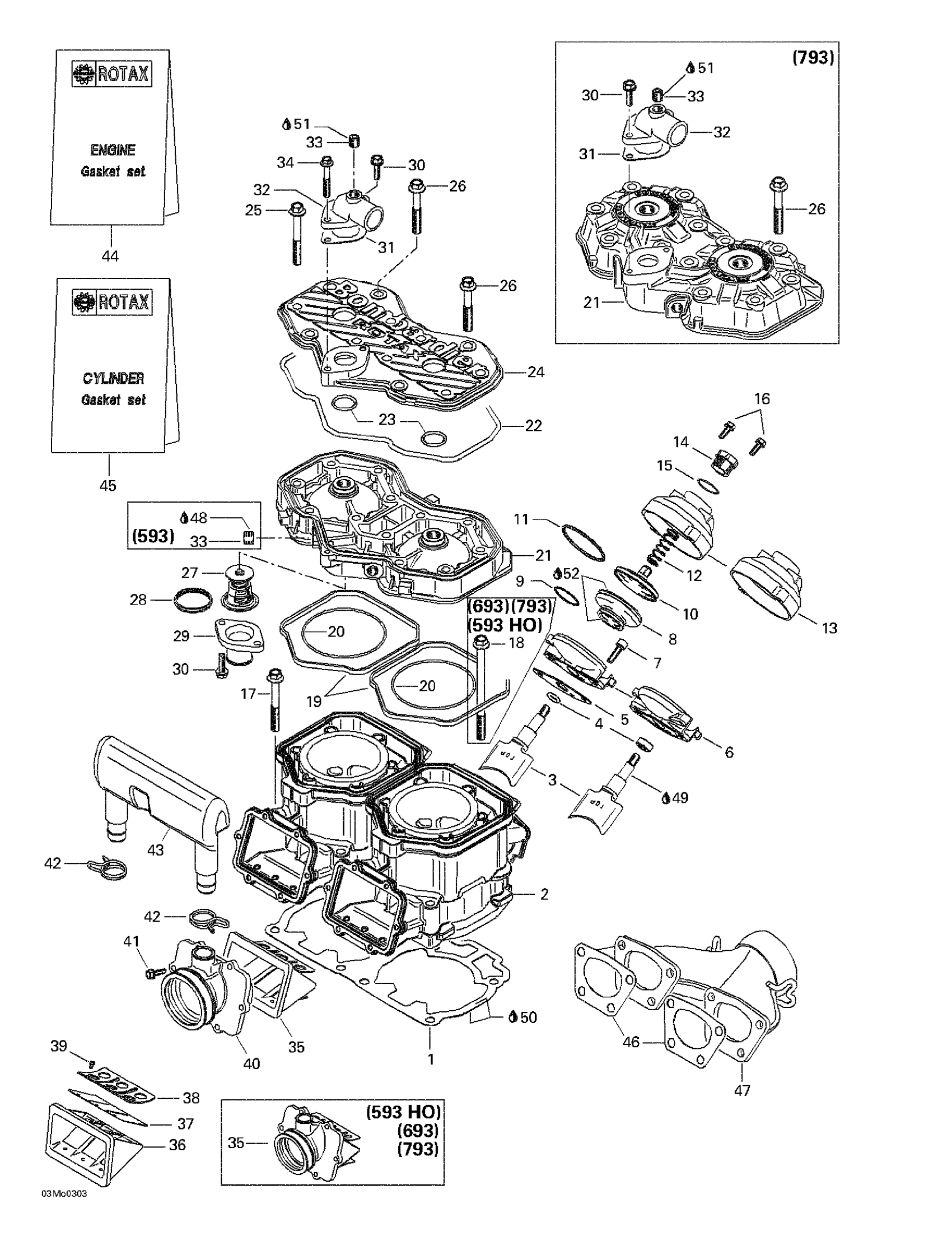

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 Cylinder, Exhaust Manifold, Reed Valve Diagram

#

Description
Price

1

DOUBLE GASKET 0.8 MM - Call your local BRP dealership | Grand Touring 500.

420931589

Unavailable

Gasket 0.8 mm

420431423

$25.35

Double Gasket 0.8 mm

420431163

$23.05

Double Gasket 0.8 mm

420431163

$23.05

GASKET 0.8 - Call your local BRP dealership

420931839

Unavailable

DOUBLE GASKET 0.7 MM - Call your local BRP dealership | Grand Touring 500.

420931960

Unavailable

Gasket 0.7 mm

420431422

$26.89

Gasket 0.7 mm

420431162

$23.05

Gasket 0.7 mm

420431162

$23.05

GASKET 0.7 - Call your local BRP dealership

420931964

Unavailable

DOUBLE GASKET 0.6 MM - Call your local BRP dealership | Grand Touring 500.

420931587

Unavailable

Gasket 0.6 mm

420431421

$19.20

Gasket 0.6 mm

420431161

$23.05

Gasket 0.6 mm

420431161

$23.05

GASKET 0.6 - Call your local BRP dealership

420931837

Unavailable

DOUBLE GASKET 0.5 MM - Call your local BRP dealership | Grand Touring 500.

420931588

Unavailable

Gasket 0.5 mm

420431420

$23.82

Gasket 0.5 mm

420431160

$16.89

Gasket 0.5 mm

420431160

$16.89

GASKET 0.5 - Call your local BRP dealership

420931838

Unavailable

GASKET 0.4 MM - Call your local BRP dealership

420931581

Unavailable

2

Cylinder With Sleeve | Grand Touring 500.

420613605

Unavailable

2

REBUILD-CYLINDER 493 2000 - Call your local BRP dealership

421000568

Unavailable

Cylinder With Sleeve

420613628

$439.99

Cylinder With Sleeve

420613628

$439.99

NICASIL CYLINDER - Call your local BRP dealership

420613710

Unavailable

Cylinder With Sleeve, Nicasil

420923695

Unavailable

CYLINDER-NICASIL - Call your local BRP dealership | MX Z 800.

420923817

Unavailable

REBUILD-CYLINDER 793 2002 - Call your local BRP dealership

421000579

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership | Grand Touring 500.

420854490

Unavailable

Exhaust Valve

420854371

$57.66

Exhaust Valve

420854650

$66.89

EXHAUST VALVE - Call your local BRP dealership

420854332

Unavailable

EXHAUST VALVE - Call your local BRP dealership

420854465

Unavailable

4

O-Ring

420430110

$3.61

O-Ring

420430110

$3.61

Oil Seal | Included in gasket kit

420950732

$8.34

5

Gasket

420250239

$6.62

Gasket

420931542

$6.62

Gasket

420931542

$6.62

6

Valve Housing

420854455

$75.99

Valve Housing

420854266

$93.82

Valve Housing

420854455

$75.99

7

Socket Head Screw M6 X 20

205062044

$1.07

Socket Head Screw M6 X 25

205062544

$0.88

Socket Head Screw M6 X 25

205062544

$0.88

8

Exhaust Bellows

420260723

$35.07

Bellows

420260729

$37.66

Bellows

420260729

$37.66

9

Hose Spring This part replaces 420838253.

420838255

$6.11

10

Exhaust Valve This part replaces 290253257.

420854449

$29.87

11

Hose Spring This part replaces 420239048.

420939281

$5.99

12

SPRING - Call your local BRP dealership

420239948

Unavailable

Spring This part replaces 420239944.

420239954

$7.31

SPRING - Call your local BRP dealership

420239941

Unavailable

13

Valve Cover

420911552

$37.66

Valve Cover This part replaces 420911558.

420911559

$24.02

Valve Cover This part replaces 420911558.

420911559

$24.02

14

Adjuster Screw

420241221

$12.52

15

O-Ring

420430220

$8.03

O-Ring

420430220

$8.03

16

Hex. Tapping Screw M5 X 20

420841555

$1.68

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.05

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.05

17

Hex. Collar Screw

420640524

$11.52

Hex. Collar Screw

420640524

$11.52

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$6.09

18

Hex. Collar Screw

420640534

$13.58

Hex. Collar Screw

420640534

$13.58

19

Rubber Ring

420931590

$5.69

20

O-Ring | Grand Touring 500.

420831792

$15.35

O-Ring This part replaces 420850540.

293300026

$2.67

O-RING - Call your local BRP dealership

420931840

$12.11

O-Ring | Included in gasket kit

420931410

$2.67

21

Cylinder Head, Silver | Grand Touring 500.

420923885

Unavailable

CYLINDER HEAD - Call your local BRP dealership

420613845

Unavailable

CYLINDER HEAD, SILVER - Call your local BRP dealership

420613700

Unavailable

Cylinder Head, Silver

420613840

Unavailable

Cylinder Head Cover, Silver

420923825

Unavailable

22

O-Ring This part replaces 290950320.

420950320

$11.48

23

O-Ring

420430782

$4.41

24

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

25

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.34

26

Hex. Screw M8 X 56.5

420941627

$8.34

27

Thermostat This part replaces 414834100.

420922519

$59.20

28

Sealing Ring

420931272

$15.35

29

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

30

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.65

31

Gasket

420850338

$10.28

32

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

33

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

34

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

35

Reed Valve Ass'y

420924519

$50.74

35

Carburetor Socket | INCLUDES ITEMS 34 TO 37

420867873

$248.43

Carburetor Socket | MX Z 600.

420867874

$245.35

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Reed Pedal

420924680

$37.66

Reed Pedal

420924532

$43.82

38

Reed Pedal Stop

420924539

$11.52

Reed Pedal Stop

420924695

$13.58

39

Phillips Screw M3 X 5

420941215

$1.42

40

CARBURETOR SOCKET - Call your local BRP dealership

420867882

Unavailable

41

Taptite Screw M5 X 16

420941928

Unavailable

42

CLAMP - Call your local BRP dealership

420851440

Unavailable

43

Intake Resonator

420867817

Unavailable

44

ENGINE GASKET SET - Call your local BRP dealership | Grand Touring 500.

420888722

Unavailable

Gasket Set, Engine

420893070

$209.97

Gasket Set, Engine

420889931

$245.35

Engine Gasket Set

420888604

Unavailable

Gasket Engine Kit

420888741

$276.89

45

CYLINDER GASKET SET - Call your local BRP dealership | Grand Touring 500.

420888726

Unavailable

Gasket Set, Cylinder

420893075

$166.89

Gasket Set, Cylinder

420889936

$170.74

Cylinder Gasket Set

420888608

Unavailable

CYLINDER GASKET - Call your local BRP dealership

420888745

Unavailable

46

GASKET - Call your local BRP dealership | Grand Touring 500.

420931615

Unavailable

Gasket

420931610

$11.38

Gasket

420850552

$7.92

Gasket

420850552

$7.92

Gasket

420931850

$11.78

47

Exhaust Manifold | Grand Touring 500.

420973650

Unavailable

Exhaust Manifold

420979543

Unavailable

Exhaust Manifold | 700

420973593

Unavailable

Exhaust Manifold | 700

420973593

Unavailable

Exhaust Manifold | MX Z 800.

420973714

Unavailable

48

Loctite 243, 10 ml

293800060

$20.77

49

Molykote G-N, 50 g

420297433

$22.72

50

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

51

Sealing Compound Loctite 5366 310Ml

420297907

$54.57

52

Dow Corning 111, 150 g

413707000

$57.82
