Description

Price

1

Crankshaft Ass’Y | Includes 1 - 11. Grand Touring 500.

420888465

Unavailable

Crankshaft Ass'y | Includes 1 to 9

420890971

$851.99

1

Crankshaft Ass'y | Includes 1 to 9

420890971

$851.99

REBUILD-CRANKSHAFT 693/593HO - Call your local BRP dealership This part replaces 420889097.

421000609

Unavailable

REBUILD-CRANKSHAFT 693/593HO - Call your local BRP dealership This part replaces 420889097.

421000609

Unavailable

Crankshaft Ass’Y | MX Z 800.

420889102

Unavailable

2

Ball Bearing

420832596

$97.49

Ball Bearing Sealed, 6207

420832673

$101.49

Ball Bearing Sealed, 6207

420832673

$101.49

3

Ball Bearing 6206

420832590

$48.49

Ball Bearing 6207 | With drive pin

420832575

$52.99

Ball Bearing 6207 | With drive pin

420832575

$52.99

4

Oil Seal

420931795

$17.63

5

Lock Washer, 22 mm

420945759

$1.90

6

Hex. Nut, M22 X 1.5

420842239

$17.53

7

Ball Bearing Sealed, 6207

420832673

$101.49

Ball Bearing | With drive pin

420832602

$104.99

Ball Bearing | With drive pin

420832602

$104.99

8

Retaining Disk

420927710

$7.41

Washer

420926190

$11.63

Washer

420926190

$11.63

9

Ball Bearing 6207 | With drive pin

420832575

$52.99

Ball Bearing 6208 | With drive pin

420832600

$79.49

Ball Bearing 6208 | With drive pin

420832600

$79.49

Bearing_Ball - Call your local BRP dealership | MX Z 800.

420832601

Unavailable

10

Oil Seal This part replaces 290831952.

420831952

$18.01

Oil Seal | Included in gasket kit

420931284

$23.49

Oil Seal | Included in gasket kit

420931284

$23.49

11

Woodruff Key

420246015

$3.17

12

Needle Bearing

420832320

$30.49

Needle Bearing

420832445

$27.49

13

Piston Ass’y, 1 Ring 69.40 mm | Includes 16 - 17. Grand Touring 500.

420888445

Unavailable

OVERSIZE PISTON ASS?Y, 1 RING 69.65 MM - Call your local BRP dealership | Grand Touring 500.

420888446

Unavailable

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

420889173

$169.99

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

420889174

$169.99

Piston Ass'y With Rings, 71.87 mm | Includes 13 to 14

420892388

$228.99

Piston Ass’y, 1 Ring 77.88 mm | INCLUDES ITEMS 13 TO 14

420888298

Unavailable

Piston 81 | Includes 13 to 14 This part replaces 420889456.

420889457

$228.99

14

SEMI-TRAPEZ RING 69.50 MM - Call your local BRP dealership | Grand Touring 500.

420815043

Unavailable

Oversize Semi-Trapez Ring 69.75 mm | Grand Touring 500.

420815044

Unavailable

Semi-Trapez Ring, Standard

420815155

$51.99

Semi-Trapez Ring, 1st

420815156

$51.99

Semi-Trapez Ring

420815295

$63.99

SEMI-TRAPEZ RING - Call your local BRP dealership

420815226

Unavailable

SEMI-TRAPEZ RING - Call your local BRP dealership

420815360

Unavailable

15

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

Piston Pin

420916412

$30.99

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

16

Piston Circlip

420945735

$4.46

Piston Circlip

420845106

$3.93

17

Ball Bearing 6206

420832590

$48.49

Ball Bearing 6207 | With drive pin

420832575

$52.99

Ball Bearing 6207 | With drive pin

420832575

$52.99

18

Oil Seal | Included in gasket kit

420931940

$30.49

Oil Seal

420931455

$35.99

Oil Seal

420931455

$35.99

19

Central Gear, 15 Teeth

420834350

$104.99

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

20

CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.

420818665

Unavailable

CRANKSHAFT PTO - Call your local BRP dealership

420818709

Unavailable

CRANKSHAFT PTO - Call your local BRP dealership

420818709

Unavailable

CRANKSHAFT (PTO) - Call your local BRP dealership This part replaces 420819032.

420819030

Unavailable

21

Crankshaft This part replaces 420818693.

420818697

$255.49

CRANKSHAFT, MAG SIDE - Call your local BRP dealership

420818739

Unavailable

CRANKSHAFT, MAG SIDE - Call your local BRP dealership

420818739

Unavailable

Crankshaft, Mag

420819061

Unavailable

22

Rod Repair Kit, Mag Side | Grand Touring 500.

420888463

Unavailable

Rod Repair Kit, MAG Side

420890973

$313.99

Rod Repair Kit, Mag Side

420889093

Unavailable

Rod Repair Kit, Mag Side

420889093

Unavailable

Rod Repair Kit, Mag

420889108

Unavailable

ROD REPAIR KIT, PTO SIDE - Call your local BRP dealership | Grand Touring 500.

420888464

Unavailable

Rod Repair Kit, PTO Side

420890974

$313.99

Rod Repair Kit, PTO Side

420889094

Unavailable

Rod Repair Kit, PTO Side

420889094

Unavailable

Rod Repair Kit, PTO

420889109

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Sealant Loctite 648

219703000

$45.99

26

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

27

Petamo Grease, GHY133N, 400 g

420899271

$67.99

28

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99

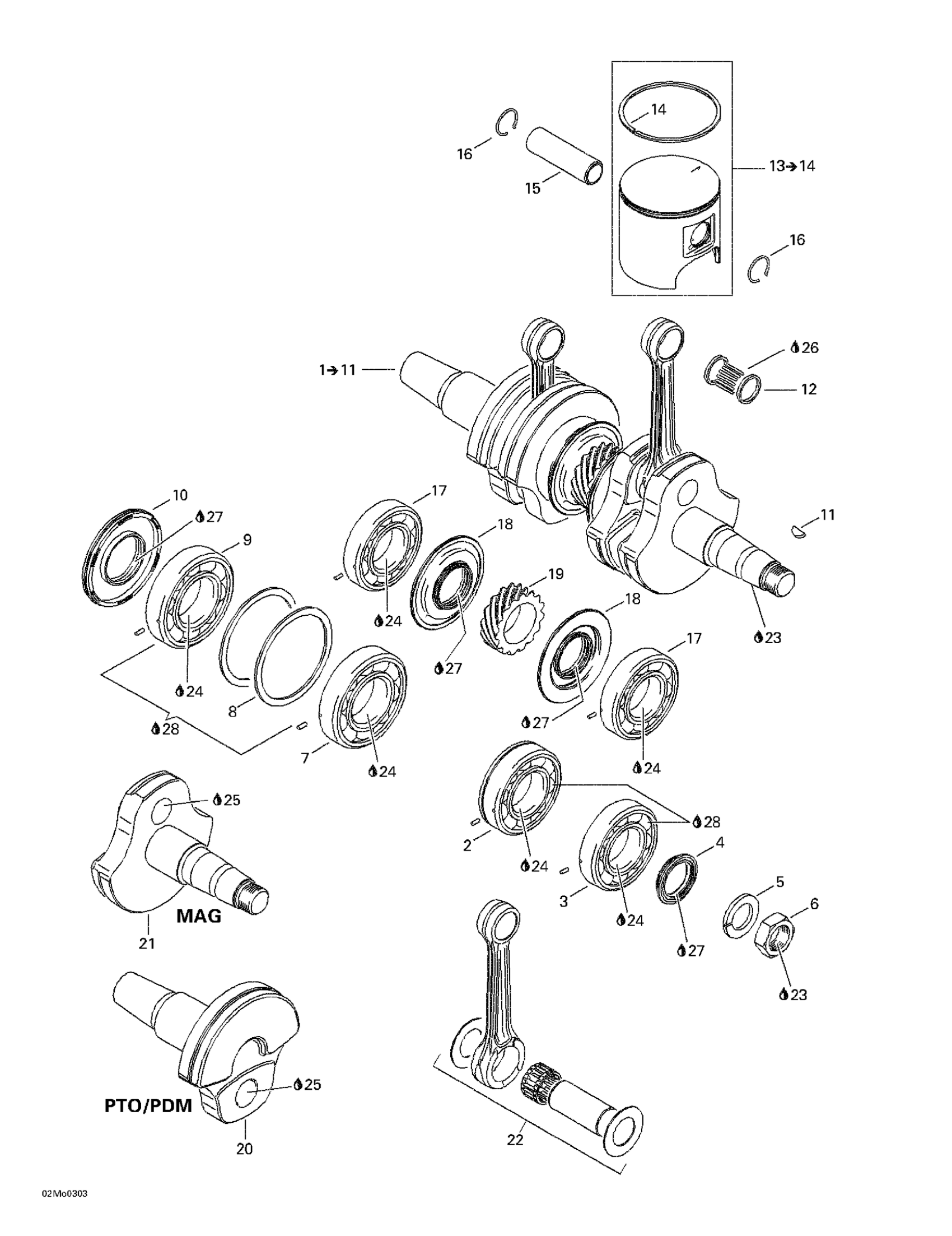

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 01- Crankshaft And Pistons Diagram
