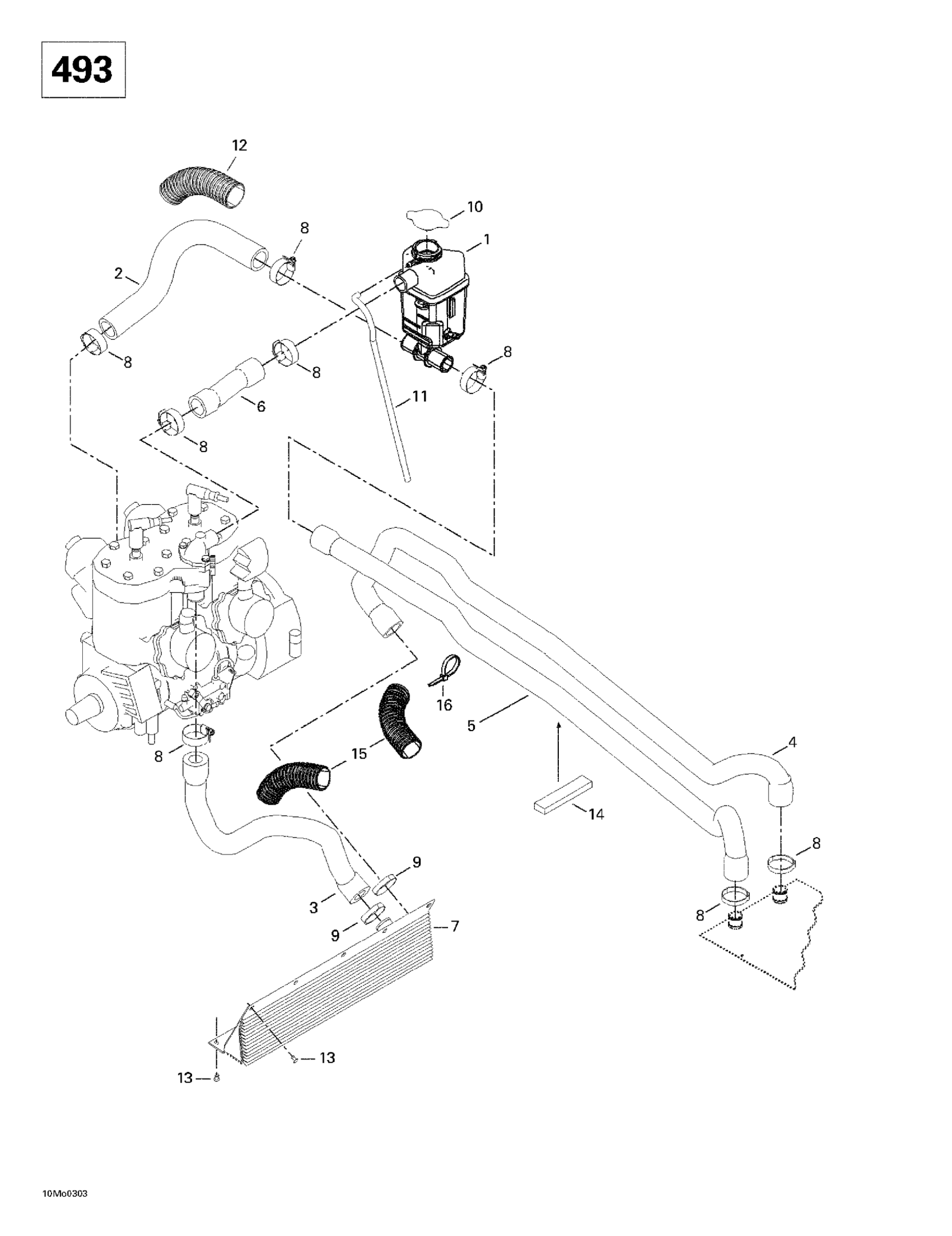

Ski-Doo MX Z 500/600/600 HO/700/800, 2003 01- Cooling System (493) Diagram

#

Description
Price

1

Tank Coolant | Grand Touring 500. This part replaces 509000133.

509000134

$91.99

2

ENGINE INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000135

Unavailable

3

ENGINE OUTLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000046

Unavailable

4

RADIATOR INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000003

Unavailable

5

Radiator Outlet Hose | Grand Touring 500.

509000004

Unavailable

6

Deviation Hose | Grand Touring 500.

509000112

Unavailable

7

Front Radiator | Grand Touring 500.

517297100

Unavailable

8

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

9

Oetiker Gear Clamp 36.1MM

509000045

$8.29

10

Pressure Cap

509000187

$29.49

11

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

12

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

13

Pop Rivet 3/16"

390402200

$0.35

14

Neoprene Seal (1PAC=3M)

219704364

$27.49

15

Tubing 25 MM 1000MM Long

219704402

$15.99

16

Tie Wrap 368 mm

293750008

$1.04
