2000 Ski-Doo MX Z 440 Cab, Console Diagram

← All diagrams

Find the part on the Cab, Console diagram for your 2000 Ski-Doo MX Z 440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

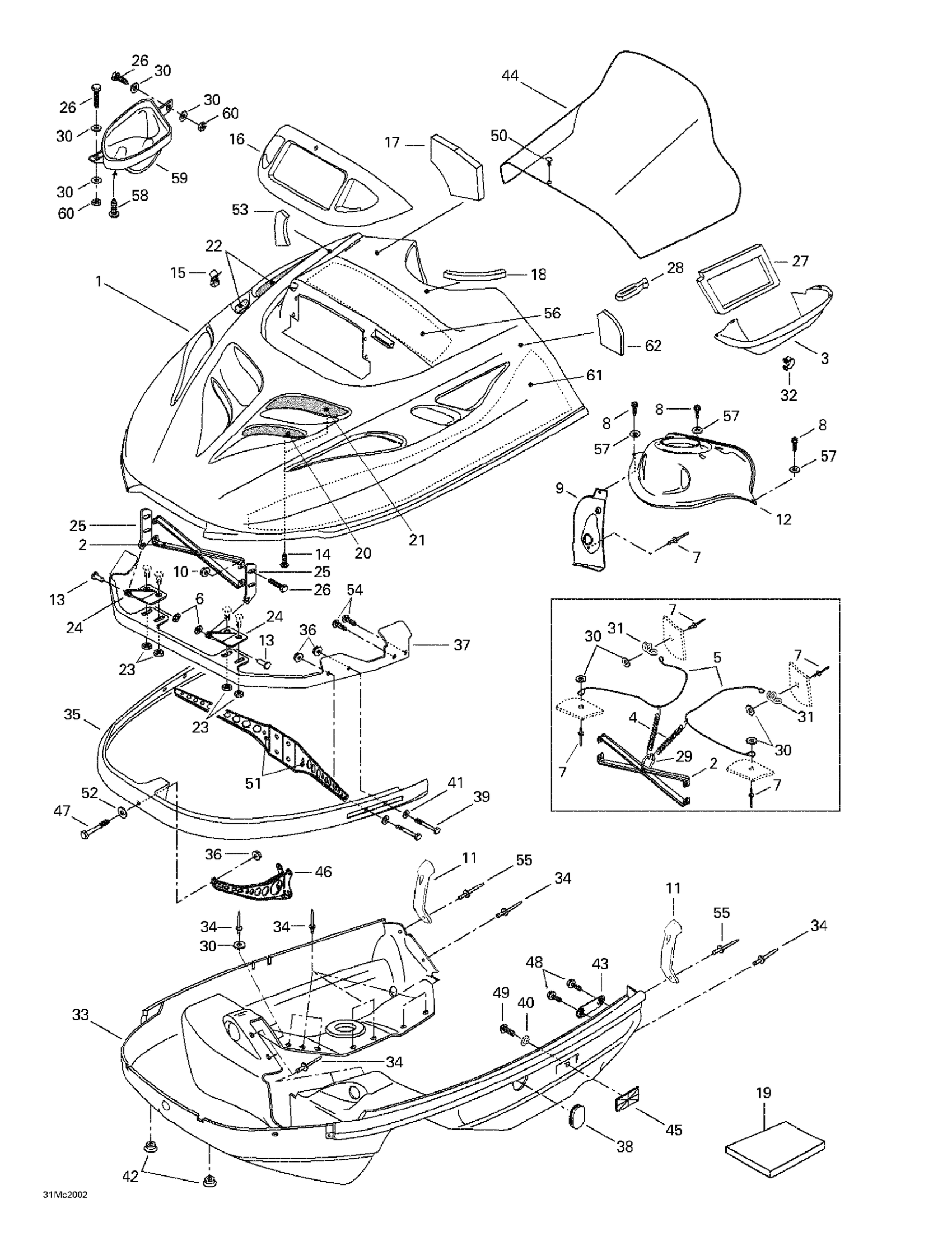

2000 Ski-Doo MX Z 440 Cab, Console Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Cab (Yellow) | MX Z 380 F.

517302201

—
Out of stock

2

Hood Reinforcement

517278100

—
Out of stock

3

Air Deflector

509000058

—
Out of stock

4

Spring

414763300

—
Out of stock

5

RETAINER CABLE - Call your local BRP dealership

415093900

—
Out of stock

6

Push Nut

389804300

2
Out of stock

7

Pop Rivet 3/16" | DS 650 X

293150104

5
Out of stock

8

Forming Screw M5 x 16

250000676

3
Out of stock

9

Handle Dash | MX Z 380 F.

572052101

—
Out of stock

10

Hex. Flange Elastic Nut M5

233251414

4
Out of stock

11

Hood Latch

570027100

2

$9.46

In stock

12

Dash-Switch | Formula S.

517302160

—
Out of stock

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

—
Out of stock

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

—
Out of stock

15

Edge Clip

517302785

4
Out of stock

16

Lamp Moulding

572079200

—
Out of stock

17

Upper Foam

414975000

—
Out of stock

18

Foam

415050900

—
Out of stock

19

Acoustic Foam

414632400

—
Out of stock

Acoustic Foam

414631900

—
Out of stock

20

LH Front Grill

517265903

—
Out of stock

21

LH Upper Grill

517277102

—
Out of stock

22

Side Grill (Black)

517280200

—
Out of stock

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

4
Out of stock

24

Welded Lower Hinge

517289900

—
Out of stock

25

UPPPER HINGE - Call your local BRP dealership

517261100

—
Out of stock

26

6

$0.74

In stock

27

Seal

415036500

—
Out of stock

28

Windshield Latch

570023800

6

$3.58

In stock

29

RING - Call your local BRP dealership

415058300

—
Out of stock

30

Washer

517124300

12
Out of stock

31

Bracket

517262800

—
Out of stock

32

Clip

414479100

4

$1.86

In stock

33

Bottom Pan (Yellow) | MX Z 380 F.

502006574

—
Out of stock

34

Pop Rivet 3/16"

390906800

24

$0.88

In stock

35

Front Bumper

517265400

—
Out of stock

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

5
Out of stock

37

Hinge Bracket

517296600

—
Out of stock

38

Bottom Pan Cap (Yellow) | MX Z 380 F.

570053704

—
Out of stock

39

Hex. Screw M6 X 30

207063044

4

$0.98

In stock

40

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

—
Out of stock

41

Flat Washer

224061121

4
Out of stock

42

—

$4.72

In stock

43

Side Bracket

517267100

—
Out of stock

44

High Windshield

517302106

—
Out of stock

45

REFLECTOR, AMBER - Call your local BRP dealership

414510200

—
Out of stock

46

Front Support

517294500

—
Out of stock

47

Hex. Screw M6 X 40

207064044

1
Out of stock

48

Hex. Flange Screw M6 X 16

210261650

4
Out of stock

49

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

—
Out of stock

50

Black, Dart

414644300

1
Out of stock

51

LH Support

517295000

—
Out of stock

RH Support

517295100

—
Out of stock

52

Flat Washer

224061201

1
Out of stock

53

R.H Rear Foam

414883800

—
Out of stock

55

Pop Rivet 3/16"

390906800

2

$0.88

In stock

56

Center Foam

414985100

—
Out of stock

57

Washer | DS 650 X

391301600

3
Out of stock

58

Tapping Screw

732601292

—
Out of stock

59

Inlet Duct

572097800

—
Out of stock

60

Elastic Stop Nut M5

232551414

2
Out of stock

61

LH Lower Foam

414883500

—
Out of stock

RH Lower Foam

415048700

—
Out of stock

62

LH Rear Foam

414883700

—
Out of stock
