2000 Ski-Doo MX Z 440 Magneto Diagram

← All diagrams

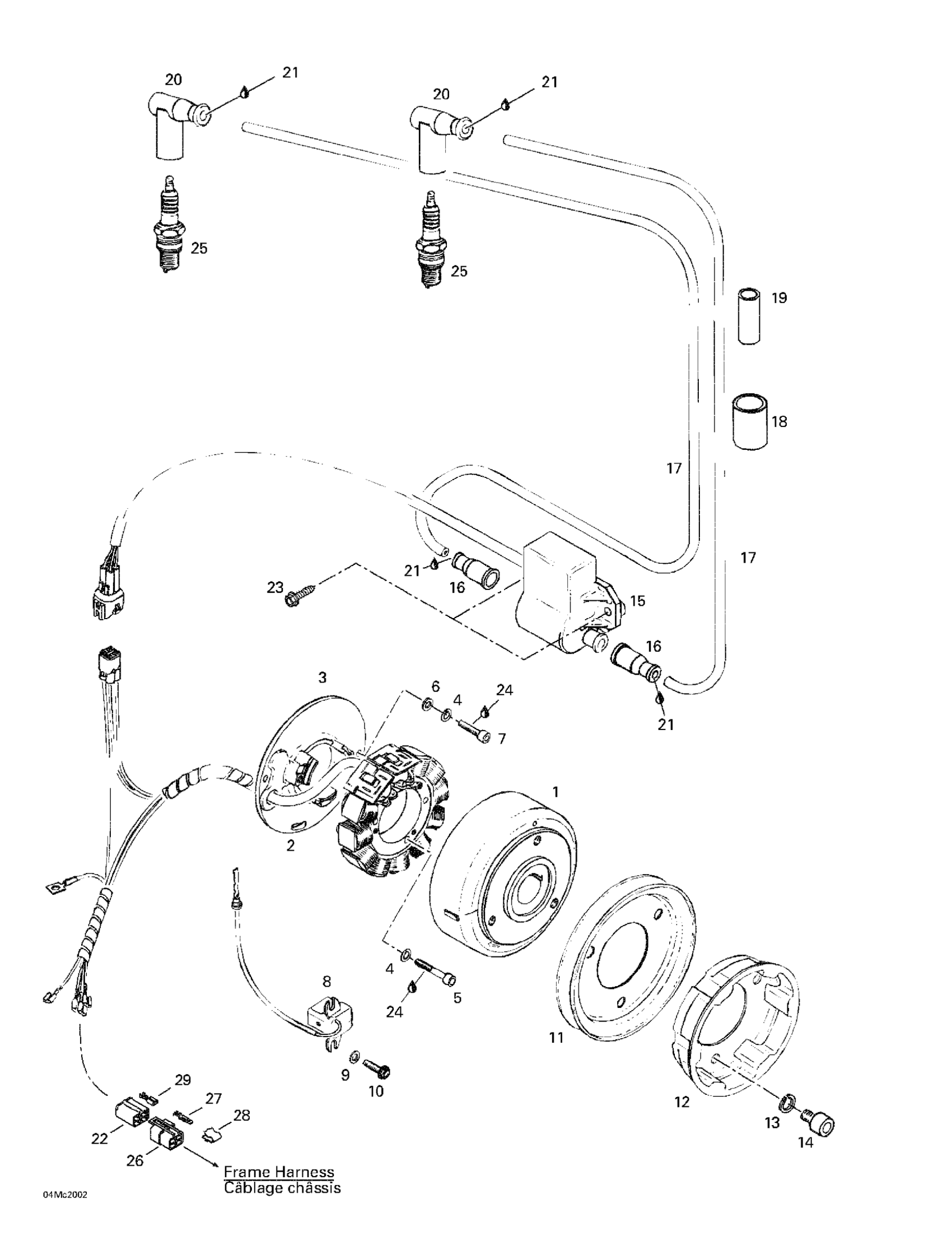

Find the part on the Magneto diagram for your 2000 Ski-Doo MX Z 440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Ski-Doo MX Z 440 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Magneto Ducati 12V240W | Includes 1 - 5. Formula S.

420886255

—
Out of stock

1

M.A.G. Flywheel | Skandic 500F. Skandic 500F (SWT).

420996820

—
Out of stock

2

STATOR PLATE ASS?Y. 12V240W - Call your local BRP dealership | Includes 2 - 5. Skandic 500F. Skandic 500F (SWT).

420886605

—
Out of stock

3

Not Available As Spare Part - Friction Washer

—
Out of stock

4

Lock Washer

420945750

—
Out of stock

5

Socket Head Screw M5 X 30 | Skandic 500F. Skandic 500F (SWT).

420940880

—
Out of stock

6

Washer 5.3

420927574

2
Out of stock

7

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

—
Out of stock

8

PICK-UP ASS?Y - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

420965763

—
Out of stock

9

WASHER - Call your local BRP dealership

420827800

—
Out of stock

10

Taptite Screw M5 X 16

420941928

—
Out of stock

11

V-Belt Pulley

420980486

1

$36.89

In stock

12

Rope Sheave

420852414

1

$28.43

In stock

13

Lock Washer

420845311

3

$1.85

In stock

14

SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership

420841522

—
Out of stock

15

Ignition Module Ass'y | Includes 15 - 21.

515172100

—
Out of stock

15

Ignition Module | Formula S.

415080400

—
Out of stock

16

Protection Cap | Skandic 500F. Skandic 500F (SWT).

410112600

—
Out of stock

17

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

—
Out of stock

18

Tubing | Formula S.

410112800

—
Out of stock

19

Tubing (Meter)

410112900

—
Out of stock

20

SPARK PLUG CAP - Call your local BRP dealership

278000237

2
Out of stock

21

1

$37.66

In stock

22

FEMALE HOUSING - Call your local BRP dealership

409204900

—
Out of stock

23

Screw-hex.taping 12

365901400

—
Out of stock

24

Loctite 243, 10 ml

293800060

1
Out of stock

26

MALE HOUSING - Call your local BRP dealership

409209300

—
Out of stock

27

MALE TERMINAL - Call your local BRP dealership

409210000

—
Out of stock

29

FEMALE TERMINAL - Call your local BRP dealership

515175253

—
Out of stock
