2000 Ski-Doo MX Z 440 Frame And Accessories Diagram

← All diagrams

Find the part on the Frame And Accessories diagram for your 2000 Ski-Doo MX Z 440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

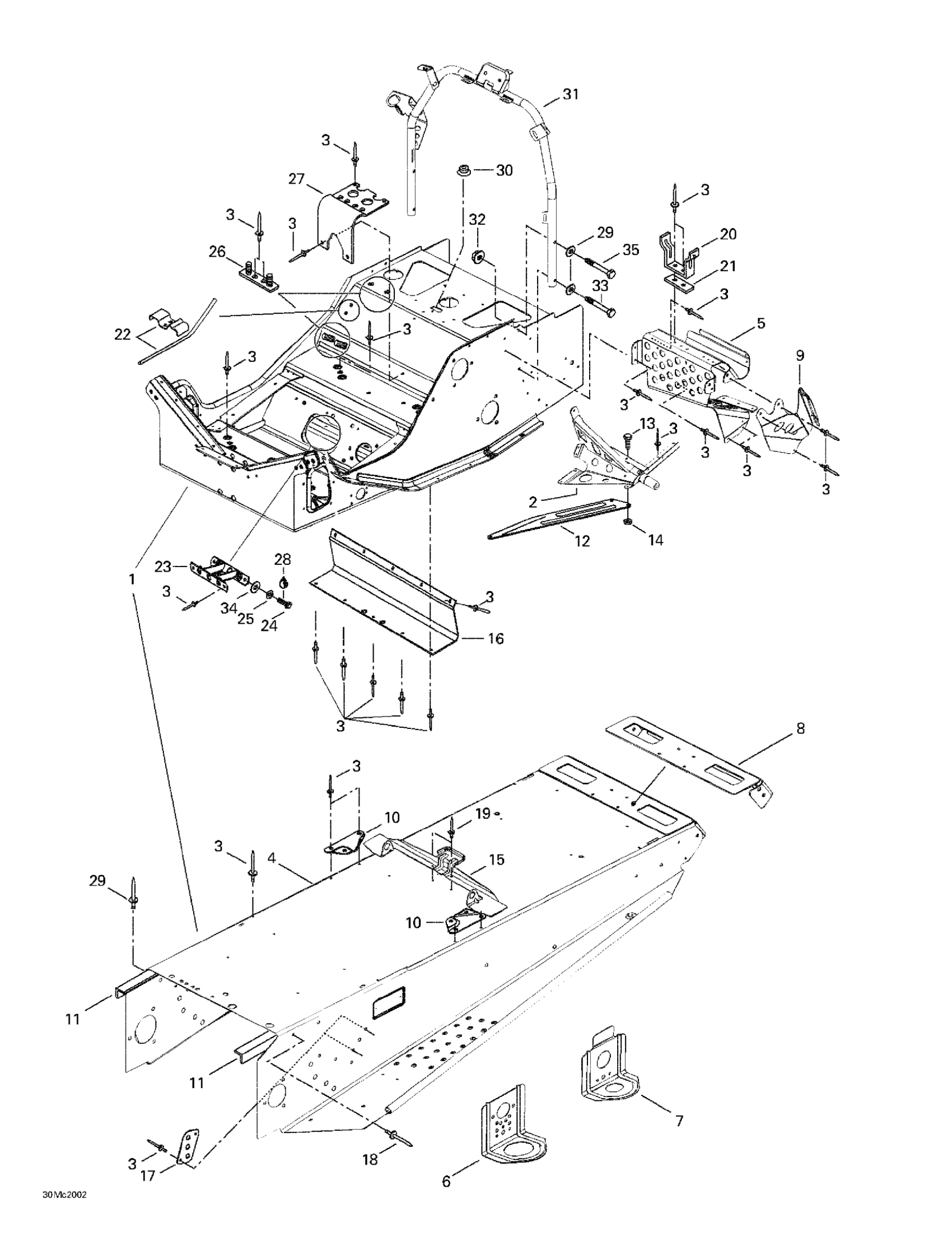

2000 Ski-Doo MX Z 440 Frame And Accessories Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Frame Ass'y | Includes 1 - 18.

518322085

—
Out of stock

2

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

—
Out of stock

RH Footrest Support

518320506

—
Out of stock

3

Pop Rivet 3/16"

390402200

1
Out of stock

4

Tunnel

518322113

—
Out of stock

5

RH Front Footrest

518318933

—
Out of stock

LH Front Footrest

518318934

—
Out of stock

6

Front Bracket

518321495

—
Out of stock

7

Rear Bracket

518308704

—
Out of stock

8

Cap-End

518321301

—
Out of stock

9

Upper Plate L.H

518308714

—
Out of stock

Upper Plate R.H

518308715

—
Out of stock

10

RH Tank Bracket

518321916

—
Out of stock

LH Tank Bracket

518321917

—
Out of stock

11

LH Tunnel Reinforcement

518316713

—
Out of stock

RH Tunnel Reinforcement

518316714

—
Out of stock

12

RH Reinforcement Plate

518321958

—
Out of stock

LH Reinforcement. Plate

518321959

—
Out of stock

13

2

$0.74

In stock

14

Hex. Flange Elastic Nut M5

233251414

2
Out of stock

15

Seat Bracket

518317506

—
Out of stock

16

Deflector

518321867

—
Out of stock

17

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

—
Out of stock

18

Pop Rivet 3/16"

390402300

3

$0.64

In stock

19

Pop Rivet 3/16"

390402400

2

$0.25

In stock

20

Belt Guard Bracket

518202100

1
Out of stock

21

REINFORCEMENT - Call your local BRP dealership

518207500

—
Out of stock

22

Guide Rope

517276100

—
Out of stock

23

Reinf. Plate

518304741

—
Out of stock

24

Hex. Screw M8 X 20

207182044

2
Out of stock

25

Lock Washer 8 mm

234181401

2
Out of stock

26

Support Plate

518315300

—
Out of stock

27

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

—
Out of stock

28

Loctite 271, 10 ml

293800005

1

$20.77

In stock

29

Flat Washer 6 mm

234061410

4

$1.04

In stock

30

—

$2.78

In stock

31

Handle Steering Support

518321428

—
Out of stock

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

4
Out of stock

33

Hex. Screw M6 X 40

207064044

2
Out of stock

34

—

$0.70

In stock

35

Hex. Flange Screw M6 X 35

207063544

2
Out of stock
