2000 Ski-Doo MX Z 440 Steering System Diagram

← All diagrams

Find the part on the Steering System diagram for your 2000 Ski-Doo MX Z 440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

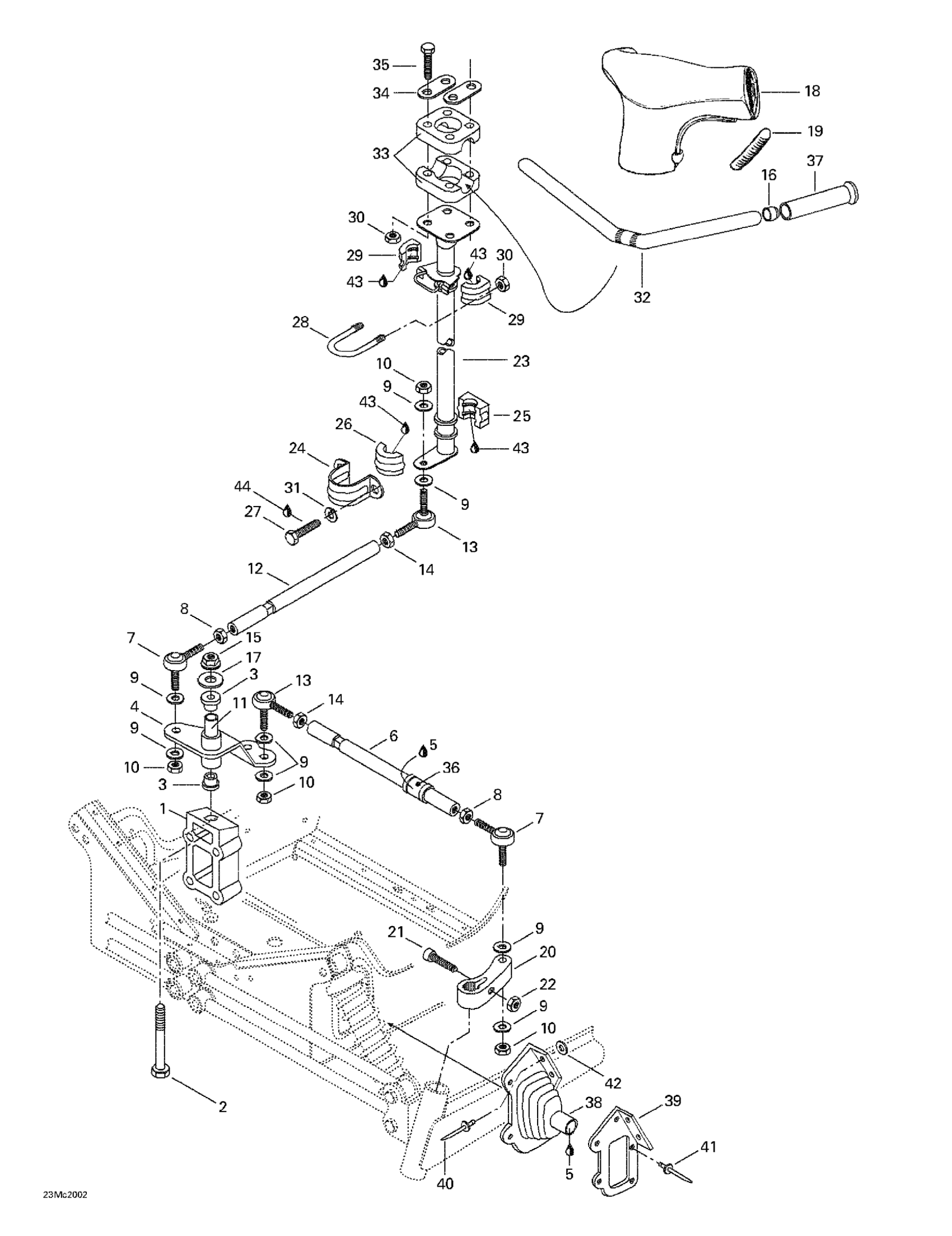

2000 Ski-Doo MX Z 440 Steering System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Block

506121400

—
Out of stock

2

SCREW-HEX.CAP ISO.4014 - Call your local BRP dealership

207028544

—
Out of stock

3

—

$5.52

In stock

4

Pivot Arm

506133800

—
Out of stock

5

Grease, Super Lube

293550030

1

$24.67

In stock

6

Tie Rod

506130200

—
Out of stock

7

RH BALL JOINT - Call your local BRP dealership

506151492

3
Out of stock

8

RH Threaded Hex. Jam Nut M10

732610010

3
Out of stock

9

Washer

503175800

12
Out of stock

10

6

$1.25

In stock

11

Pivot

415038000

—
Out of stock

12

Tie Rod

506110800

—
Out of stock

13

LH JOINT BALL - Call your local BRP dealership

506151845

3
Out of stock

14

3

$0.72

In stock

15

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

—
Out of stock

16

—

$5.35

In stock

17

FLAT WASHER - Call your local BRP dealership

506136400

—
Out of stock

18

Steering Padding

572084100

—
Out of stock

19

Key Way

572072400

—
Out of stock

20

RH Steering Arm

506144800

—
Out of stock

LH Steering Arm

506144900

—
Out of stock

21

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

—
Out of stock

22

Hex. Flange Elastic Nut M8

233281414

2
Out of stock

23

Main Tube

506151114

—
Out of stock

24

Retainer Support

517126200

—
Out of stock

25

Bushing

572064400

—
Out of stock

26

—

$4.58

In stock

27

Hex. Screw M8 X 20

207182044

2
Out of stock

28

U-clamp | X

506060600

1

$15.35

In stock

29

—

$9.22

In stock

30

Hex. Elastic Stop Nut M8

232581414

6
Out of stock

31

Lock Washer 8 mm

234181401

2
Out of stock

32

Handlebar

506125900

—
Out of stock

33

STEERING CLAMP - Call your local BRP dealership

277000142

—
Out of stock

34

Stiffner

709400509

2

$4.43

In stock

35

Hex. Screw M8 X 55

207085544

4
Out of stock

36

BUSHING - Call your local BRP dealership

572036500

—
Out of stock

37

RH Grip 6-1/2"

506151530

2
Out of stock

38

RH Tie Rod Cap

570024800

—
Out of stock

LH TIE ROD CAP - Call your local BRP dealership

570024900

—
Out of stock

39

RH Cap Plate

517241200

—
Out of stock

LH CAP PLATE - Call your local BRP dealership

517241300

—
Out of stock

40

Pop Rivet 3/16"

390906800

4

$0.88

In stock

41

Pop Rivet 3/16"

390402200

10
Out of stock

42

Washer

517124300

4
Out of stock

43

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

—
Out of stock

44

Loctite 271, 10 ml

293800005

1

$20.77

In stock
