2000 Ski-Doo MX Z 440 Rear Arm Diagram

← All diagrams

Find the part on the Rear Arm diagram for your 2000 Ski-Doo MX Z 440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

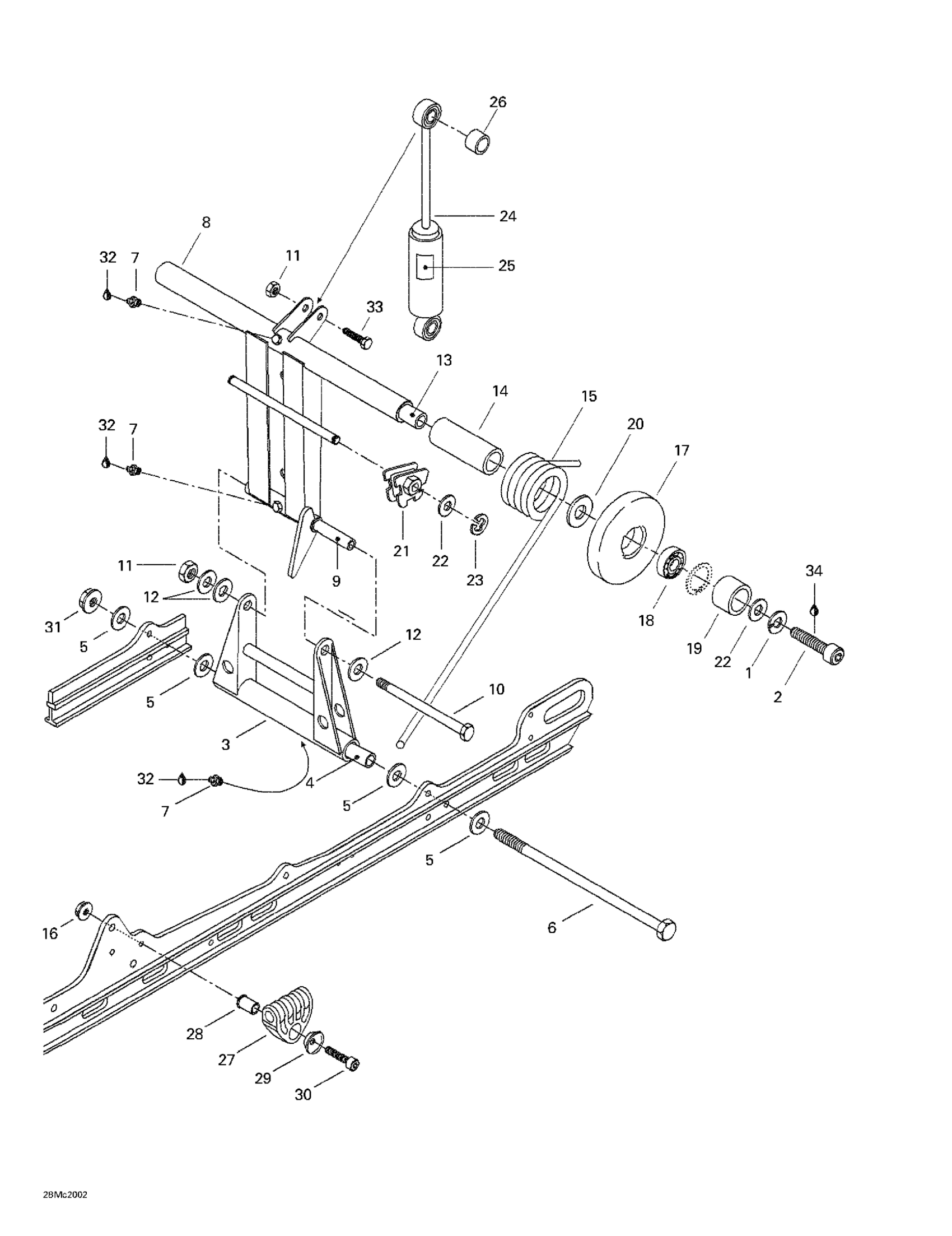

2000 Ski-Doo MX Z 440 Rear Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

2

$0.92

In stock

2

2

$1.39

In stock

3

Pivot Welded Arm

503169200

—
Out of stock

4

Lower Axle Pivot

503154703

—
Out of stock

5

—

$0.70

In stock

6

Bolt M8 X 248mm

503192440

1
Out of stock

7

Grease Fitting

408200700

3
Out of stock

8

Welded Rear Arm

503151200

—
Out of stock

9

Upper Axle, Pivot Arm

503144300

1
Out of stock

10

Bolt M8, Short

732601197

1

$15.06

In stock

11

Hex. Elastic Stop Nut M8

232581414

2
Out of stock

12

Flat Washer 8 mm

234081410

3
Out of stock

13

Transversal Rear Axle

503151400

—
Out of stock

14

Bushing

572047800

—
Out of stock

15

RH Spring (Europe) | MX Z 380 F.

503189354

—
Out of stock

LH Spring (Europe) | MX Z 380 F.

503189355

—
Out of stock

16

Hex. Flange Elastic Nut M8

233281414

2
Out of stock

18

Ball Bearing

405404600

2

$24.58

In stock

19

Spacer

503154200

—
Out of stock

20

Washer

503144900

2
Out of stock

21

LH ADJUST CAM - Call your local BRP dealership

572030800

—
Out of stock

—

$19.20

In stock

22

Flat Washer 10 mm

234001410

4

$0.98

In stock

23

e Circlip

371907100

—
Out of stock

24

Rear HPG Shock Kit (Europe) | Includes 23 - 25. MX Z 380 F.

860305000

—
Out of stock

25

HPG Decal (Europe)

516000182

—
Out of stock

26

CUSHION - Call your local BRP dealership

414802600

—
Out of stock

27

Spring Support

503189657

2
Out of stock

28

Spring Guide Axle

503188934

—
Out of stock

29

CUSHION RETAINER - Call your local BRP dealership

503188929

—
Out of stock

30

2

$0.74

In stock

31

Hex. Flange Elastic Nut M8

233281414

1
Out of stock

32

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

—
Out of stock

33

Hex. Screw M8 X 40

207084044

1
Out of stock

34

Loctite 243, 10 ml

293800060

1
Out of stock
