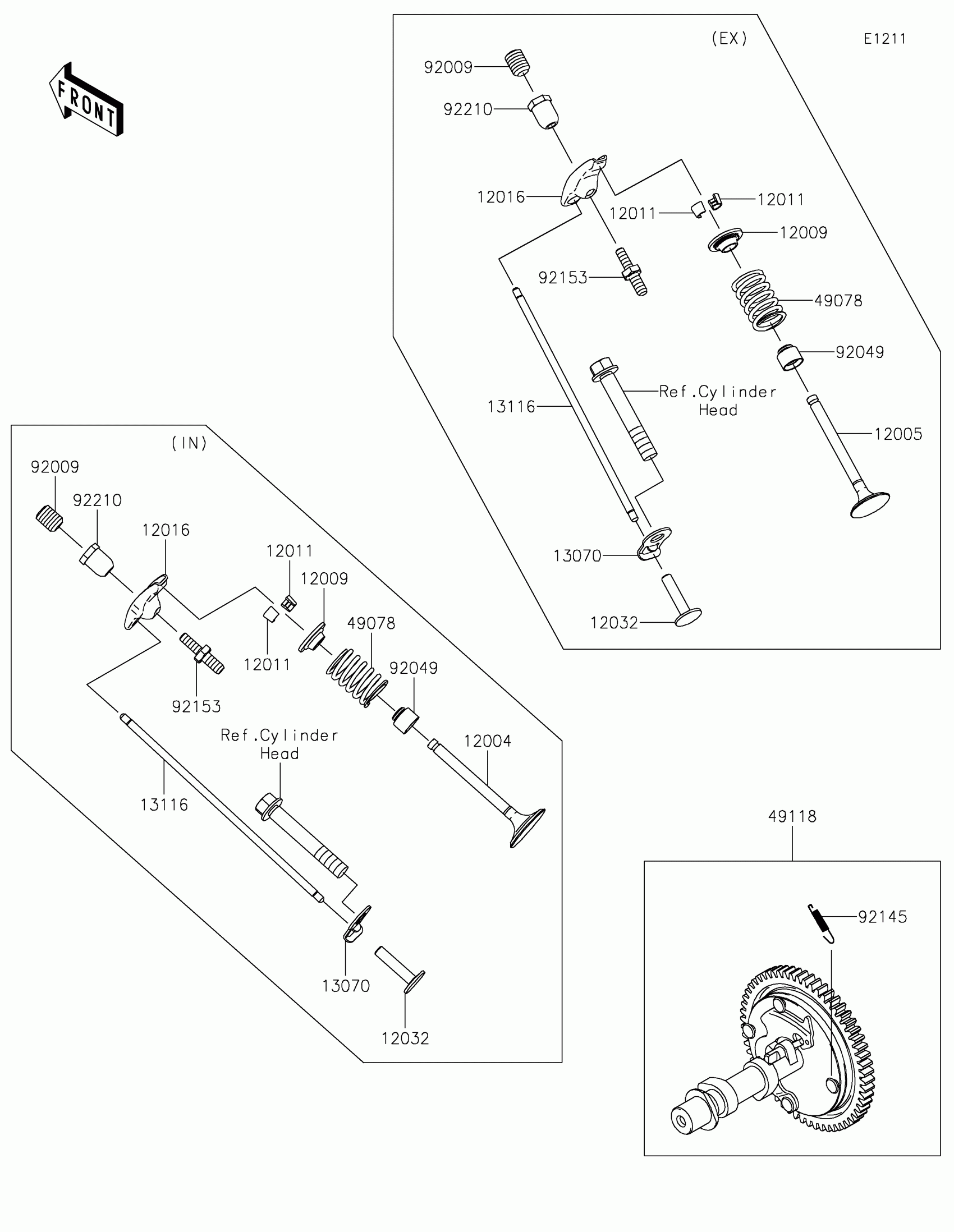

Kawasaki MULE SX™ Valve(s)/Camshaft(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-7004

$12.21

12005

VALVE-EXHAUST

12005-7013

$22.90

12009

RETAINER-VALVE SPRING

12009-7004

$2.12

12011

COLLET

12011-2052

$1.70

12016

ARM-ROCKER

12016-7007

$5.78

12032

TAPPET

12032-7001

$6.40

13070

GUIDE,ROD-PUSH

13070-7012

$2.74

13116

ROD-PUSH

13116-7004

$10.91

49078

SPRING-ENGINE VALVE

49078-7003

$2.14

49118

CAMSHAFT-COMP

49118-0873

$119.42

92009

SCREW

92009-2341

Unavailable

92049

SEAL-OIL,7X15X13

92049-7020

$2.96

92145

SPRING

92145-1653

$1.27

92153

BOLT

92153-7019

$1.52

92210

NUT,M6

92210-7033

$3.77
